Name: Procet 55V DC 60 Watt 10 Gigabit 802.3bt Power over Ethernet Supply
Brand: Procet PoE Systems
SKU: PT-PSE104GB-60-10
Price: 100.05 NZD
Availability: InStock

Procet 55V DC 60 Watt 10 Gigabit 802.3bt Power over Ethernet Supply

PT-PSE104GB-60-10

$100.05

Tax included.

In stock, ready to be shipped

Select quantity

Description

Procet 55V DC 60 Watt 10 Gigabit 802.3bt Power over Ethernet Supply

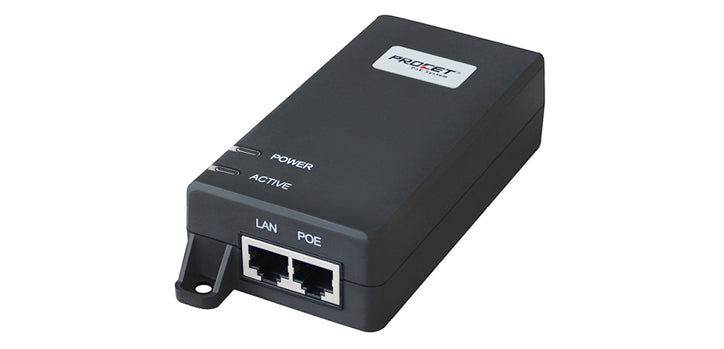

Procet 55V DC 60 Watt 10 Gigabit 802.3bt Power over Ethernet Supply. PT-PSE104GB-60-10 is a single port PoE Injector. It provides 55Vdc, 1.1A power for remote PDs over 4 pairs output. It supports not only 10/100/1000Mbps of data speed, but also 2.5GbE/5GbE NBase-T. It works for 60W PoE PDs, such as wireless APs, Network cameras, IP Phones and other high power Ethernet terminals.

It fully complies to IEEE802.3af/at, PoE++ standard. PT-PSE104GB-60-10 is designed for indoor use. It works with input voltage of 100-240Vac. It has detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.

Features

Input Voltage: 100-240Vac 1.5A 50/60Hz
Output Power: 60W guarantee
PoE++ compliant, backwards compatible with IEEE802.3af/at
10GBit/s, IEEE802.3bz
Power for 802.11ac Wave 2 Access Points, Pan-Tilt-Zoom (PTZ) Cameras and Video-Phones
Compact design, smaller in size: 145.51mm X 65.8mm X 33.5mm
Automatic detection and protection of non-standard devices (Active)
Low power devices receive only the power they need
UL, CE, FCC certificate

Details
Manufacturer's Product Code	PT-PSE104GB-60-10
Input	100-240Vac 1.5A 50/60Hz
Output	55Vdc 1100mA
Power Pins	4/5(+), 7/8(-) & 3/6(+), 1/2(-)
Data Speed	10/100/1000Mbps & 2.5/5/10GbE
Operating Temperature	0degC to 40degC
Operating Humidity	20% to 80%, non-condensation
Storage Temperature	-20degC to 70degC
Storage Humidity	10% to 90%, non-condensation
Operating Altitude	up to 2000meters
Standards	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, IEEE802.3bz 2.5GbE/5/10GbE NBASE-T, Full compliant with IEEE802.3af/at, PoE++, RoHS Compliance, WEEE Compliance
EMI	FCC CFR47 Part 15, EN55024, EN55032
EMS	IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air), IEC61000-4-3(RS) 10V/m(80MHz~2GHz), IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV, IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM, IEC61000-4-6(CS) 10V(150kHz~80MHz)
Case	Plastic
Colour	Black
Mounting	Wall-mounted
IP Rated	IP40
Size	145.51mm X 65.8mm X 33.5mm
Weight	255g

Details
Power Cord	NZ 3 Pin Power Lead included

Warranty

1 Year

Brand

Procet PoE Systems

Restock ETA (if applicable)

Product Details

Specifications

Procet PoE Systems
HeadingProcet 55V DC 60 Watt 10 Gigabit 802.3bt Power over Ethernet Supply

Description

Procet 55V DC 60 Watt 10 Gigabit 802.3bt Power over Ethernet Supply

Features

Input Voltage: 100-240Vac 1.5A 50/60Hz
Output Power: 60W guarantee
PoE++ compliant, backwards compatible with IEEE802.3af/at
10GBit/s, IEEE802.3bz
Power for 802.11ac Wave 2 Access Points, Pan-Tilt-Zoom (PTZ) Cameras and Video-Phones
Compact design, smaller in size: 145.51mm X 65.8mm X 33.5mm
Automatic detection and protection of non-standard devices (Active)
Low power devices receive only the power they need
UL, CE, FCC certificate

Details
Manufacturer's Product Code	PT-PSE104GB-60-10
Input	100-240Vac 1.5A 50/60Hz
Output	55Vdc 1100mA
Power Pins	4/5(+), 7/8(-) & 3/6(+), 1/2(-)
Data Speed	10/100/1000Mbps & 2.5/5/10GbE
Operating Temperature	0degC to 40degC
Operating Humidity	20% to 80%, non-condensation
Storage Temperature	-20degC to 70degC
Storage Humidity	10% to 90%, non-condensation
Operating Altitude	up to 2000meters
Standards	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, IEEE802.3bz 2.5GbE/5/10GbE NBASE-T, Full compliant with IEEE802.3af/at, PoE++, RoHS Compliance, WEEE Compliance
EMI	FCC CFR47 Part 15, EN55024, EN55032
EMS	IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air), IEC61000-4-3(RS) 10V/m(80MHz~2GHz), IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV, IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM, IEC61000-4-6(CS) 10V(150kHz~80MHz)
Case	Plastic
Colour	Black
Mounting	Wall-mounted
IP Rated	IP40
Size	145.51mm X 65.8mm X 33.5mm
Weight	255g
