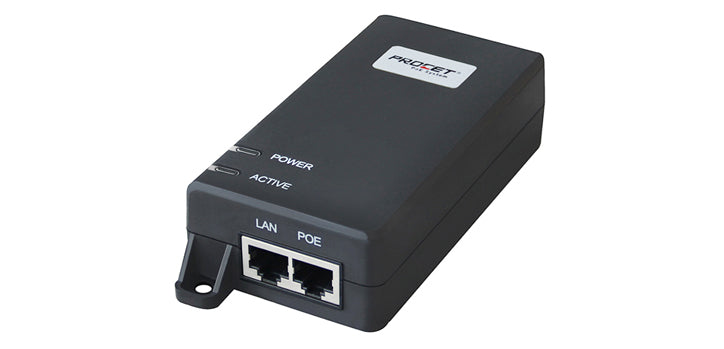

Procet 55V DC 30 Watt Gigabit 802.3af/at Power over Ethernet Supply

Procet 55V DC 30 Watt Gigabit 802.3af/at Power over Ethernet Supply

PT-PSE101G-AT

$47.15

Tax included.

In stock, ready to be shipped
Select quantity
Description
55V DC 30 Watt Gigabit 802.3af/at Power over Ethernet Supply
Procet 55V DC 30 Watt Gigabit 802.3af/at Power over Ethernet Supply. It provides 55Vdc, 0.55A power for remote PDs over 2-pairs. It supports both 10/100 Base-T and Gigabit device. It works for 30W PoE PDs, such as wireless APs, Network cameras, IP Phones and other high power Ethernet terminals. It fully complies to IEEE802.3at PoE standard and backward compatible with IEEE802.3af terminals. The PT-PSE101G-AT is designed for indoor use. It works with input voltage of 100-240Vac. It has detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.
Features
  • Output: 55Vdc 550mA 30W
  • Transmission Rate: 10/100/1000Mbps
  • Power Pin:4/5(+),7/8(-)
Details
Manufacturer's Product Code PT-PSE101G-AT
Standards IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, Full compliant with IEEE802.3af/at, RoHS Compliance, WEEE Compliance
Input 100-240Vac 1.0A 50/60Hz
Output 55Vdc 550mA
Power Pins 4/5(+), 7/8(-)
Data Speed 10/100/1000Mbps
Operating Temperature 0 deg C to 40 deg C
Operating Humidity 20% to 80%, non-condensation
Storage Temperature -20 deg C to 70 deg C
Storage Humidity 10% to 90%, non-condensation
Operating Altitude up to 2000 meters
AC Surge Protection Line-Earth 1.2/50us (8/20us): 2KV, Line-Line 1.2/50us (8/20us): 1KV
Case Plastic
Color Black
Mounting Wall-mounted
IP Rated IP40
Size 140mm X 63mm X 33mm
Weight 205g
Details
Power Cord NZ 3 Pin Power Lead included
Warranty

1 Year

Brand

Procet PoE Systems

Restock ETA (if applicable)

Product Details

Specifications

  • Procet PoE Systems

  • HeadingProcet 55V DC 30 Watt Gigabit 802.3af/at Power over Ethernet Supply

Description
55V DC 30 Watt Gigabit 802.3af/at Power over Ethernet Supply
Procet 55V DC 30 Watt Gigabit 802.3af/at Power over Ethernet Supply. It provides 55Vdc, 0.55A power for remote PDs over 2-pairs. It supports both 10/100 Base-T and Gigabit device. It works for 30W PoE PDs, such as wireless APs, Network cameras, IP Phones and other high power Ethernet terminals. It fully complies to IEEE802.3at PoE standard and backward compatible with IEEE802.3af terminals. The PT-PSE101G-AT is designed for indoor use. It works with input voltage of 100-240Vac. It has detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.
Features
  • Output: 55Vdc 550mA 30W
  • Transmission Rate: 10/100/1000Mbps
  • Power Pin:4/5(+),7/8(-)
Details
Manufacturer's Product Code PT-PSE101G-AT
Standards IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, Full compliant with IEEE802.3af/at, RoHS Compliance, WEEE Compliance
Input 100-240Vac 1.0A 50/60Hz
Output 55Vdc 550mA
Power Pins 4/5(+), 7/8(-)
Data Speed 10/100/1000Mbps
Operating Temperature 0 deg C to 40 deg C
Operating Humidity 20% to 80%, non-condensation
Storage Temperature -20 deg C to 70 deg C
Storage Humidity 10% to 90%, non-condensation
Operating Altitude up to 2000 meters
AC Surge Protection Line-Earth 1.2/50us (8/20us): 2KV, Line-Line 1.2/50us (8/20us): 1KV
Case Plastic
Color Black
Mounting Wall-mounted
IP Rated IP40
Size 140mm X 63mm X 33mm
Weight 205g
Details
Power Cord NZ 3 Pin Power Lead included
Brand

Procet PoE Systems

Warranty

1 Year
