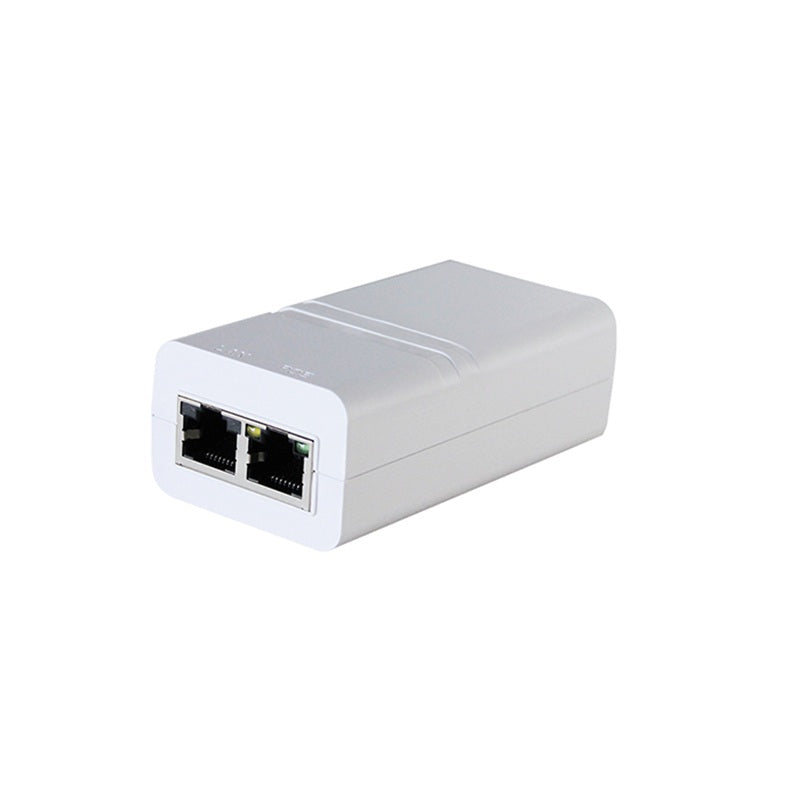

Name: Procet 52V DC 30 Watt 10 Gigabit 802.3af/at PoE+ White Power over Ethernet Injector
Brand: Procet PoE Systems
SKU: EN30GT-10
Price: 56.35 NZD
Availability: InStock

Procet 52V DC 30 Watt 10 Gigabit 802.3af/at PoE+ White Power over Ethernet Injector

EN30GT-10

$56.35

Tax included.

In stock, ready to be shipped

Select quantity

Description

Procet 52V DC 30 Watt 10 Gigabit 802.3af/at PoE+ White Power over Ethernet Injector

Procet 52V DC 30 Watt 10 Gigabit 802.3af/at PoE+ White Power over Ethernet Injector

The Procet EN30GT-10 is an indoor rated active PoE midspan Injector specially designed for complex backhaul and networking applications. It provides 52Vdc, 0.58A power for remote PDs over 2 pairs output.

The Procet EN30GT-10 supports not only 10/100/1000Mbps data speeds, but also 2.5GbE/5GbE/10GbE NBase-T. It works for 30W PoE PDs, such as wireless APs, Wifi routers, Network cameras, Microwave Radios and other powered Ethernet terminals.

It fully complies to the IEEE802.3af/at PoE standard. Enclosed in an IP40 fire retardant plastic case. It works with a wide input voltage of 100-240 VAC, 50 or 60 Hz. It has a detection chip inside, which will detect and classify PD before powering the device. It will not provide power until a standard-compliant PD is detected.

The effective distance is 100 meters over Cat5e/Cat6 cables. It is small in size but high performance.

Features

Input Voltage: 100-240Vac 1.0A 50/60Hz
Output Power: 30W guarantee
IEEE802.3af/at PoE+ compliant
Automatic detection and protection of non-standard devices (Active)

Details
Manufacturer's Code	EN30GT-10
Input	100-240Vac 1.0A 50/60Hz
Output	52Vdc 580mA
Power Pins	4/5(+), 7/8(-)
Data Speed	10/100/1000Mbps & 2.5/5/10GbE
PoE Output	Fully compliant with IEEE802.3af/at PoE standard
Operating Temperature	0? to 40?
Operating Humidity	20% to 80%, non-condensation
Storage Temperature	-20? to 70?
Storage Humidity	10% to 90%, non-condensation
Operating Altitude	up to 2000meters
Other Standards	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, IEEE802.3bz 2.5GbE/5GbE NBASE-T, Fully compliant with IEEE802.3af/at PoE standard, RoHS Compliance, WEEE Compliance
EMI	FCC CFR47 Part 15, EN55032, EN55035
Case Material	Plastic
Color	White
IP Rated	IP40
Size	95.3mm X 51mm X 34.5mm
Weight	135g

Details
Power Cord	NZ 3 Pin Power Lead included

Warranty

1 Year
