Name: Procet 48V DC 15.4 Watt Gigabit 802.3af PoE White Midspan Injector
Brand: Procet PoE Systems
SKU: EN15GF
Price: 34.50 NZD
Availability: OutOfStock

Procet 48V DC 15.4 Watt Gigabit 802.3af PoE White Midspan Injector

EN15GF

$34.50

Tax included.

Out of stock

Select quantity

Description

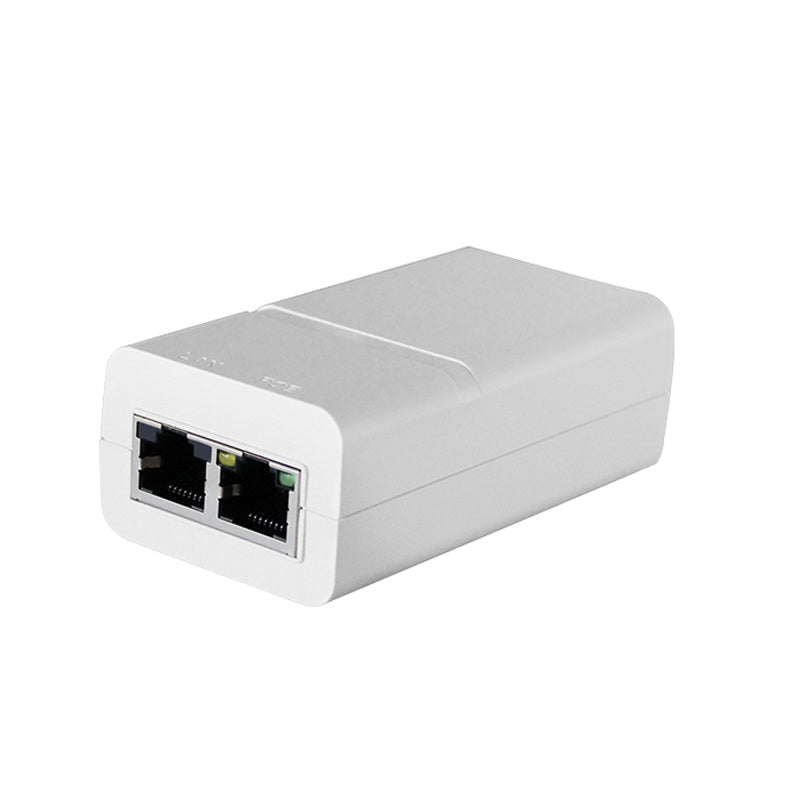

Procet 48V DC 15.4 Watt Gigabit 802.3af PoE White Midspan Injector

Procet 48V DC 15.4 Watt Gigabit 802.3af PoE White Midspan Injector.

The Procet EN15GF is an indoor rated active PoE midspan Injector specially designed for complex backhaul and networking applications. It provides 48Vdc, 0.32A power for remote PDs over 2 pairs output. It supports both 10/100 Base-T and Gigabit devices.

The Procet EN15GF works for 15.4W PoE PDs, such as wireless APs, Wifi routers, Network cameras, IP Phones, Microwave Radio and other power Ethernet terminals. It fully complies to the IEEE802.3af PoE standard.

Enclosed in an IP40 fire retardant plastic case. It works with a wide input voltage of 100-240 VAC, 50 or 60 Hz. It has a detection chip inside, which will detect and classify PD before powering it. It will not provide power until a standard-compliant PD is detected.

The effective distance is 100 meters over Cat5e/Cat6 cables. It is small in size but high performance.

Features

Input Voltage: 100-240Vac 0.5A 50/60Hz
Output Power: 15.4W guarantee
IEEE802.3af / PoE compliant
Automatic detection and protection of non-standard devices (Active)

Details
Manufacturer's Code	EN15GF
Input	100-240Vac 0.5A 50/60Hz
Output	48Vdc 320mA
Power Pins	4/5(+), 7/8(-)
Data Speed	10/100/1000Mbps
PoE Output	Fully compliant with IEEE802.3af PoE standard
Operating Temperature	0? to 40?
Operating Humidity	20% to 80%, non-condensation
Storage Temperature	-20? to 70?
Storage Humidity	10% to 90%, non-condensation
Operating Altitude	up to 2000meters
Other Standards	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, RoHS Compliance, WEEE Compliance
EMI	FCC CFR47 Part 15, EN55032, EN55035
Case Material	Plastic
Color	White
IP Rated	IP40
Size	95.3mm X 51mm X 34.5mm
Weight	135g

Details
Power Cord	NZ 3 Pin Power Lead included

Warranty

1 Year

Brand

Procet PoE Systems
