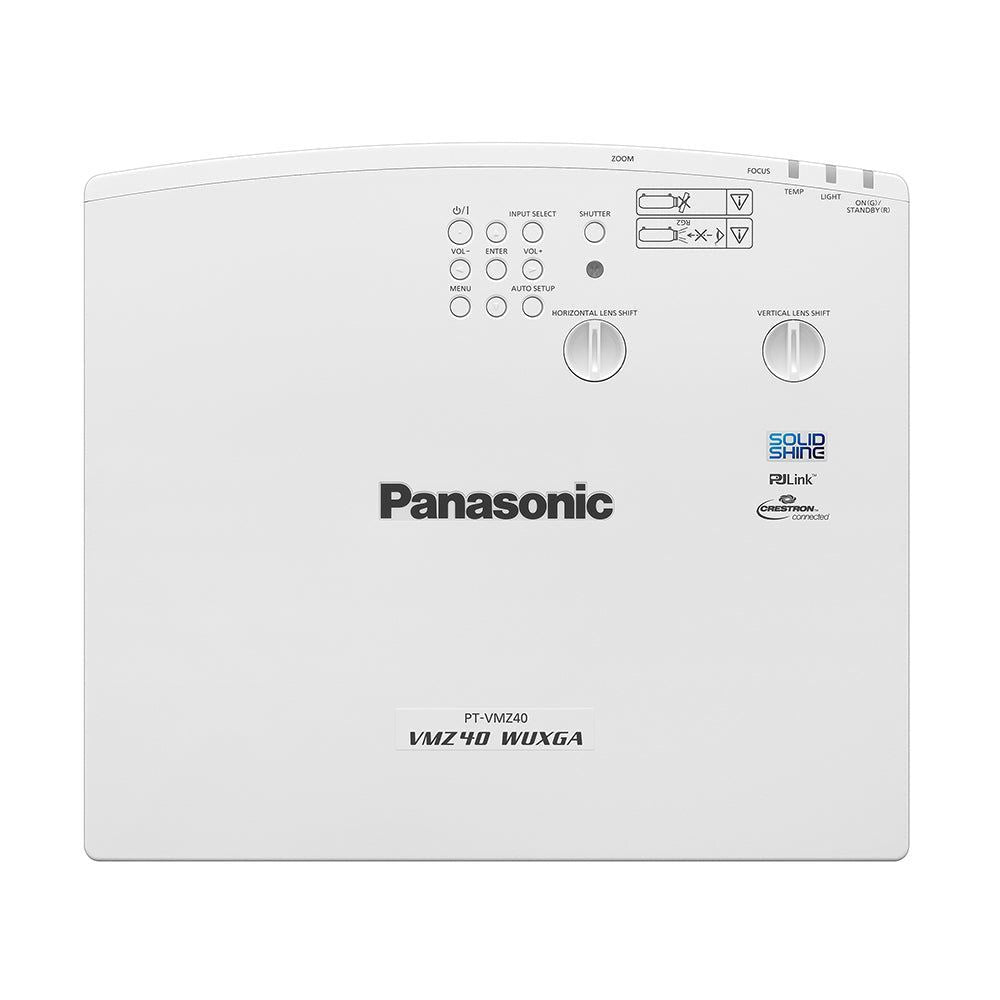

Panasonic PT-VMZ40 4,500 Lumen Compact LCD Laser Portable Projector

PanasonicSKU: PT-VMZ40
filler

Price:
Sale price$3,995.00



Creating the most engaging projection in the smallest spaces

4,500 lm compact and cost-efficient LCD laser projector, designed for long-Lasting brightness and easy installation for education and corporate environments

    Key Features:

    • Laser LCD, 4,500 lumens, WUXGA
    • Compact and lightweight body bringing high brightness dynamic image
    • Long lasting laser light source provide consistent brightness
    • 1.6x zoom and wide horizontal and vertical lens shift for flexible installation
    • Wireless projection capability (optional)

    The world’s smallest and lightest*1 compact design with long and reliable operation

    The VMZ series uses Panasonic’s unique cooling technology, making it the world’s smallest and lightest*1 laser projector range in its lumens category. With a weight of less than 7.2kg (15.87 lbs), the compact body will fit into any room.

    The laser light-source sustains bright images for 20,000 hours, eliminating the replacement hassles and maintenance costs associated with conventional lamps.

    *1 For LCD laser projectors in the 5,000-lumens class or higher with WUXGA resolution as of November 2018.

    1.6 x zoom lens for short throw-distances and enables creation of big images in small places


    The 1.6x zoom lens fully supports short throw-distances (throw ratio: 1.09-1.77:1), best for close-range projection. The VMZ series also achieves more installation flexibility with the Vertical and Horizontal lens-shift, particularly useful in limited spaces.

    Panasonic’s original DIGITAL LINK connection, based on HDBase-T™, enables transmission of video, audio, and control signals through a single LAN cable for distances of up to 150m (492 ft.) for full HD video and 50m (164 ft.) for 4K video, making installation simple and cost-effective with consistently high quality.

    Versatile functions for smooth operation in classes or conferences

    Compared to lamps, the laser light-source cuts the time taken to display images after switching on the projector. Quick Start/Quick Off enables you to project images in just one second from standby, so presentations can start immediately. Panasonic has also developed an original Wireless Projector app that allows users to share documents or images from their own devices no matter where they are sitting, without cable hassle. Other features include a USB Memory Viewer function, which displays stored on USB memory devices without needing a PC, and a built-in 10W speaker.

    Additional features

    Supports 4K signal input for future-ready integration



    Specifications
    Light output*1 4,500 lumens
    Technology Laser LCD
    LCD panel | Panel size (mm) 16 mm diagonal (16:10 aspect ratio)
    LCD panel | Panel size (inch) 0.64 inch diagonal (16:10 aspect ratio)
    LCD Panel | Display Method Transparent LCD panel (x 3, R/G/B)
    LCD Panel | Drive Method Active matrix
    LCD Panel | Pixels 2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels
    Lens 1.6 x Manual zoom (throw ratio 1.09-1.77 :1), F = 1.60-2.12, f = 15.30-24.64 mm
    Light Source Laser diode
    Screen size (diagonal) (mm) 0.76 - 7.62 m, 16:10 aspect ratio
    Screen size (diagonal) (inch) 30-300 in, 16:10 aspect ratio
    Center-to-Corner Uniformity*1 85 %
    Contrast*1 3,000,000:1 (all white/all black) (Input signals:PC,LIGHT POWER:NORMAL,PICTURE MODE:DYNAMIC,DAYLIGHT WIEW:OFF,DYNAMIC CONTRAST:[1],AUTO POWER SAVE:OFF)
    Resolution 1920 x 1200 pixels
    Optical axis shift | Vertical (from center of screen) 0 % - +44 % (Manual)
    Optical axis shift | Horizontal (from center of screen) ± 20% (Manual)
    Keystone correction range*2 Vertical: ±25°, Horizontal: ±35°
    Installation Horizontal/Vertical, free 360-degree installation
    Terminals | HDMI 1/2 IN HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p signal input)
    Terminals | Computer 1 In D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
    Terminals | COMPUTER 2 IN / MONITOR OUT D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) (input/output switching)
    Terminals | Video In Pin jack x 1
    Terminals | AUDIO 1/2 IN M3 stereo mini-jack x 2
    Terminals | AUDIO 3 IN Pin jack (L/R) x 1
    Terminals | Variable Audio Out M3 stereo mini-jack x 1
    Terminals | Serial In D-sub 9-pin x 1 for computer control (RS-232C compliant)
    Terminals | LAN RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ (Class 2)
    Terminals | USB CONNECTOR USB connector (Type A) x 1 for Memory Viewer function, power supply (DC5V, maximum 2A*3), optional wireless module AJ-WM50
    Power Supply AC 100-240 V AC, 50/60 Hz
    Power Consumption TBD
    Built-in Speaker 10 W (monaural)
    Operating noise*1 NORMAL: 37dB, QUIET: 27dB
    Cabinet Materials Molded plastic
    Filter Included Filter cleaning cycle: 20,000 hours  (0.08 mg/m3 of particulate matter), 10,000 hours (0.15 mg/m3 of particulate matter)
    Dimensions (W x H x D) (mm) 399 x 115 x 348 mm (Not including protruding parts)399 x 133 x 348 mm (With feet at shortest position)
    Dimensions (W x H x D) (inch) 15 23/32 x 4 17/32 x 13 11/16 inch (Not including protruding parts)15 23/32 x 5 1/4 x 13 11/16 inch (With feet at shortest position)
    Weight (kg)*4 7.2 kg
    Weight (lbs.)*4 15.87 lbs.
    Operating environment (℃/M) Operating temperature: 0 °C- 45 °C, operating humidity: 20 %-80 % (no condensation)
    Operating environment (°F/Feet) Operating temperature: 32 °F -113 °F, operating humidity: 20 %-80 % (no condensation)
    Applicable software/application Logo Transfer Software, Multi Monitoring & Control Software, Presenter Light for Windows®, Wireless Projector Apps for iOS/Android™
    Note *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.  *2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMALMode, Dynamic Contrast [2], under conditions with 30 °C (86 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output declines to 50 % varies depending on environment.  *3 On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready. *4 Average value. May differ depending on the actual unit.
    Light output 4,500 lumens
