Name: MSI PRO Z790-A MAX WIFI Gaming Desktop Motherboard - Intel Z790 Chipse
Brand: MSI
SKU: PRO Z790-A MAX WIFI
Price: 615.9 NZD
Availability: OutOfStock

MSI PRO Z790-A MAX WIFI motherboard with silver heatsinks and memory slots

MSI PRO Z790-A MAX WIFI motherboard showing rear I/O ports and chipset area

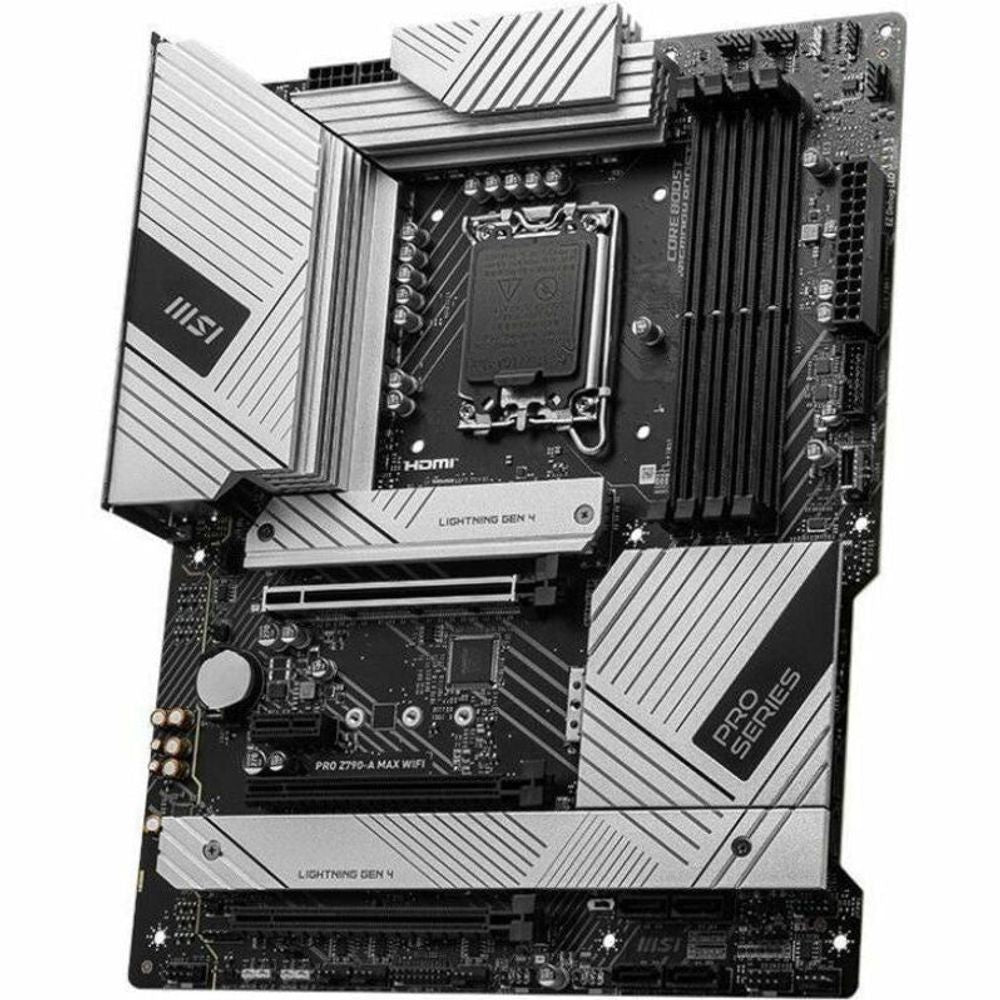

MSI PRO Z790-A MAX WIFI motherboard close-up with CPU socket and expansion slots

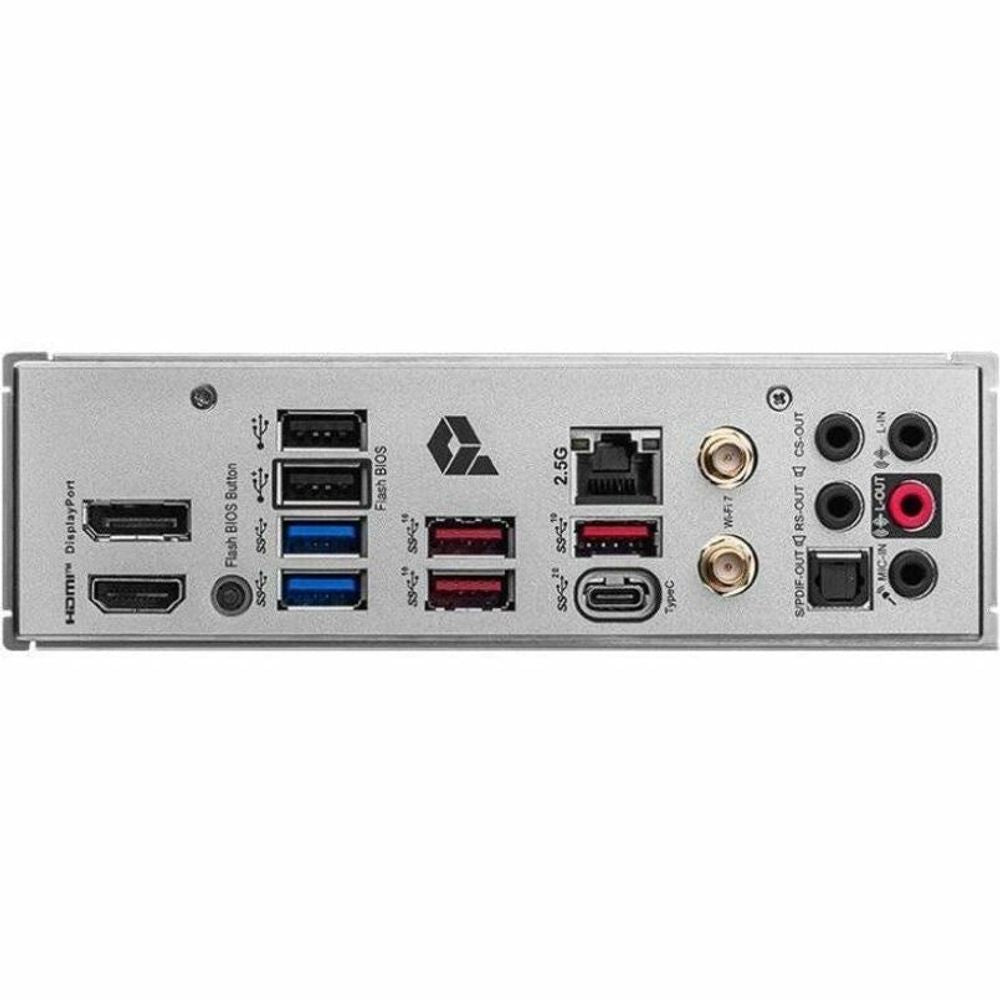

MSI PRO Z790-A MAX WIFI motherboard rear I/O panel with USB and audio ports

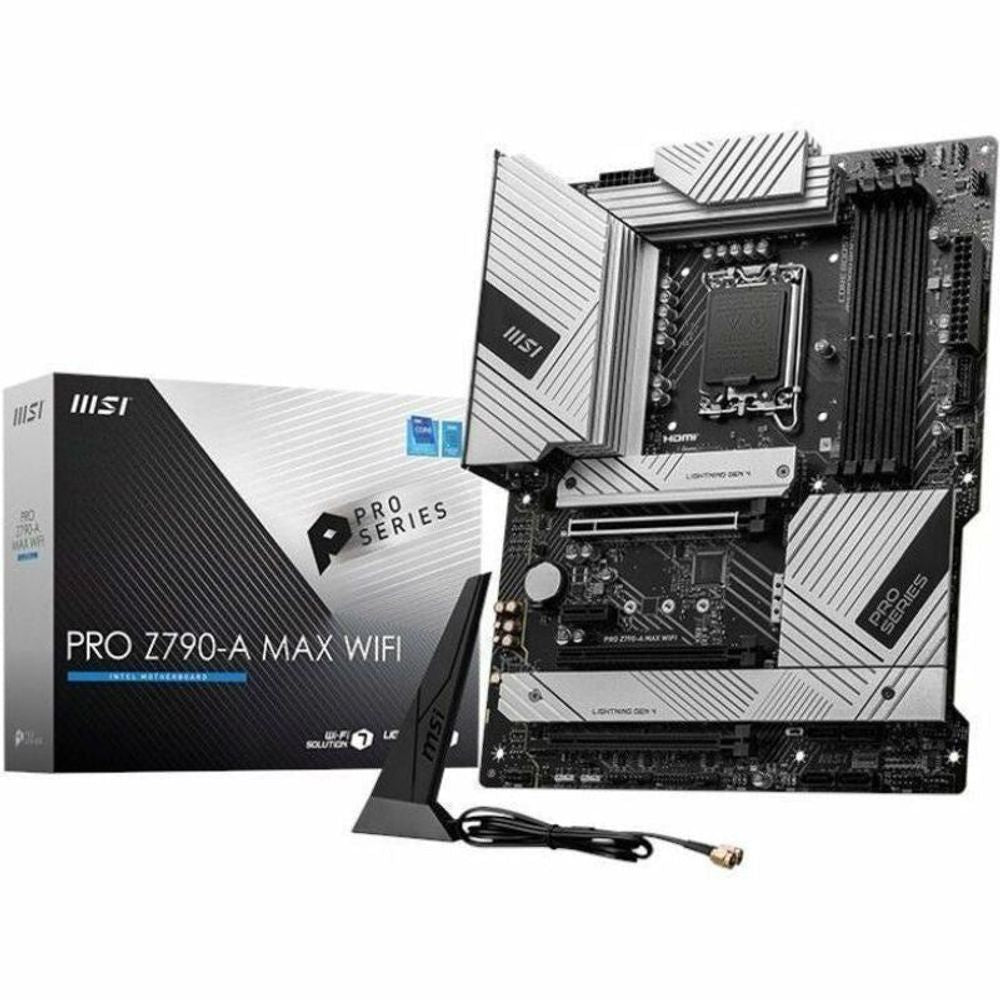

MSI PRO Z790-A MAX WIFI motherboard with retail box and Wi-Fi antenna cable

MSI PRO Z790-A MAX WIFI Gaming Desktop Motherboard - Intel Z790 Chipse

PRO Z790-A MAX WIFI

$615.90

Tax included.

Out of stock

Select quantity

Description

PRO Z790-A MAX WIFI offers a simple design with a harmonious silver color scheme that perfectly matches white and black PC builds. It is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel^®next Gen and 13th Gen Core processors.

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Enlarged Chipset Heatsink

The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.

Features

Compatible Pentium Gold processor lets you perform all your computational tasks at a swift pace
DDR5 SDRAM slot for convenient installation of memory
Supported 0 RAID levels provide data reliability and fault tolerance
IEEE 802.11 a/b/g/n/ac/ax wireless standard support enables a hassle-free peripheral connection
HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX gaming desktop motherboard
With 2 USB 2.0 ports, transfer several documents without error

Specifications

Audio

Audio Channels

7.1

Miscellaneous

Brand Compatibility

Intel

Video

Onboard Video

CPU Dependent Video

Physical Characteristics

Form Factor	ATX
Width	304.8 mm
Depth	243.8 mm

Onboard Interfaces

Number of SATA Interfaces	6
Total Number of Onboard USB Ports	7
Number of Onboard USB 2.0 Ports	4
Number of M.2 Interfaces	4

I/O Controller

RAID Levels	5
	10
	1
	0
Controller Type	Serial ATA/600
RAID Supported	Yes

Network & Communication

Bluetooth	Yes
Gigabit Ethernet	Yes
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard	Bluetooth 5.4
2.5Gigabit Ethernet	Yes

Memory

Maximum Memory Supported	192 GB
Memory Technology	DDR5 SDRAM
Number of Memory Slots	4
Memory Form Factor	DIMM
Memory Form Factor	UDIMM
Memory Speed Supported	5400 MHz
	5600 MHz
	5800 MHz
	6000 MHz
	6200 MHz
	6400 MHz
	6600 MHz
	6800 MHz
	7000 MHz
	7200 MHz
	7400 MHz
	7600 MHz
	7800 MHz
	5200 MHz
	4800 MHz
	5000 MHz

I/O Expansions

Number of PCI Express x1 Slots	1
Number of Total Expansion Slots	4
Number of PCI Express x16 Slots	3
PCI Express Standard	PCI Express 4.0
	PCI Express 3.0
	PCI Express 5.0
Total Number of PCI Express Slots	4

General Information

Product Type	Gaming Desktop Motherboard
Manufacturer Part Number	PROZ790AMAXWIFI
Manufacturer Website Address	http://www.msi.com
Manufacturer	MSI
Product Model	PRO Z790-A MAX WIFI
Product Name	PRO Z790-A MAX WIFI Gaming Desktop Motherboard
Product Series	PRO
Brand Name	MSI

Interfaces/Ports

S/PDIF	Yes
HDMI	Yes
HDMI Version	2.1
Number of Network (RJ-45) Ports	1
DisplayPort	Yes
Total Number of USB Ports	8
Number of USB 2.0 Ports	2
Number of USB 3.2 Gen 1 Type-A Ports	2
Number of USB 3.2 Gen 2 Type-A Ports	3

Processor & Chipset

Processor Supported	Core
	Pentium Gold
	Celeron
Total Processor Supported	1
Processor Socket	Socket LGA-1700
Chipset Manufacturer	Intel
Chipset Model	Z790
Processor Generation Supported	13th Gen
Processor Generation Supported	12th Gen
