Name: MSI PRO B760M-A WIFI Gaming Desktop Motherboard - Intel B760 Chipset -
Brand: MSI
SKU: PRO B760M-A WIFI
Price: 339.5 NZD
Availability: OutOfStock

MSI PRO B760M-A WiFi motherboard with chipset heatsink and RAM/PCIe slots

Motherboard rear I/O panel with USB ports, HDMI, and audio connectors

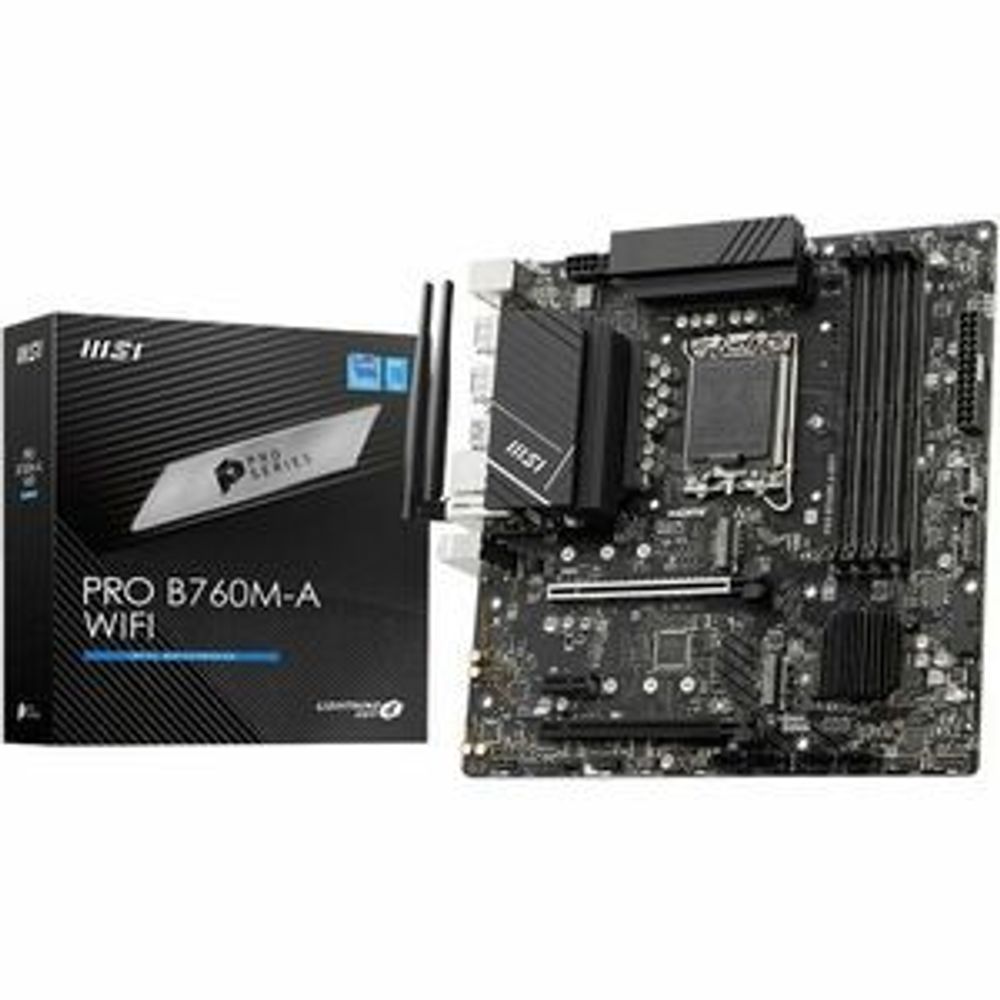

MSI PRO B760M-A WiFi motherboard front view with chipset heatsinks

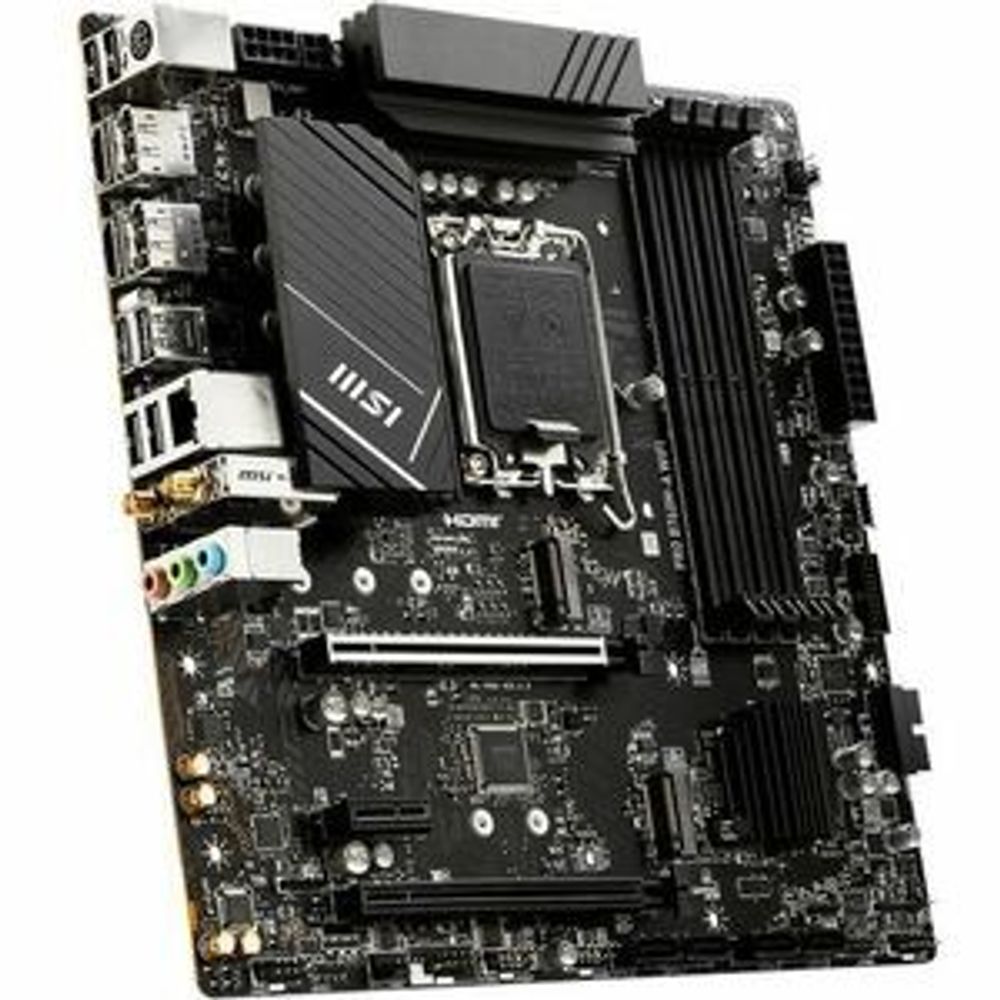

MSI PRO B760M-A WiFi motherboard angled view showing VRM heatsink and expansion slots

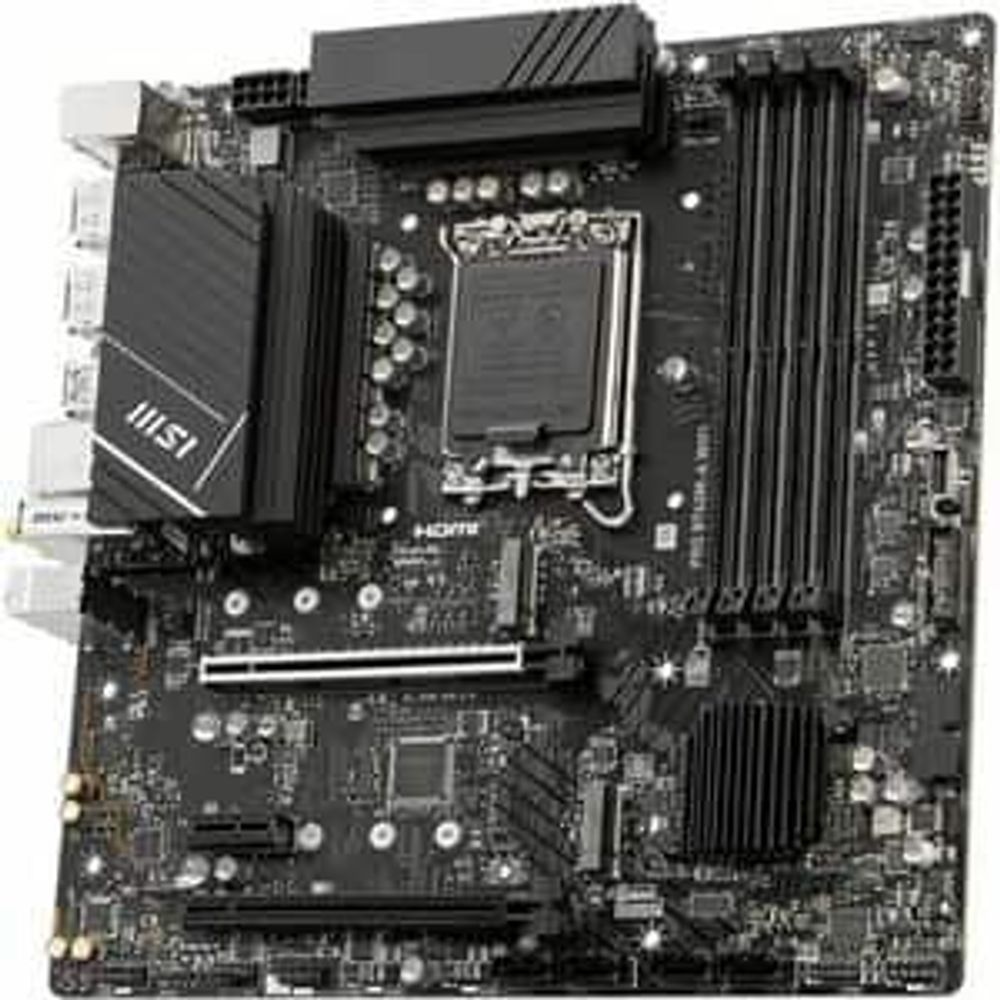

MSI PRO B760M-A WiFi motherboard top view with heatsinks and PCIe slots

MSI PRO B760M-A WIFI Gaming Desktop Motherboard - Intel B760 Chipset -

PRO B760M-A WIFI

9% OFF

$339.50 $376.70

Tax included.

Out of stock

Select quantity

Description

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

Chipset Heatsink

The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Features

Supports 12th/13th Gen Intel®Core™, Pentium®Gold and Celeron®processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specifications

Audio

Audio Channels

7.1

Miscellaneous

Brand Compatibility

Intel

Video

Onboard Video

CPU Dependent Video

Physical Characteristics

Form Factor	Micro ATX
Width	243.8 mm
Depth	243.8 mm

Onboard Interfaces

Number of SATA Interfaces	4
Total Number of Onboard USB Ports	9
Number of Onboard USB 2.0 Ports	4
Number of M.2 Interfaces	2

I/O Controller

RAID Levels	0
	5
	10
	1
Controller Type	Serial ATA/600
RAID Supported	Yes

I/O Expansions

Number of PCI Express x1 Slots	1
Number of Total Expansion Slots	3
Number of PCI Express x16 Slots	2
PCI Express Standard	PCI Express 4.0
PCI Express Standard	PCI Express 3.0
Total Number of PCI Express Slots	3

Memory

Maximum Memory Supported	192 GB
Memory Technology	DDR5 SDRAM
Number of Memory Slots	4
Memory Form Factor	DIMM
Memory Form Factor	UDIMM
Memory Speed Supported	5000 MHz
	4800 MHz
	6000 MHz
	6400 MHz
	6200 MHz
	5200 MHz
	5400 MHz
	6600 MHz
	6800 MHz
	5800 MHz
	5600 MHz

Network & Communication

Bluetooth	Yes
Gigabit Ethernet	Yes
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard	Bluetooth 5.3
2.5Gigabit Ethernet	Yes

General Information

Product Type	Gaming Desktop Motherboard
Manufacturer Part Number	PROB760MAWIFI
Manufacturer Website Address	http://www.msi.com
Manufacturer	MSI
Product Model	PRO B760M-A WIFI
Product Name	PRO B760M-A WIFI Gaming Desktop Motherboard
Product Series	PRO
Brand Name	MSI

Interfaces/Ports

HDMI	Yes
HDMI Version	2.1
Number of Network (RJ-45) Ports	1
DisplayPort	Yes
Total Number of USB Ports	6
Number of USB 2.0 Ports	2
Number of USB 3.2 Gen 1 Type-A Ports	2
Number of USB 3.2 Gen 2 Type-A Ports	2

Processor & Chipset

Processor Supported	Pentium
	Core
	Celeron D
Total Processor Supported	1
Processor Socket	Socket LGA-1700
Chipset Manufacturer	Intel
Chipset Model	B760
Processor Generation Supported	12th Gen
Processor Generation Supported	13th Gen

Warranty

Brand

MSI

Restock ETA (if applicable)

November 25, 2025
