Name: MSI MEG Z790 Ace Intel Z790 Motherboard
Brand: MSI
SKU: MEG Z790 ACE
Price: 1284.9 NZD
Availability: OutOfStock

MSI MEG Z790 Ace gaming desktop motherboard with dual-tone heatsink and PCIe slots

MSI MEG Z790 Ace motherboard close-up of CPU socket and memory slots

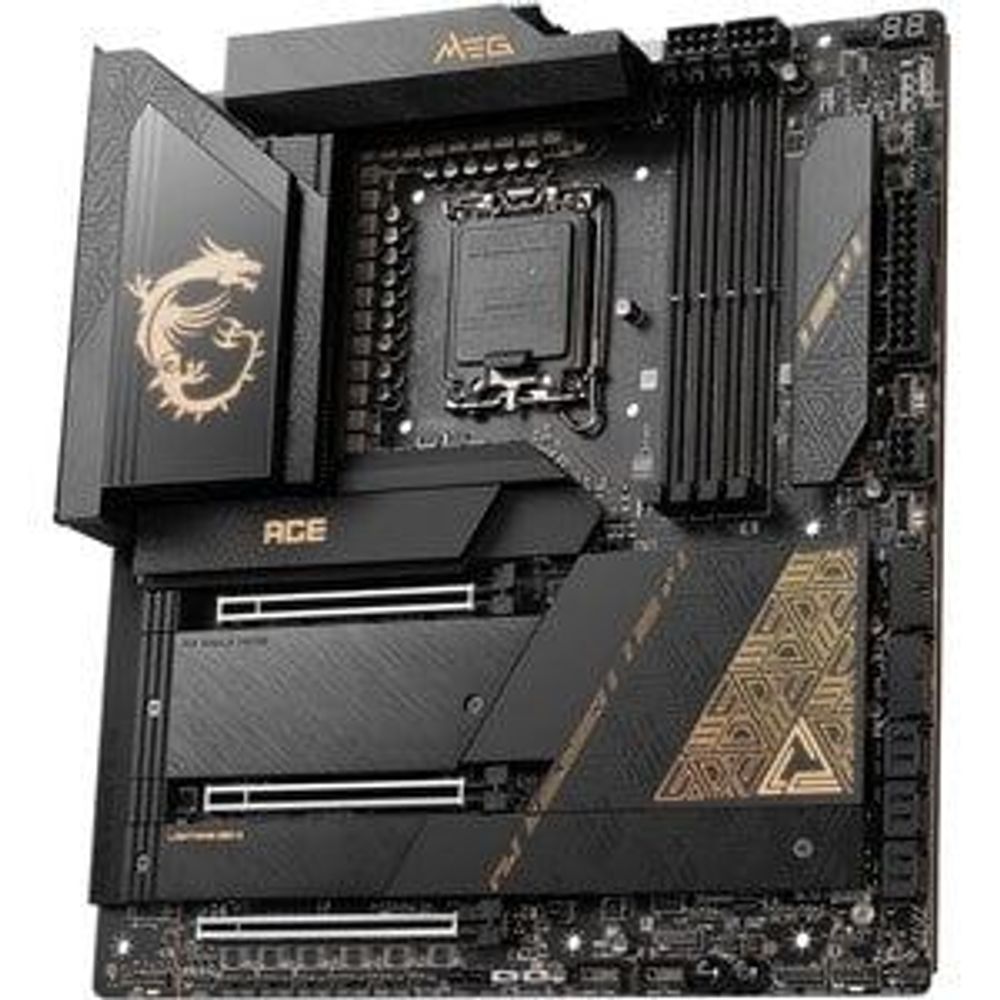

MSI MEG Z790 Ace gaming desktop motherboard with gold dragon emblem

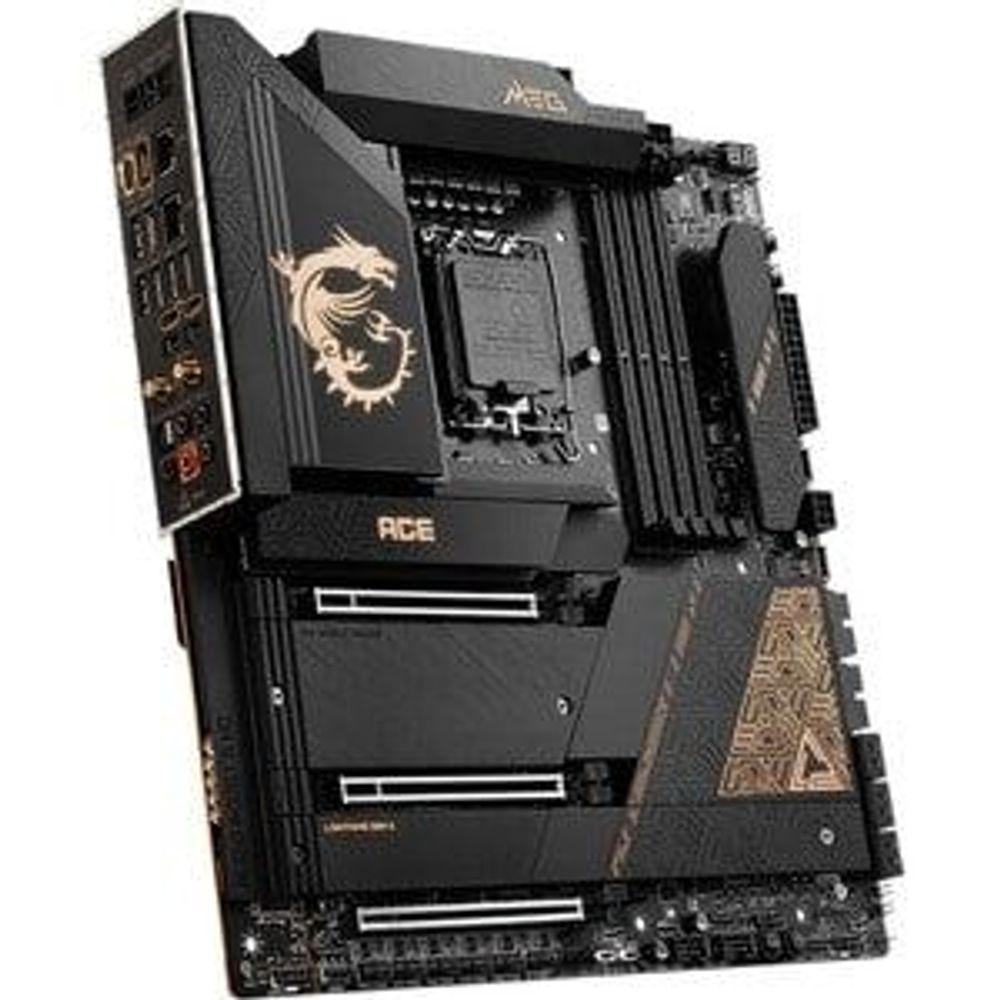

MSI MEG Z790 Ace ATX motherboard angled view of heatsinks and expansion slots

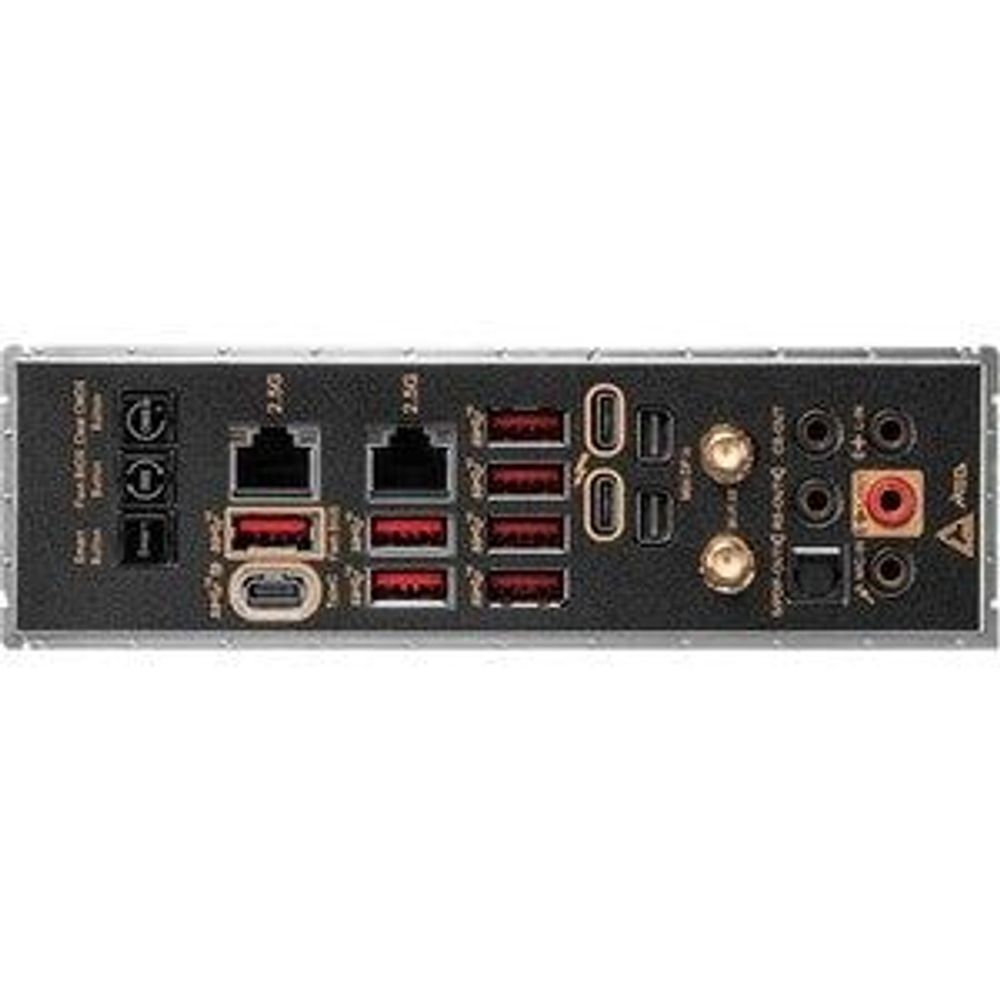

MSI MEG Z790 Ace motherboard rear I/O panel with USB, audio, and network ports

MSI MEG Z790 Ace Intel Z790 Motherboard

MEG Z790 ACE

$1,284.90

Tax included.

Out of stock

Select quantity

Description

Furnished premium aesthetics with its dark black finish and gold embellishes. Developed to unlock the full gaming potential of the latest 13th Gen Intel® Core processor by combining elite hardware system support and premium durability, the MEG Z790 ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking the processor, memory, and graphics card at the highest level.

Stacked Fin Array Design
Stacked fin array design enlarges up to 50% heat dissipation, provides the maximum surface of heat dissipation.
Direct Touch Cross Heat-pipe
The U-shape dual heat-pipe connect three MOS heatsinks to enlarge the surface of heat dissipation.
Double-sided M.2 Shield Frozr
Double-sided M.2 thermal solution keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.
Aluminum Backplate
The aluminum baseplate cool down the MOSFET temperature with dedicated thermal pads.
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
Enlarged PCH Heatsink
MSI replaced the PCH fan with enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.

Features

Compatible Pentium Gold processor lets you perform all your computational tasks at a swift pace
DDR5 SDRAM slot for convenient installation of memory
Supported 10 RAID levels provide data reliability and fault tolerance
IEEE 802.11 a/b/g/n/ac/ax wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Extended ATX gaming desktop motherboard

Specifications

Audio

Audio Channels

7.1

Miscellaneous

Brand Compatibility

Intel

Video

Graphics Controller Manufacturer	AMD
Onboard Video	CPU Dependent Video

Physical Characteristics

Form Factor	Extended ATX
Width	304.8 mm
Depth	277 mm

Onboard Interfaces

Number of SATA Interfaces	6
Total Number of Onboard USB Ports	10
Number of Onboard USB 2.0 Ports	4
Number of M.2 Interfaces	5

I/O Expansions

Number of Total Expansion Slots	3
Number of PCI Express x16 Slots	3
PCI Express Standard	PCI Express 5.0
PCI Express Standard	PCI Express 4.0
Total Number of PCI Express Slots	3

I/O Controller

RAID Levels	10
	5
	0
	1
Controller Type	Serial ATA/600
RAID Supported	Yes

Memory

Maximum Memory Supported	128 GB
Memory Technology	DDR5 SDRAM
Number of Memory Slots	4
Memory Form Factor	UDIMM
Memory Form Factor	DIMM
Memory Speed Supported	5600 MHz
	5400 MHz
	5200 MHz
	5000 MHz
	4800 MHz
	5800 MHz
	6000 MHz
	6200 MHz
	6400 MHz
	6600 MHz
	6800 MHz
	7000 MHz
	7200 MHz
	7400 MHz
	7600 MHz

Network & Communication

Bluetooth	Yes
Gigabit Ethernet	Yes
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Standard	Bluetooth 5.3
2.5Gigabit Ethernet	Yes

General Information

Product Type	Gaming Desktop Motherboard
Manufacturer Part Number	MEG Z790 ACE
Manufacturer Website Address	http://www.msi.com
Manufacturer	MSI
Product Model	Z790 Ace
Product Name	MEG Z790 Ace Gaming Desktop Motherboard
Product Line	MEG
Brand Name	MSI

Interfaces/Ports

S/PDIF	Yes
Number of Network (RJ-45) Ports	2
DisplayPort	Yes
Total Number of USB Ports	8
Thunderbolt	Yes
Number of USB 3.2 Gen 2 Type-C Ports	1
Number of USB 3.2 Gen 2 Type-A Ports	7
Number of Thunderbolt 4 Ports	2

Processor & Chipset

Processor Supported	Core
	Celeron
	Pentium Gold
Total Processor Supported	1
Processor Socket	Socket LGA-1700
Chipset Manufacturer	Intel
Chipset Model	Z790
Processor Generation Supported	12th Gen
Processor Generation Supported	13th Gen

Warranty

Brand

MSI

Restock ETA (if applicable)
