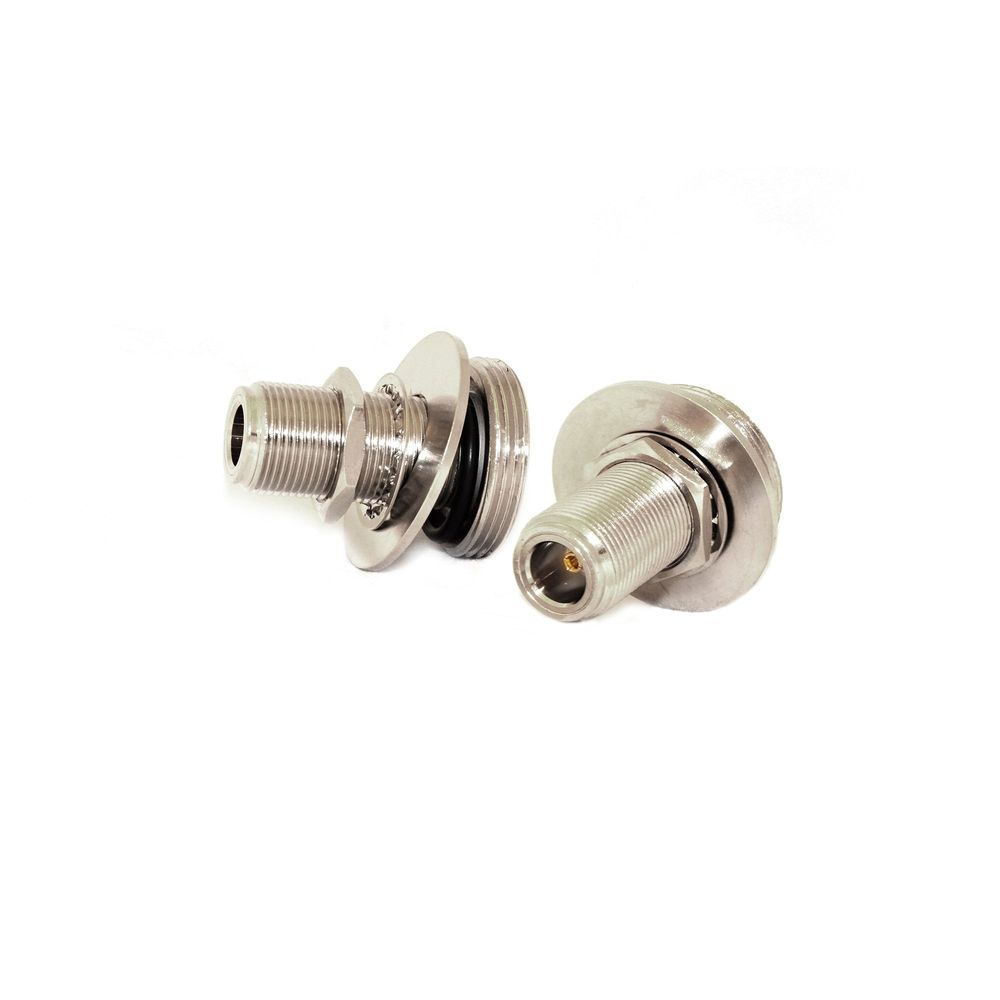

Name: MNT-02 - NMO/TAD Mobile Antenna Mount - N-Female Bulkhead
Brand: L-com
SKU: MNT-02
Price: 56.35 NZD
Availability: InStock

MNT-02 - NMO/TAD Mobile Antenna Mount - N-Female Bulkhead

MNT-02

$56.35

Tax included.

In stock, ready to be shipped

Select quantity

Description

The L-com AXA-AMNFB permanent mobile antenna mount features a standard TAD/NMO Motorola®-type connection. The opposite end of this mount features a N-Female Bulkhead connector. This antenna mount can be installed into panels up to 11/16 inch (17.4mm) thick, making it ideal for use with heavy duty vehicles such as mining and construction vehicles, service vehicles, public transportation as well as marine craft. It can also be used as a ceiling antenna mount. The included o-ring helps protect from moisture.

Features

NMO/TAD to N-Female Bulkhead connector
For panels up to 11/16 in. (17.4mm) thick
Includes o-ring to help protect from moisture

Details
Manufacturer's Product Code	AXA-AMNFB
Mount Type	TAD/NMO Mount
Impedance	50 Ohms
Frequency Range	DC ~ 11 GHz
Voltage Rating	1500 Volts Peak
Dielectic Withstanding Voltage	2500 Volts RMS
Insertion Loss	0.15 dB Max.
Mating	NMO/TAD Threaded Coupling, 5/8-24-UNEF Threaded Coupling
Mating Torque	15 inch pounds (170 N.cm) Max.
Body	Brass
Contact	Gold Plated Brass
Insulator	TFE
Temperature Range	-55C(-67F) to +85C(+185F)
Temperature Cycling	MIL-Std. 202
Weatherproof	Yes
Moisture Resistance	MIL-Std. 202
Corrosion	MIL-Std. 202
Vibration	MIL-Std. 202
Altitude	MIL-Std. 202
RoHS Compliant	Yes

Details
Warranty	Standard 12 Month RTB
