Name: MM2015 - 12V - 30V, 100VA, 6A Multi-Tapped/Dual Type 2170 Transformer
Brand: Powertech
SKU: MM2015
Price: 47.9 NZD
Availability: OutOfStock

Toroidal power transformer with labeled 15V and 12V secondary terminals, metal case

Transformer dimension diagram with front view, side view, and measurement callouts

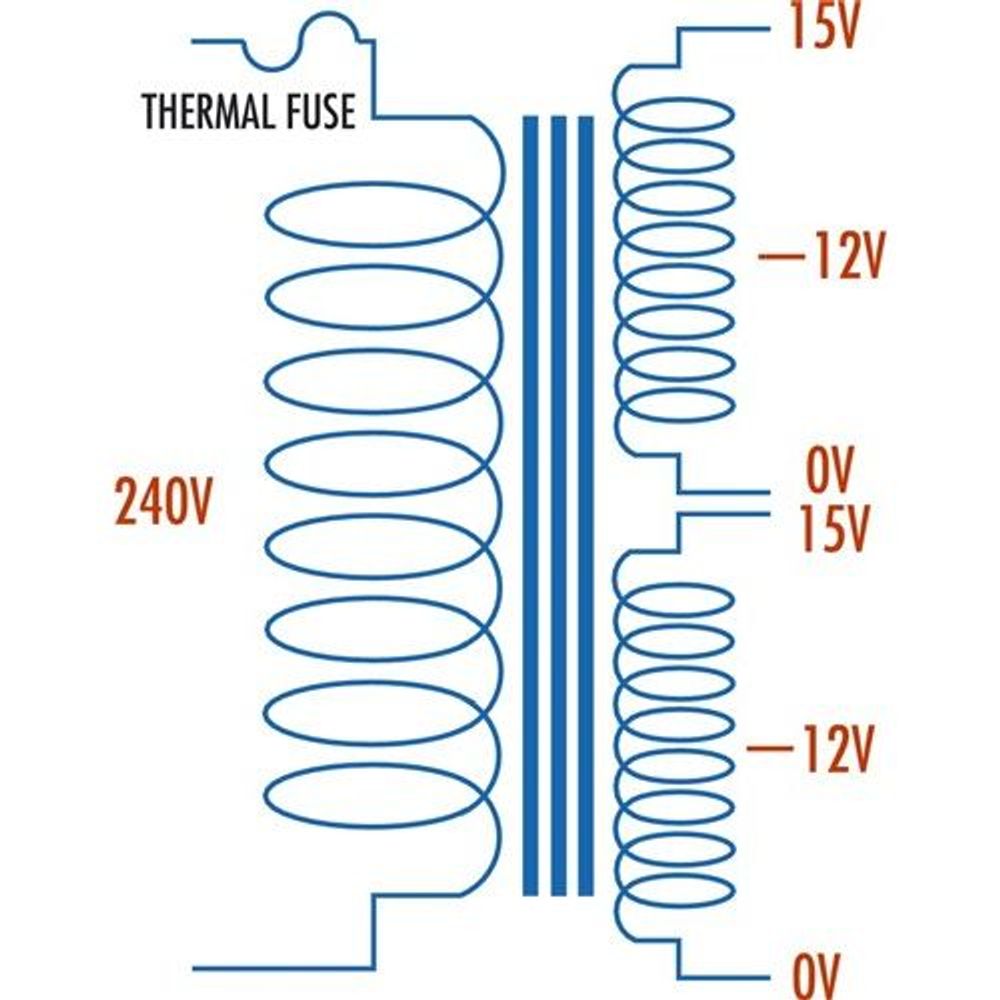

Transformer winding schematic showing thermal fuse and 240V with 15V/12V outputs

MM2015 - 12V - 30V, 100VA, 6A Multi-Tapped/Dual Type 2170 Transformer

MM2015

$47.90

Tax included.

Out of stock

Select quantity

Description

Features

MM2015 240V Mains PowerTraditional laminated iron core transformers suitable for new projects, hobby projects or as a replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.Twin outputs may be wired in series to increase voltage or in parallel (in phase only) to increase current. • Primary Connection: 200mm Fly Leads

Specifications

AC current rating : 3A, 3A

AC Voltage rating : 12V, 12V, 15V, 15V

Weight : 1600g

Mains Voltage Range : 240V

Rated for AU Mains : true

Max Input Power : 100VA

Packaged Volume : 0.78l

Packaged Weight : 1.58kg

Packaged Length : 11.8cm

Packaged Width : 8.2cm

Packaged Height : 8.1cm

Type of Transformer : Laminated Core

Case Type : 2170

Primary Winding Connection : Flyleads

Secondary Winding Connection : Solder Tags

Secondary Winding Configuration : Multi-tapped

Temperature Rise Above Ambient at Rated Power : 70°C

Regulation : 7%

Core Material : Laminated Iron

Magnetising Current : 80mA

Thermal Fuse : true

Mount Spacing (A) : 91mm

Core Winding Depth (D) : 76mm

Case Length (L) : 80mm

Case Width (W) : 44mm

Case Height (H) : 68mm

Type of converter or transformer : laminated/toroidal transformer

Availability : Stocked item
