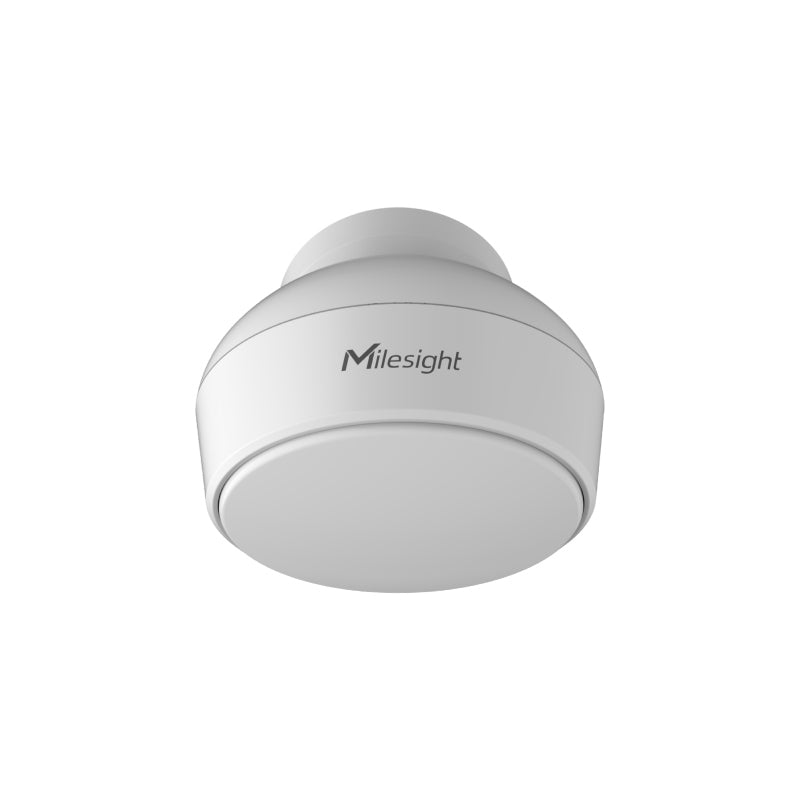

Milesight VS370 Radar Human Presence LoRaWAN Sensor

Milesight VS370 Radar Human Presence LoRaWAN Sensor

VS370-915M

$288.65

Tax included.

11 items available
Select quantity
Description
Milesight VS370 Radar Human Presence LoRaWAN Sensor
The Milesight VS370 is a LoRaWAN® Radar Human Presence Sensor that adopts Millimeter Wave Radar and PIR technology. The sensor can detect human presence or slight movement and provide accurate human mobility statistics. Without any violation of privacy, VS370 has high detection accuracy with remarkable sensitivity, excellent algorithm performance, and exceptional precision. As a Milesight D2D controller, the VS370 seamlessly communicates with other Milesight D2D devices, establishing more possible connections and paving the way for smoother operations. It can also be linked with lighting control and HVAC system to achieve an automated scene deployment where the lights, HVAC system and other associated devices turn on when someone enters the room



. .

Features
  • Detachable and movable magnetic bracket with an additional 30° deflection angle to achieve full area coverage
  • 100% privacy protection, no specific images will be captured
  • Works well even in low-light or completely dark environments with great lighting adaptability
  • supports Milesight D2D protocol to enable ultra-low latency and direct control without gateways
  • supports customized hibernation periods to achieve flexible control to save battery power
  • Easy configuration via NFC and Bluetooth, with support for wireless detection
  • supports management and OTA upgrade via Milesight Development Platform
Details
Manufacturer's Code VS370-915M
Technology Millimeter Wave Radar & PIR
Recognition Rate Up to 99%
Radar Frequency 24GHz
Radar Detection Angle 150 degrees
Radar Detection Distance Movement: 7.5m, Slight Movement:4.8m
PIR Detection Area 110 degrees
PIR Detection Distance Within 7m
Light Status Bright Dim
Protocol LoRaWAN, Milesight D2D
Frequency US915/AU915/KR920/AS923-1&2&3&4
Tx Power 20 dBm (915 MHz)
Sensitivity -137dBm
Mode OTAA/ABP Class A
Configuration NFC or Bluetooth Configuration via Mobile App
Advanced Feature Hibernate Time setting, Sensitivity setting, Milesight D2D Controller
Power Supply 2 x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries for per device
Battery Life Around 5 Years (50 Triggers per day, 25°C)
Operating Temperature 0°C ~ 30°C
Relative Humidity 0% - 95% (Non-condensing)
Dimension 70 × 48.5 mm
Weight Body: 89.6g, Magnetic bracket: 38.2g
Material & Colour White, ABS (UL94 V1)
Installation Wall Mount via Magnetic Bracket
Details
Contains Sensor, Mounting Hardware, QSG
Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

  • Milesight IoT

  • HeadingMilesight VS370 Radar Human Presence LoRaWAN Sensor

Description
Milesight VS370 Radar Human Presence LoRaWAN Sensor
The Milesight VS370 is a LoRaWAN® Radar Human Presence Sensor that adopts Millimeter Wave Radar and PIR technology. The sensor can detect human presence or slight movement and provide accurate human mobility statistics. Without any violation of privacy, VS370 has high detection accuracy with remarkable sensitivity, excellent algorithm performance, and exceptional precision. As a Milesight D2D controller, the VS370 seamlessly communicates with other Milesight D2D devices, establishing more possible connections and paving the way for smoother operations. It can also be linked with lighting control and HVAC system to achieve an automated scene deployment where the lights, HVAC system and other associated devices turn on when someone enters the room



. .

Features
  • Detachable and movable magnetic bracket with an additional 30° deflection angle to achieve full area coverage
  • 100% privacy protection, no specific images will be captured
  • Works well even in low-light or completely dark environments with great lighting adaptability
  • supports Milesight D2D protocol to enable ultra-low latency and direct control without gateways
  • supports customized hibernation periods to achieve flexible control to save battery power
  • Easy configuration via NFC and Bluetooth, with support for wireless detection
  • supports management and OTA upgrade via Milesight Development Platform
Details
Manufacturer's Code VS370-915M
Technology Millimeter Wave Radar & PIR
Recognition Rate Up to 99%
Radar Frequency 24GHz
Radar Detection Angle 150 degrees
Radar Detection Distance Movement: 7.5m, Slight Movement:4.8m
PIR Detection Area 110 degrees
PIR Detection Distance Within 7m
Light Status Bright Dim
Protocol LoRaWAN, Milesight D2D
Frequency US915/AU915/KR920/AS923-1&2&3&4
Tx Power 20 dBm (915 MHz)
Sensitivity -137dBm
Mode OTAA/ABP Class A
Configuration NFC or Bluetooth Configuration via Mobile App
Advanced Feature Hibernate Time setting, Sensitivity setting, Milesight D2D Controller
Power Supply 2 x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries for per device
Battery Life Around 5 Years (50 Triggers per day, 25°C)
Operating Temperature 0°C ~ 30°C
Relative Humidity 0% - 95% (Non-condensing)
Dimension 70 × 48.5 mm
Weight Body: 89.6g, Magnetic bracket: 38.2g
Material & Colour White, ABS (UL94 V1)
Installation Wall Mount via Magnetic Bracket
Details
Contains Sensor, Mounting Hardware, QSG
Brand

Milesight IoT

Warranty

1 Year
