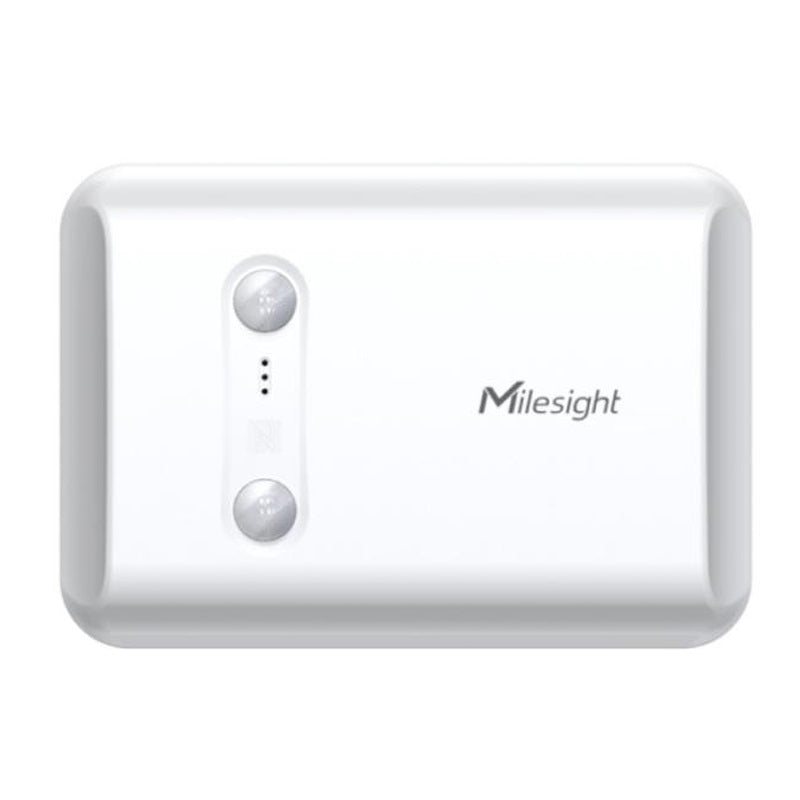

Milesight VS350 LoRaWAN AS923 Dual PIR Passage People Counter

Milesight VS350 LoRaWAN AS923 Dual PIR Passage People Counter

VS350-915M

$282.90

Tax included.

20 items available
Select quantity
Description
Milesight VS350 LoRaWAN AS923 Dual PIR Passage People Counter
Milesight VS350 LoRaWAN AS923 Passage People Counter. With bi-directional detection using dual PIR sensors, the passage people counter brings applicable accuracy and redefines the way you track foot traffic in a cost-effective way.

The VS350 is an exceptional indoor passage people counter that detects and analyzes the flow of people, allowing for optimum space management and usage. Equipped with dual PIR sensors, it offers a high accuracy rate for bi-directional people counting. When combined with the additional temperature sensor, the VS350 can achieve even more potential triggers, increasing its detection capabilities. As a Milesight D2D controller, the VS350 seamlessly communicates with other Milesight D2D devices, establishing more possible connections and paving the way for smoother operations.

With easy configuration and wireless detection, the VS350 facilitates simple deployment and connectivity. Compliant with the Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can know the number of passage people and trigger other sensors or appliances easily via a webpage or mobile App remotely.



. .

Features
  • LoRaWAN Wireless Deployment
  • Flexible Bi-Directional People Counting
  • Cost-Effective Accuracy Performance
  • 100% Anonymous Detection
  • Large Detection Area
  • 4 Years Long Battery Life with High Report Frequency
  • Unique Milesight D2D Communication
  • Device Management & Application Development
Details
Manufacturer's Code VS350-915M
Technology Dual PIR
Installation Height Ceiling Mount: up to 3.0m, Wall Mount: 1.2m - 1.3m
Detection Range Ceiling Mount: Passage Width = 2.8 m ( At the height of 3m), Wall Mount: Passage Width up to 2.3m
Detection Rate Single Person1: Up to 95%, Multiple People: Up to 80%
Best Operating Temperature 15 °C - 32 °C
Bi-directional Counting support
Temperature Measuring Range -30°C - 70°C
Protocol LoRaWAN, Milesight D2D
Frequency US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16 dBm (868 MHz)/19 dBm (470 MHz)/22 dBm (915 MHz)
Sensitivity -137dBm
Mode OTAA/ABP Class A
LED 1 × LED Indicator (Internal)
Button 1 × Reset Button (Internal)
Configuration NFC Configuration via Mobile App
Advanced Feature Data Storage, Data Retransmission, Milesight D2D Controller
Power Supply 2 x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
Battery Life Around 4 Years (10-min Interval, 25°C, 1000 People per Day )
Operating Temperature -20°C - 60°C
Relative Humidity 0% - 95% (Non-condensing)
Ingress Protection IP30
Dimension 100 x 70 x 21 mm ( 3.94 x 2.76 x 0.83in)
Material & Colour PC (Flame Retardant), White
Installation Ceiling Mount, Wall Mount
Regulatory CE, FCC
Environmental RoHS
Details
Contains AI Sensor, Batteries, Warranty Card, QSG
Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

  • Milesight IoT

  • HeadingMilesight VS350 LoRaWAN AS923 Dual PIR Passage People Counter

Description
Milesight VS350 LoRaWAN AS923 Dual PIR Passage People Counter
Milesight VS350 LoRaWAN AS923 Passage People Counter. With bi-directional detection using dual PIR sensors, the passage people counter brings applicable accuracy and redefines the way you track foot traffic in a cost-effective way.

The VS350 is an exceptional indoor passage people counter that detects and analyzes the flow of people, allowing for optimum space management and usage. Equipped with dual PIR sensors, it offers a high accuracy rate for bi-directional people counting. When combined with the additional temperature sensor, the VS350 can achieve even more potential triggers, increasing its detection capabilities. As a Milesight D2D controller, the VS350 seamlessly communicates with other Milesight D2D devices, establishing more possible connections and paving the way for smoother operations.

With easy configuration and wireless detection, the VS350 facilitates simple deployment and connectivity. Compliant with the Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can know the number of passage people and trigger other sensors or appliances easily via a webpage or mobile App remotely.



. .

Features
  • LoRaWAN Wireless Deployment
  • Flexible Bi-Directional People Counting
  • Cost-Effective Accuracy Performance
  • 100% Anonymous Detection
  • Large Detection Area
  • 4 Years Long Battery Life with High Report Frequency
  • Unique Milesight D2D Communication
  • Device Management & Application Development
Details
Manufacturer's Code VS350-915M
Technology Dual PIR
Installation Height Ceiling Mount: up to 3.0m, Wall Mount: 1.2m - 1.3m
Detection Range Ceiling Mount: Passage Width = 2.8 m ( At the height of 3m), Wall Mount: Passage Width up to 2.3m
Detection Rate Single Person1: Up to 95%, Multiple People: Up to 80%
Best Operating Temperature 15 °C - 32 °C
Bi-directional Counting support
Temperature Measuring Range -30°C - 70°C
Protocol LoRaWAN, Milesight D2D
Frequency US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16 dBm (868 MHz)/19 dBm (470 MHz)/22 dBm (915 MHz)
Sensitivity -137dBm
Mode OTAA/ABP Class A
LED 1 × LED Indicator (Internal)
Button 1 × Reset Button (Internal)
Configuration NFC Configuration via Mobile App
Advanced Feature Data Storage, Data Retransmission, Milesight D2D Controller
Power Supply 2 x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
Battery Life Around 4 Years (10-min Interval, 25°C, 1000 People per Day )
Operating Temperature -20°C - 60°C
Relative Humidity 0% - 95% (Non-condensing)
Ingress Protection IP30
Dimension 100 x 70 x 21 mm ( 3.94 x 2.76 x 0.83in)
Material & Colour PC (Flame Retardant), White
Installation Ceiling Mount, Wall Mount
Regulatory CE, FCC
Environmental RoHS
Details
Contains AI Sensor, Batteries, Warranty Card, QSG
Brand

Milesight IoT

Warranty

1 Year
