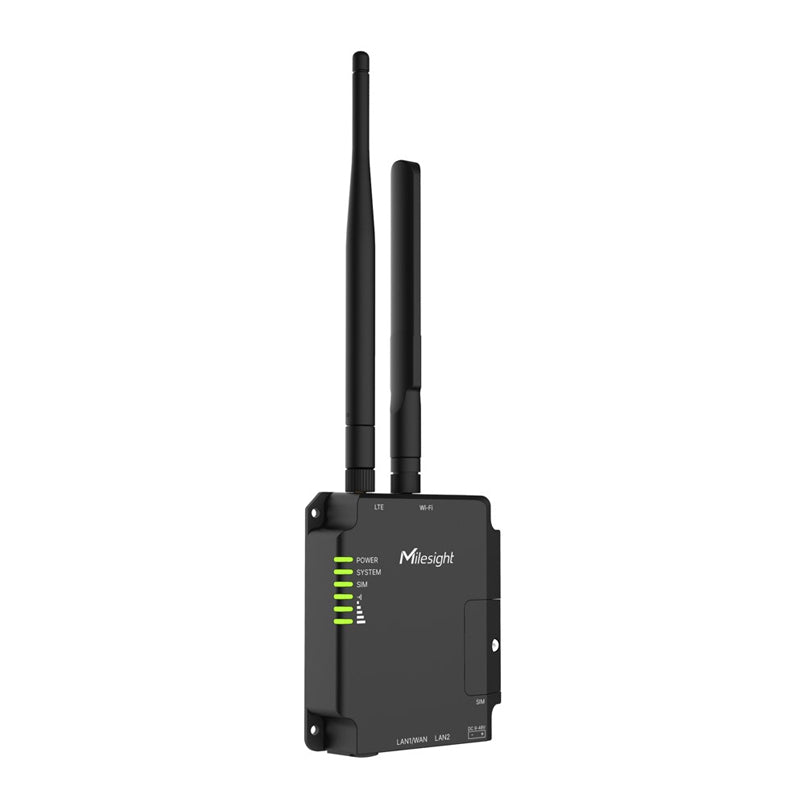

Name: Milesight UR32S 3G/4G/LTE Cellular CCTV Router with Wi-Fi
Brand: Milesight IoT
SKU: UR32S-L04AU-P
Price: 373.75 NZD
Availability: InStock

Milesight UR32S 3G/4G/LTE Cellular CCTV Router with Wi-Fi

UR32S-L04AU-P

$373.75

Tax included.

5 items available

Select quantity

Description

Milesight UR32S 3G/4G/LTE Cellular CCTV Router with Wi-Fi, NXP Processor, IP30 Protection with Metal Housing

Milesight UR32S 3G/4G/LTE Cellular CCTV Router with Wi-Fi, NXP Processor, IP30 Protection with Metal Housing.

By deploying it in practical CCTV projects, Milesight CCTV Router UR32S can achieve a stable and secure connection between on-site surveillance devices and remote side professional installers or technicians. In this way, Milesight cameras and NVRs can be managed in batch easily and remotely in a more secure and efficient way.

Milesight CCTV Router UR32S supports Wi-Fi Client and AP Mode, allowing users to simply connect the router to M-Sight Pro APP. Since all devices connected to the router will be immediately listed on the APP, users can configure the remote access permissions of devices in batch for installers or technicians within a few steps.

Milesight CCTV Router UR32S features global 4G LTE CAT4/3G network with multiple carrier networks, achieving easy global connectivity. Meanwhile, it supports automated failover or failback between Ethernet and cellular with SIM card inserted.

Features

Wi-Fi Client and AP Mode
Global 4G LTE CAT4/3G Network
NXP Processor
IP30 Protection with Metal Housing
VPN (OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE)

Details
Product Code	UR32S-L04AU-P
CPU	ARM Cortex-A7,528 MHz
Memory	128 MB DDR3 RAM and 128MB Flash
Antenna Connector	1 × 50 Ohm SMA Cellular Connector (Center PIN: SMA Female)
SIM Slots	1 (Mini SIM-2FF)
Ethernet	1 × WAN + 1 × LAN (Default) or 2 × LAN 100Mbps
Mode	Full or half duplex (Auto-Sensing)
PoE	2 × 802.3 af/at PoE PSE on LAN Ports (Optional)
Antenna Connector	1 × 50 Ohm Wi-Fi SMA Connector (Center PIN: RP-SMA Female)
Standards	IEEE 802.11 b/g/n,2.4GHz
Tx Power	802.11b: 16 dBm +/-1.5 dBm (11 Mbps), 802.11g: 14 dBm +/-1.5 dBm (54 Mbps), 802.11n: 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7)
Modes	AP or Client mode
Security	WPA/WPA2 authentication, WEP/TKIP/AES encryption
Reset Button	1 × RESET
LED Indicators	1 × POWER, 1 × SYSTEM, 1 × SIM, 3 × Signal strength
Built-in	Watchdog, Timer
Power Connector	2-pin 5.08 mm Terminal Block
Input Voltage	9-48 VDC, with Surge-Protection and Reverse Polarity Protection
Power Consumption	Typical 1.8 W, Max 2.2 W (In Non-PoE mode)
Ingress Protection	IP30
Housing	Metal
Dimension	108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)
Installation	Desktop, Wall or DIN Rail Mounting
Operating Temperature	-40°C to +70°C (-40? to +158?)
Storage Temperature	-40°C to +85°C (-40? to +185?)
Ethernet Isolation	1.5 kV RMS
Relative Humidity	0% to 95% (non-condensing) at 25°C
Regulatory	CE, FCC, RCM
Environmental	RoHS
EMC	EN 55032, EN 55035
EMS	IEC 61000-4-2 Level 3, IEC 61000-4-3 Level 2, IEC 61000-4-4 Level 2, IEC 61000-4-5 Level 2, IEC 61000-4-6 Level 3, IEC 61000-4-8 Level 1, IEC 61000-4-11 Level 3
Radio Frequency	EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413
Safety	EN62368-1
