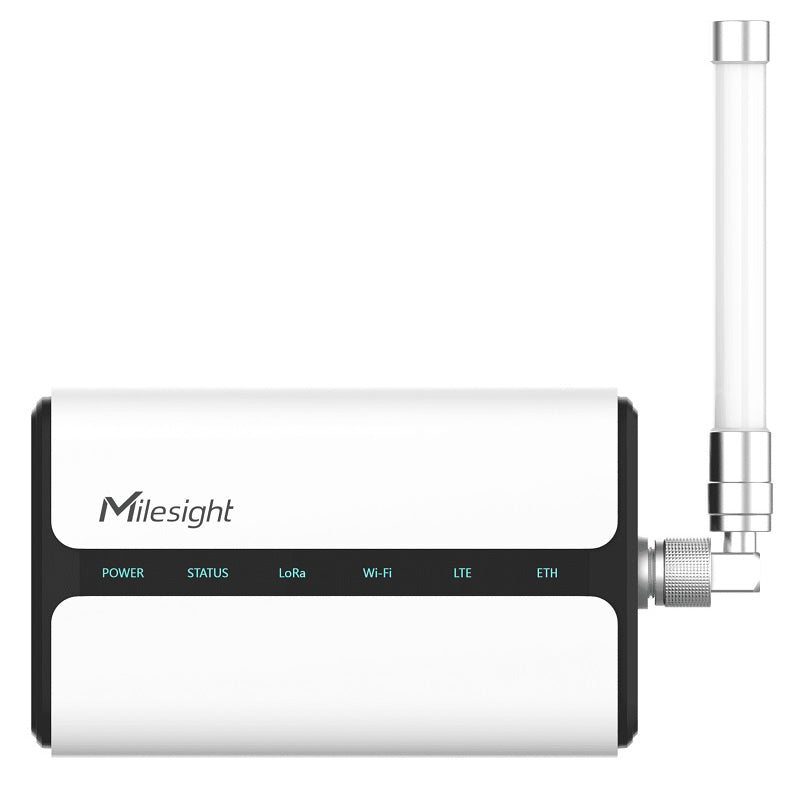

Name: Milesight UG65 Helium compatible LoRaWAN IoT Hotspot with WiFi and PoE Support
Brand: Milesight IoT
SKU: UG65-915M-EA-H32
Price: 2794.50 NZD
Availability: InStock

Milesight UG65 Helium compatible LoRaWAN IoT Hotspot with WiFi and PoE Support

UG65-915M-EA-H32

$2,794.50

Tax included.

In stock, ready to be shipped

Select quantity

Description

Milesight UG65 Helium Compatible LoRaWAN IoT Hotspot with Wi-Fi and PoE Support

The Milesight UG65 is a robust 8-channel indoor AS923 LoRaWAN IoT Gateway, which is compatible with Helium LongFi technology. Adopting the SX1302 LoRa chip, high-performance quad-core CPU and secure crypto chip, the UG65 provides high-efficiency and a reliable connection. The UG65 has line of sight up to 15km and can cover about 2 km in an urban environment, which can cover larger areas and provide connectivity to more than 2000 nodes. Besides the helium mining feature, the UG67 can also work as a normal IoT gateway with mainstream network server support ( TTI, ChirpStack, etc.) and built-in network server and Milesight IoT Cloud for easy deployment

Price includes Hotspot onboarding fee (US$40) and first location assert fee (US$10). Any change of location after initial assert is covered by the user at a cost of US$10.

The UG65 supports multiple back-haul backups with Ethernet, Wi-Fi and cellular connections (Optional).

. .

Features

IP65 Rating
NXP Quad-Core Processor
Semtech SX1302 LoRa Chip
Built-in ECC608 crypto chip
Proof-of-Coverage rewards miners paid in Helium tokens
Multiple Backhaul Connectivity options
Embedded Network Server
Compatible with Multiple Network Servers
Milesight Cloud compliant
supports 2000+ end devices
Easily onboard and monitor 100’s of LoRaWAN Gateways with the Scopious onboarding tool

Details
Manufacturer's Code	UG65-915M-EA-H32
CPU	Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory	512 MB DDR4 RAM
Flash	8 GB eMMC
LoRaWAN Antenna	Internal Antenna and 1 × 50 ? N-Female External Connector)
Channels	8
Frequency Bands	AU915/AS923
Sensitivity	-140dBm Sensitivity @292bps
Output Power	27dBm Max
Protocol	V1.0 Class A/Class C and V1.0.2 Class A/Class C
Ethernet	1 × RJ45 (PoE PD support)
Data Rate	10/100/1000 Mbps (Auto-Sensing)
Mode	Full or Half Duplex (Auto-Sensing)
Wi-Fi Antenna	Integrated and Internal Antenna
Standards	IEEE 802.11 b/g/n
Tx Power	13-18dbm
Network Protocols	PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN	OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Firewall	ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Power Supply	DC Jack Connector for 9-24 VDC power supply or 802.3 af PoE input
Consumption	? 4.2W
Ingress Protection	IP65
Dimensions	180 x 110 x 56.5 mm
Mounting	Desktop, Wall or Pole Mounting
Reset Button	1 × RST
Console Port	Type-C Port
Operating Temperature	-40°C to +70°C (-40? to +158?)
Storage Temperature	-40°C to +85°C (-40? to +185?)
Relative Humidity	0% to 95% (non-condensing) at 25°C/77?

Details
Includes	Mounting Bracket (Pole/Wall), Mounting Screws, RA External Antenna, 12V 1A Power Supply included, Ethernet Cable and Warranty Card

Warranty

3 Years
