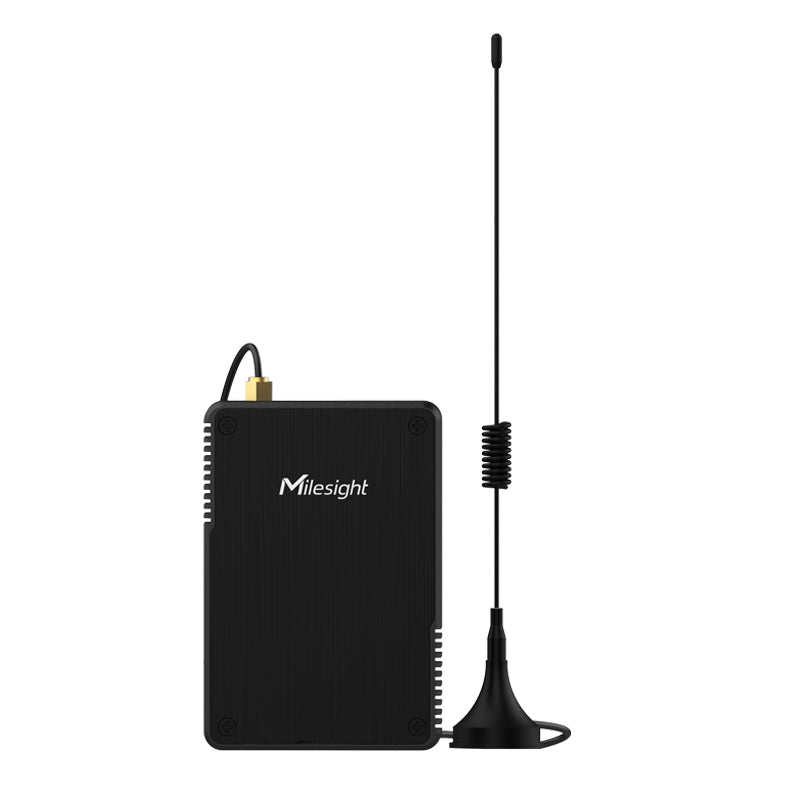

Name: Milesight UG56 Industrial AS923/AU915 LoRaWAN IoT gateway with PoE support
Brand: Milesight IoT
SKU: UG56-915M
Price: 684.25 NZD
Availability: InStock

Milesight UG56 Industrial AS923/AU915 LoRaWAN IoT gateway with PoE support

UG56-915M

$684.25

Tax included.

In stock, ready to be shipped

Select quantity

Description

Milesight UG56 Industrial AS923/AU915 LoRaWAN IoT gateway with PoE support

Milesight UG56 Industrial AS923/AU915 LoRaWAN IoT gateway with PoE support. Penetrate three floors up and down in the building, and cover a radius of up to 2 km in urban areas and 15 km in rural areas. Adopting Semtech SX1302 LoRa chip, UG56 supports connection with more than 2000 LoRaWAN nodes. The compact size makes it possible to embed UG56 into a small equipment cabinet. Users can install the magnetic antenna or fiber-glass antenna (optional) at a signal-optimized place to cover more areas. The Gateway Fleet feature enables multiple agent gateways to transmit received data to one controller gateway, which facilitates the deployment and management of LoRaWAN network. UG56 supports Listen Before Talk which makes it possible for multiple devices to share the same channel, reduce channel conflict and improve the overall transmission environment. With support for BACnet/IP, real-time data can be seamlessly integrated into existing Building Management System (BMS). These gateways are also compatible with Scopious IoT.

. .

Features

Industrial-Grade Design
Listen Before Talk
Gateway Fleet
Free Embedded Network Server
Multiple Backhaul Connectivities
Global LoRaWAN Frequency Plans
Quad-core CPU
Semtech SX1302 LoRa chip
support for BACnet/IP

Details
Manufacturer's Code	UG56-915M
CPU	Quad-core 1.3 GHz, 64-bit ARM Cortex-A35
Memory	512 MB DDR3 RAM
Flash	8 GB eMMC
Extendable Storage	1 × Micro SD Slot (Internal)
LoRaWAN Antenna Connector	1 × 50 Ohm SMA Connector (Center PIN: SMA Female)
Channels	8 (Half-duplex)
Frequency Bands	AU915/AS923-1&2&3&4
Sensitivity	-140 dBm Sensitivity @292bps
Output Power	27 dBm Max (500mW)
Protocol	V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class CLBT support
Ethernet Interface Port	1 × RJ45 (PoE PD supported)
Physical Layer	10/100 Base-T (IEEE 802.3)
Data Rate	10/100 Mbps (Auto-Sensing)
Interface	Auto MDI/MDIX
Wi-Fi Antenna	Internal
Standards	IEEE 802.11b/g/n, 2.4 GHz
Mode	AP or Client mode
Security	WPA/WPA2 authentication, WEP/TKIP/AES encryption
Reset Button	1 × RST (Internal)
Console Port	1 × Type-C
Network Protocols	PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Firewall	ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Apps	Python SDK, Node-RED
Power Input	1 × 802.3 af PoE Input or 5V, 2A by Type-C Port
Power Consumption	Typical 1.8 W, Max 6.9 W
Ingress Protection	IP30
Housing & Color	Metal, Black
Dimensions	110 x 75 x 24 mm
Installation	Desktop, Wall Mounting
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Relative Humidity	0% to 95% (non-condensing) at 25°C

Details
Includes	UG56, Wall/ceiling mounting kit, QSG, warranty card and LoRaWAN Mag base Antenna

Warranty

3 Years
