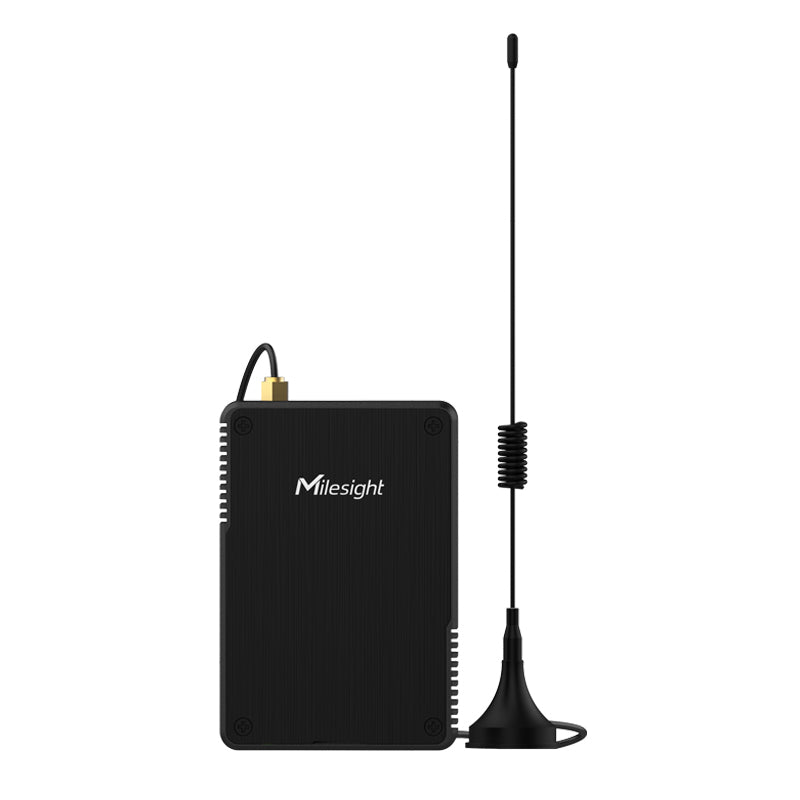

Name: Milesight UG56 Industrial AS923/AU915 LoRaWAN IoT gateway with Cellular Backhaul and PoE support
Brand: Milesight IoT
SKU: UG56-L04AU-915M
Price: 819.95 NZD
Availability: InStock

Milesight UG56 Industrial AS923/AU915 LoRaWAN IoT gateway with Cellular Backhaul and PoE support

UG56-L04AU-915M

$819.95

Tax included.

In stock, ready to be shipped

Select quantity

Description

Milesight UG56 Industrial AS923 LoRaWAN IoT gateway with Cellular Backhaul and PoE support

The Milesight UG56 is a robust 8-channel indoor LoRaWAN AU915/AS923 IoT gateway. Adopting the SX1302 chip and a high-performance quad-core CPU, the UG56 supports connection with more than 2000 nodes. It also has line of sight up to 15 km and can cover about 2 km in urban environments, which is ideally suited to smart buildings, smart industries and many other indoor applications. The UG56 supports not only multiple back-haul backups with Cellular, Ethernet and Wi-Fi, but also has integrated mainstream network servers (such as TTI, ChirpStack, etc.), and a built-in network server and Milesight IoT Cloud for easy deployment. These gateways are also compatible with Scopious IoT.

. .

Features

Quad-core industrial processor with big memory
NXP Quad-Core Processor
Semtech SX1302 LoRa Chip
4g Cellular Backhaul
Multiple Backhaul Connectivity options
Embedded Network Server
IP30 Rated
Compatible with Multiple Network Servers
supports Listen Before Talk (LBT)
Milesight Cloud compliant
supports 2000+ end devices

Details
Manufacturer's Code	UG56-L04AU-915M
CPU	Quad-core 1.3 GHz, 64-bit ARM Cortex-A35
Memory	512 MB DDR3 RAM
Flash	8 GB eMMC
Extendable Storage	1 × Micro SD Slot (Internal)
LoRaWAN Antenna Connector	1 × 50 ? SMA Connector (Center PIN: SMA Female)
Channels	8 (Half-duplex)
Frequency Bands	AU915/AS923-1&2&3&4
Sensitivity	-140 dBm Sensitivity @292bps
Output Power	27 dBm Max
Protocol	V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class CLBT support
Ethernet Interface Port	1 × RJ45 (PoE PD supported)
Physical Layer	10/100 Base-T (IEEE 802.3)
Data Rate	10/100 Mbps (Auto-Sensing)
Interface	Auto MDI/MDIX
Wi-Fi Antenna	Internal
Standards	IEEE 802.11b/g/n, 2.4 GHz
Mode	AP or Client mode
Security	WPA/WPA2 authentication, WEP/TKIP/AES encryption
Reset Button	1 × RST (Internal)
Console Port	1 × Type-C
Network Protocols	PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Firewall	ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Apps	Python SDK, Node-RED
Power Input	1 × 802.3 af PoE Input or 5V, 2A by Type-C Port
Power Consumption	Typical 1.8 W, Max 6.9 W
Ingress Protection	IP30
Housing & Color	Metal, Black
Dimensions	110 x 75 x 24 mm
Installation	Desktop, Wall Mounting
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Relative Humidity	0% to 95% (non-condensing) at 25°C
Cellular	4G Connectivity

Details
Includes	UG56 Cellular, Wall/ceiling mounting kit, QSG, warranty card, LoRawan and Cellular Mag Base antenna

Warranty

3 Years

Brand

Milesight IoT
