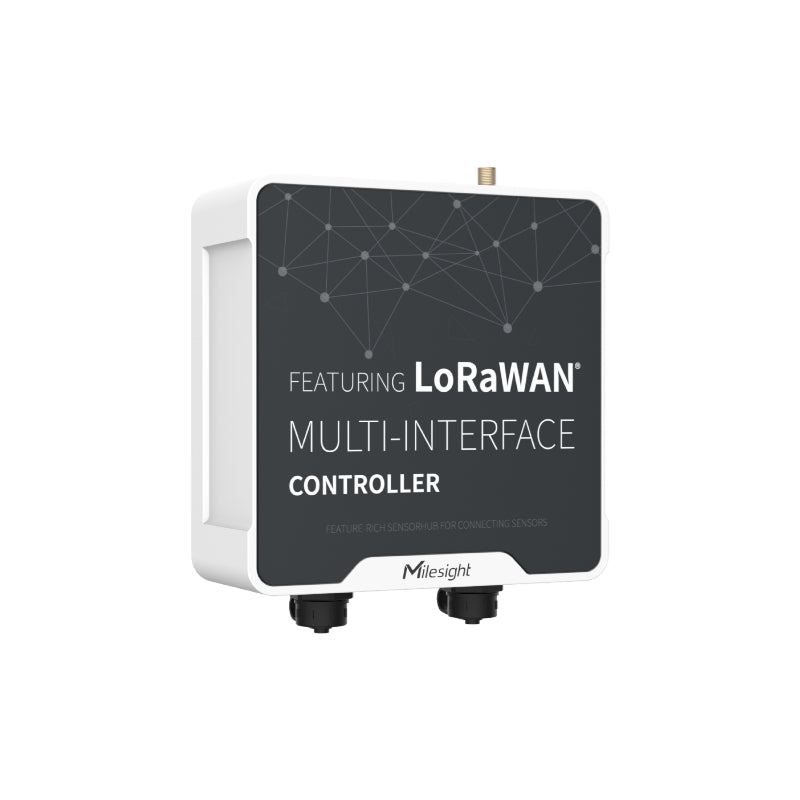

Name: Milesight UC502-EA AU915/AS923 LoraWan IoT Controller with External Antenna Connectors and GPIO/AI/RS232/RS485/SDI12
Brand: Milesight IoT
SKU: UC502-915M-EA
Price: 494.50 NZD
Availability: InStock

Milesight UC502-EA AU915/AS923 LoraWan IoT Controller with External Antenna Connectors and GPIO/AI/RS232/RS485/SDI12

UC502-915M-EA

$494.50

Tax included.

In stock, ready to be shipped

Select quantity

Description

Milesight UC502-EA AU915/AS923 Battery Powered LoraWan Controller with External Antenna Connectors and GPIO/AI/RS232/RS485/SDI12

Milesight UC502 V3 AU915/AS923 LoraWan IoT Controller with GPIO/AI/RS232/RS485/SDI-12. The Milesight UC502 is a AU915/AS923 LoRaWAN controller used for data acquisition from multiple sensors. It contains different I/O interfaces such as analog inputs, digital inputs, digital outputs, serial ports and so on, which simplify the deployment and replacement of LoRaWAN® networks.

UC502 v3 can be easily and quickly configured by NFC or wired USB port. For outdoor applications, it is equipped with an IP67-rated enclosure and M12 connectors to protect itself from water and dust in harsh environments. It is also powered by a 19000mAh replaceable Li-SoCl2 battery.

This sensor is perfect for multiple use cases including smart agriculture, smart industrial monitoring and smart cities. You can use this unit for retrofitting existing sensors to send over LoRaWan, including gas, water or flow meter monitoring.

. .

Features

Easy to connect with multiple wired sensors using GPIO/AI/RS232/RS485/SDI-12 interfaces
Long transmission distance up to 11km with line of sight
Waterproof design including IP67 case and M12 connectors
Large battery Life for Long Deployment life
Quick wireless configuration via NFC
Compliant with standard LoRaWAN® gateways and network servers
Quick and easy management with Milesight IoT Cloud solution
External Lora Antenna

Details
Manufacturer's Code	UC502-915M V3 PN:EA
Frequency	AU915/AS923
Tx Power	20dbm
Sensitivity	-147dBm @300bps
Mode	OTAA/ABP
Interface type	M12 A-Coded Male, SMA-Female connector
IO Ports	2 x GPIO
Logic Level	Low: 0~0.9V, High: 2.5~3.3V
Work Mode	Digital input, digital output, pulse counter (only support on GPIO2)
Serial Port	1 × RS232 or RS485 (Switchable),
Baud Rate	300~230400 bps
Protocol	Transparent (RS232), Modbus RTU (RS485), SDI-12
Analog Inputs	2 × Analog input
Resolution	12 bit
Input Range	4~20mA or 0~10V (Switchable)
Power Output	2 × 3.3 V, 2 × 5/9/12 V (Switchable)
Operating Temperature	-20°C to +60°C
Ingress Protection	IP67
Dimension	120.1 × 120.1× 55.4 mm (4.73 × 4.73 × 2.18 in)
Power Supply	19000mAh replaceable Li-SoCl2 battery
Mounting	Wall or Pole Mounting

IoT Academy

Details
Included	2 × Data Cable, Mounting screws, Screwcaps, Warranty Card

Warranty

3 Years

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

Milesight IoT
HeadingMilesight UC502-EA AU915/AS923 LoraWan IoT Controller with External Antenna Connectors and GPIO/AI/RS232/RS485/SDI12

Description

Milesight UC502-EA AU915/AS923 Battery Powered LoraWan Controller with External Antenna Connectors and GPIO/AI/RS232/RS485/SDI12

Features

Easy to connect with multiple wired sensors using GPIO/AI/RS232/RS485/SDI-12 interfaces
Long transmission distance up to 11km with line of sight
Waterproof design including IP67 case and M12 connectors
Large battery Life for Long Deployment life
Quick wireless configuration via NFC
Compliant with standard LoRaWAN® gateways and network servers
Quick and easy management with Milesight IoT Cloud solution
External Lora Antenna

Details
Manufacturer's Code	UC502-915M V3 PN:EA
Frequency	AU915/AS923
Tx Power	20dbm
Sensitivity	-147dBm @300bps
Mode	OTAA/ABP
Interface type	M12 A-Coded Male, SMA-Female connector
IO Ports	2 x GPIO
Logic Level	Low: 0~0.9V, High: 2.5~3.3V
Work Mode	Digital input, digital output, pulse counter (only support on GPIO2)
Serial Port	1 × RS232 or RS485 (Switchable),
Baud Rate	300~230400 bps
Protocol	Transparent (RS232), Modbus RTU (RS485), SDI-12
Analog Inputs	2 × Analog input
Resolution	12 bit
Input Range	4~20mA or 0~10V (Switchable)
Power Output	2 × 3.3 V, 2 × 5/9/12 V (Switchable)
Operating Temperature	-20°C to +60°C
Ingress Protection	IP67
Dimension	120.1 × 120.1× 55.4 mm (4.73 × 4.73 × 2.18 in)
Power Supply	19000mAh replaceable Li-SoCl2 battery
Mounting	Wall or Pole Mounting
