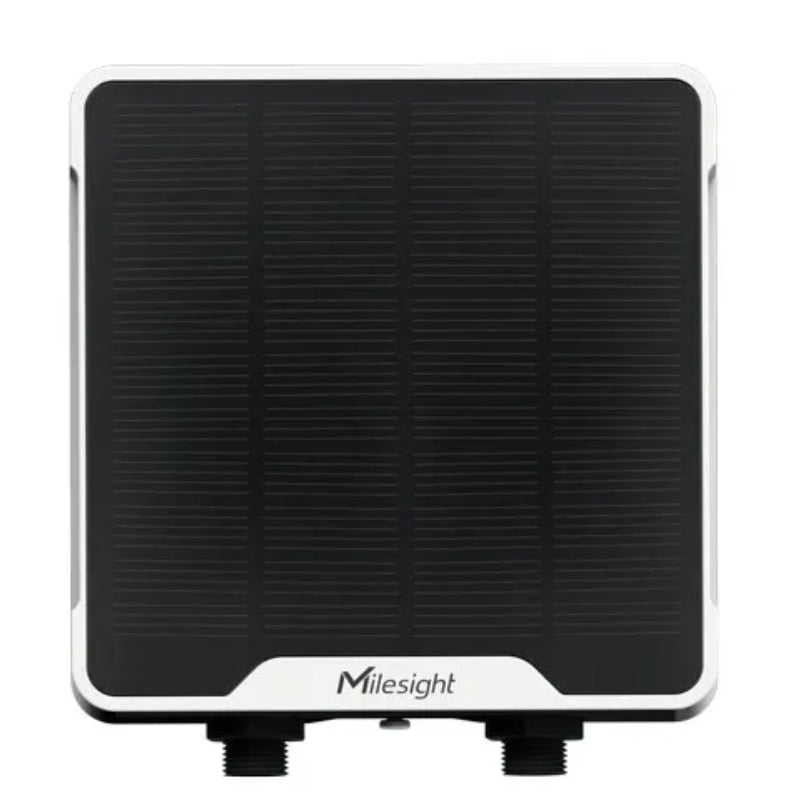

Name: Milesight UC501 AU915/AS923 Solar Powered LoRaWan IoT Controller with GPIO/AI/RS232/RS485
Brand: Milesight IoT
SKU: UC501-915M
Price: 450.80 NZD
Availability: InStock

Milesight UC501 AU915/AS923 Solar Powered LoRaWan IoT Controller with GPIO/AI/RS232/RS485

UC501-915M

$450.80

Tax included.

In stock, ready to be shipped

Select quantity

Description

Milesight UC501 AU915/AS923 Solar Powered LoRaWan IoT Controller with GPIO/AI/RS232/RS485

The Milesight UC501 is a LoRaWAN® IoT controller used for data acquisition from multiple sensors. It contains different I/O interfaces such as analog inputs, digital inputs, digital outputs, serial ports and so on, which simplify the deployment and replacement of LoRaWAN® networks.

UC501 can be easily and quickly configured by NFC or wired USB port. For outdoor applications, it provides solar power supply and is equipped with an IP67-rated enclosure and M12 connectors to protect itself from water and dust in harsh environments.

This sensor is perfect for multiple use cases including smart agriculture, smart industrial monitoring and smart cities. You can use this unit for retro-fitting existing sensors to send over LoRaWan, including gas, water or flow meter monitoring.

. .

Features

Easy to connect with multiple wired sensors through GPIO/AI/RS232/RS485 interfaces
Long transmission distance up to 11km with line of sight
Waterproof design including IP67 case and M12 connectors
Solar powered with rechargable
Quick wireless configuration via NFC
Compliant with standard LoRaWAN® gateways and network servers
Quick and easy management with Milesight IoT Cloud solution

Details
Manufacturer's Code	UC501-915M
Frequency	AU915/AS923
Tx Power	20dbm
Sensitivity	-147dBm @300bps
Mode	OTAA/ABP
Interface type	M12 A-Coded Male
IO Ports	2 x GPIO
Logic Level	Low: 0~0.9V, High: 2.5~3.3V
Work Mode	Digital input, digital output, pulse counter (only support on GPIO2)
Serial Port	1 × RS232 or RS485 (Switchable)
Baud Rate	300~230400 bps
Protocol	Transparent (RS232), Modbus RTU (RS485)
Analog Inputs	2 × Analog input
Resolution	12 bit
Input Range	4~20mA or 0~10V (Switchable)
Power Output	2 × 3.3 V, 2 × 5/9/12 V (Switchable)
Operating Temperature	-20°C to +60°C
Ingress Protection	IP67
Dimension	120.1 × 120.1× 55.4 mm (4.73 × 4.73 × 2.18 in)
Power Connector	M12 A-Coded Male
Power Input	Rechargeable 4900 mAh battery with solar panel
Power Supply	Solar powered + 2*2550mAh battery backup + 5-24 VDC
Mounting	Wall or Pole Mounting

IoT Academy

Details
Included	2 × Data Cable, 1 × USB Cable, Mounting screws, Screwcaps, Warranty Card
