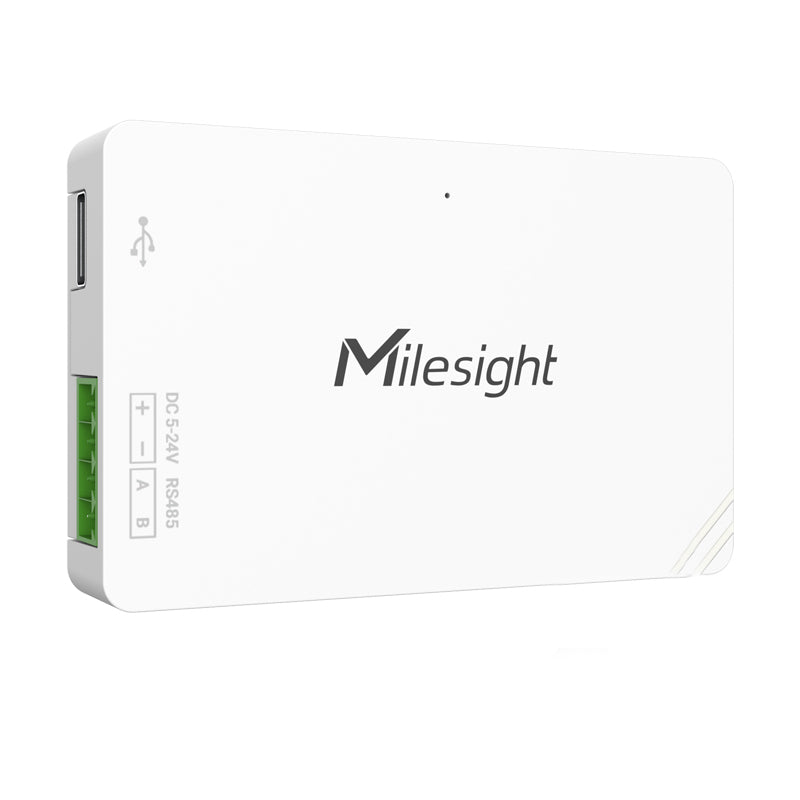

Name: Milesight UC100 LoRaWAN AU915/AS923 to RS485 IoT controller
Brand: Milesight IoT
SKU: UC100-915M
Price: 152.95 NZD
Availability: InStock

Milesight UC100 LoRaWAN AU915/AS923 to RS485 IoT controller

UC100-915M

$152.95

Tax included.

19 items available

Select quantity

Description

Milesight UC100 LoRaWAN AU915/AS923 to RS485 IoT controller

The Milesight UC100 is an IoT controller used for remote control and data acquisition from Modbus RS485 devices via LoRaWAN AU915/AS923 networks. It can read up to 16 Modbus RTU devices and supports Modbus transparent transmission between server and RS485 devices as a Modbus to LoRaWAN® converter. The UC100 also supports multiple trigger conditions and actions which can work autonomously even when the network drops. Combined with Milesight IoT Cloud solution, it can monitor and control remote assets via web server or mobile App easily. UC100 is widely used in indoor applications like smart metering, smart cities, building automation, etc.

. .

Features

support reading 16 Modbus registers, can connect up to 16 Modbus devices
Ultra-wide-distance transmission up to line of sight of 15 km? Multiple triggering conditions and actions
Embedded watchdog for device working stability
support Milesight LoRa D2D protocol to enable ultra-low latency and directly control without LoRaWAN® gateway
Compliant with standard LoRaWAN® gateways and network servers
Quick and easy management with Milesight IoT Cloud solution
Easily onboard and monitor 100’s of LoRaWAN Gateways with the Scopious onboarding

Details
Manufacturer's Code	UC100-915M
Technology	LoRaWAN, LoRa D2D
LoRaWAN Antenna Connector	Internal
Frequency	AU915/AS923
Tx Power	22dBm
Sensitivity	-137dBm @300bps
Mode OTAA/ABP	Class C
Port	1 x RS485
Baud Rate	1200~115200 bps
Protocol	Modbus RTU, supports up to 16 register values
Power Connector	3.5 mm Terminal Block
Power Supply	5-24 VDC by terminal block / 5 VDC Type C
Configuration Port	USB-C
Color & Material	White PC + ABS
Ingress Protection	IP30
Operating Temperature	-20°C ~ 60°C (-4? to +140?)
Relative Humidity	0% ~ 95% (non-condensing) at 25°C/77?
Dimensions	70 x 45 x 13mm
Installation	Desktop, Wall Mounting

Details
Includes	Sensor, QSG

Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

Milesight IoT
HeadingMilesight UC100 LoRaWAN AU915/AS923 to RS485 IoT controller

Description

Milesight UC100 LoRaWAN AU915/AS923 to RS485 IoT controller

Features

support reading 16 Modbus registers, can connect up to 16 Modbus devices
Ultra-wide-distance transmission up to line of sight of 15 km? Multiple triggering conditions and actions
Embedded watchdog for device working stability
support Milesight LoRa D2D protocol to enable ultra-low latency and directly control without LoRaWAN® gateway
Compliant with standard LoRaWAN® gateways and network servers
Quick and easy management with Milesight IoT Cloud solution
Easily onboard and monitor 100’s of LoRaWAN Gateways with the Scopious onboarding

Details
Manufacturer's Code	UC100-915M
Technology	LoRaWAN, LoRa D2D
LoRaWAN Antenna Connector	Internal
Frequency	AU915/AS923
Tx Power	22dBm
Sensitivity	-137dBm @300bps
Mode OTAA/ABP	Class C
Port	1 x RS485
Baud Rate	1200~115200 bps
Protocol	Modbus RTU, supports up to 16 register values
Power Connector	3.5 mm Terminal Block
Power Supply	5-24 VDC by terminal block / 5 VDC Type C
Configuration Port	USB-C
Color & Material	White PC + ABS
Ingress Protection	IP30
Operating Temperature	-20°C ~ 60°C (-4? to +140?)
Relative Humidity	0% ~ 95% (non-condensing) at 25°C/77?
Dimensions	70 x 45 x 13mm
Installation	Desktop, Wall Mounting
