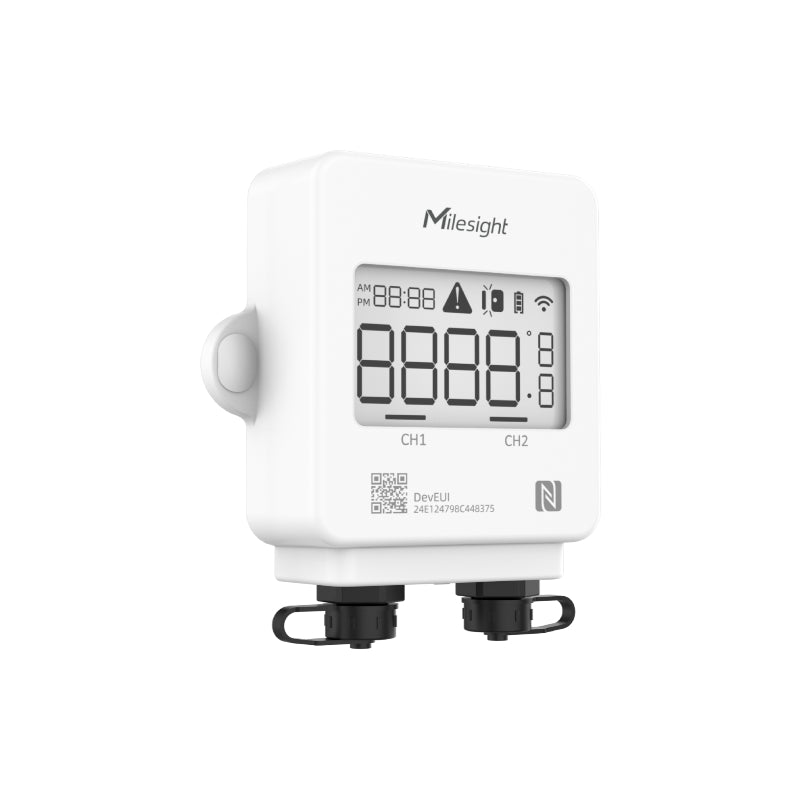

Milesight TS302-915M LoRaWAN AU915/AS923 Two Channel Temperature Sensor IoT

Milesight TS302-915M LoRaWAN AU915/AS923 Two Channel Temperature Sensor IoT

TS302-915M

$277.15

Tax included.

14 items available
Select quantity
Description
Milesight LoRaWAN TS302 Dual Channel Temperature IoT Sensor - IP65, HACCP and 21 CFR Part 11B Rated
Milesight TS302-915M LoRaWAN AU915/AS923 Two Channel Temperature Sensor IoT. TS302 is an advanced resistance temperature sensor with a visualized data display. It features dual connectors and a diverse range of Temp probes, including A-class, B-class, and A-class food-grade temperature probes. Moreover, it provides the option for a magnetic contact switch sensor. TS302 prioritizes security and reliability, ensuring traceable data and effortless data exports for seamless integration. TS302 is designed for measuring a wide range of temperature in harsh environments and transmitting data using LoRaWAN® technology. With this low power consumption technology, TS302 can maintain a long operational life with its embedded batteries. Combined with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually. TS302 is widely used for temperature monitoring applications like food processing, cold chain storage of food or medicine, etc. Combined with Milesight LoRaWAN® gateways, Milesight IoT Cloud or the Scopious Network, users can manage all sensor data remotely and visually.

Users are able to receive immediate alerts for any potential threats, such as temperature spikes or open doors. Data is swiftly transmitted to the cloud for easy access and retrieval, reducing inventory losses in refrigerators and freezers.



. .

Features
  • three types of high-accuracy PT100 temperature probes and one magnetic contact switch sensor
  • IP65 waterproof enclosure with dust plug, suitable for harsh environment
  • automated temperature monitoring in compliance with HACCP, meeting the authenticity requirements of 21 CFR Part 11B electronic record
  • Built-in NFC for easy configuration
  • Compatible with standard LoRaWAN® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution
  • Features low-consumption LCD display, enabling intuitive data reading
  • Built-in two large-capacity replaceable batteries, ensuring an extended battery life
  • Store up to 10,000 historical records locally and supports retransmission to prevent dataloss
Details
Model TS302-915M
Frequency AU915 or AS923 switchable
Tx Power 16dBm
Sensitivity -137dBm @300bps
Work Mode Class A
Temperature Detection Range -40°C - 125°C
Accuracy ± 0.5°C
Resolution 0.1°C
Power On/Off NFC or Internal Power Button or USB C
Configuration NFC Configuration via Mobile App or PC with USB C connection
Advanced Features Data Storage, Data Retransmission, Data Retrievability, Abrupt Temperature Change Alarm, Magnetic Door Open/Close sensor
Power Supply 2 × 4000 mAh ER18505 Li-SOCl2 Replaceable Battery
Battery Life (Estimated) 10 Years (1 Hour Report Interval, 25°C)
Operating Temperature -30°C ~ +70°C
Relative Humidity 0 ~ 95% (Non-condensing)
Transceiver Material & Colour ABS+PC(Food-Grade, Phosphine Corrosion resistant), White
Sensor Probe Material & Colour 316 Stainless Steel (Food-Grade, Phosphine CorrosionResistant) , Silver Grey
Ingress Protection IP67
Impact Protection IK10 (Transceiver)
Transceiver Dimension 92mm × 92mm × 26mm (3.62 × 3.62 × 1.02 in)
Sensor Probe Dimension 7mm × 400mm (0.28 × 15.75 in)
Installation Insert Installation
Details
Contains TS302 Sensor, warranty, QSG, Temp Probe Not Included
Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

  • Milesight IoT

  • HeadingMilesight TS302-915M LoRaWAN AU915/AS923 Two Channel Temperature Sensor IoT

Description
Milesight LoRaWAN TS302 Dual Channel Temperature IoT Sensor - IP65, HACCP and 21 CFR Part 11B Rated
Milesight TS302-915M LoRaWAN AU915/AS923 Two Channel Temperature Sensor IoT. TS302 is an advanced resistance temperature sensor with a visualized data display. It features dual connectors and a diverse range of Temp probes, including A-class, B-class, and A-class food-grade temperature probes. Moreover, it provides the option for a magnetic contact switch sensor. TS302 prioritizes security and reliability, ensuring traceable data and effortless data exports for seamless integration. TS302 is designed for measuring a wide range of temperature in harsh environments and transmitting data using LoRaWAN® technology. With this low power consumption technology, TS302 can maintain a long operational life with its embedded batteries. Combined with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually. TS302 is widely used for temperature monitoring applications like food processing, cold chain storage of food or medicine, etc. Combined with Milesight LoRaWAN® gateways, Milesight IoT Cloud or the Scopious Network, users can manage all sensor data remotely and visually.

Users are able to receive immediate alerts for any potential threats, such as temperature spikes or open doors. Data is swiftly transmitted to the cloud for easy access and retrieval, reducing inventory losses in refrigerators and freezers.



. .

Features
  • three types of high-accuracy PT100 temperature probes and one magnetic contact switch sensor
  • IP65 waterproof enclosure with dust plug, suitable for harsh environment
  • automated temperature monitoring in compliance with HACCP, meeting the authenticity requirements of 21 CFR Part 11B electronic record
  • Built-in NFC for easy configuration
  • Compatible with standard LoRaWAN® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution
  • Features low-consumption LCD display, enabling intuitive data reading
  • Built-in two large-capacity replaceable batteries, ensuring an extended battery life
  • Store up to 10,000 historical records locally and supports retransmission to prevent dataloss
Details
Model TS302-915M
Frequency AU915 or AS923 switchable
Tx Power 16dBm
Sensitivity -137dBm @300bps
Work Mode Class A
Temperature Detection Range -40°C - 125°C
Accuracy ± 0.5°C
Resolution 0.1°C
Power On/Off NFC or Internal Power Button or USB C
Configuration NFC Configuration via Mobile App or PC with USB C connection
Advanced Features Data Storage, Data Retransmission, Data Retrievability, Abrupt Temperature Change Alarm, Magnetic Door Open/Close sensor
Power Supply 2 × 4000 mAh ER18505 Li-SOCl2 Replaceable Battery
Battery Life (Estimated) 10 Years (1 Hour Report Interval, 25°C)
Operating Temperature -30°C ~ +70°C
Relative Humidity 0 ~ 95% (Non-condensing)
Transceiver Material & Colour ABS+PC(Food-Grade, Phosphine Corrosion resistant), White
Sensor Probe Material & Colour 316 Stainless Steel (Food-Grade, Phosphine CorrosionResistant) , Silver Grey
Ingress Protection IP67
Impact Protection IK10 (Transceiver)
Transceiver Dimension 92mm × 92mm × 26mm (3.62 × 3.62 × 1.02 in)
Sensor Probe Dimension 7mm × 400mm (0.28 × 15.75 in)
Installation Insert Installation
Details
Contains TS302 Sensor, warranty, QSG, Temp Probe Not Included
Brand

Milesight IoT

Warranty

1 Year
