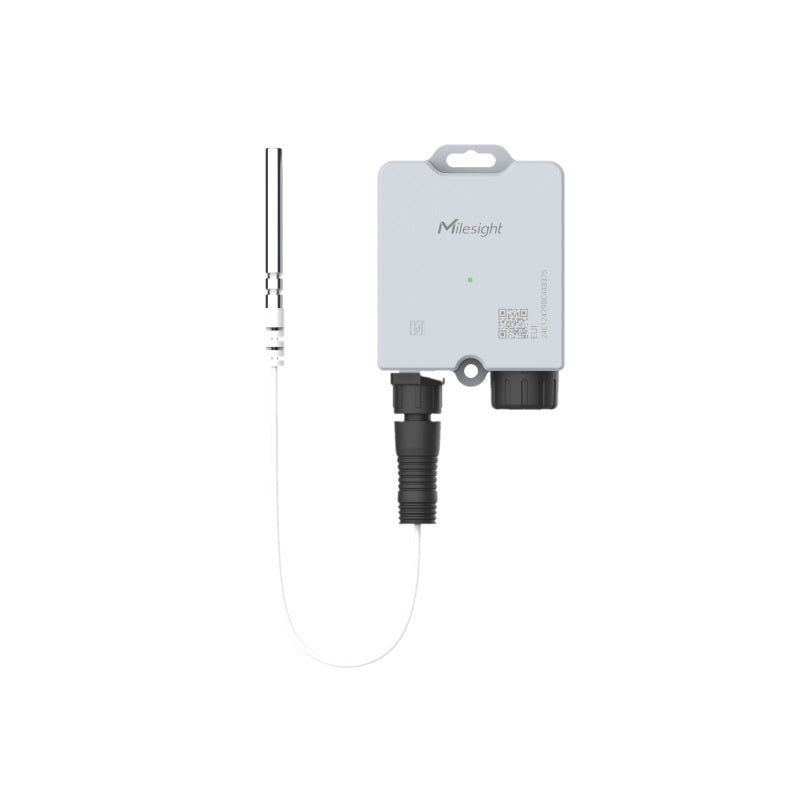

Milesight TS201 LoRaWAN AS923 High Accuracy DS18B20 Temperature IoT Sensor

Milesight TS201 LoRaWAN AS923 High Accuracy DS18B20 Temperature IoT Sensor

TS201-915M

$179.40

Tax included.

15 items available
Select quantity
Description
Milesight TS201 LoRaWAN AS923 High Accuracy DS18B20 Temperature Sensor -40C - 125C
Milesight TS201 LoRaWAN AS923 High Accuracy DS18B20 Temperature IoT Sensor. TS201 is a compact temperature sensor. It is equipped with high-precision sensors and an IP67 waterproof design, making it applicable for accurate temperature data detection in various harsh environments. With the low power consumption technology the TS201 can maintain a long operational life with its internal battery. Combining with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually. TS201 is widely used for temperature monitoring applications like cold chain storage of food or medicine, etc.

Milesight TS201 Temperature Sensor is rugged with IP67 rating offering real-time alerts, while complying with EN12830 Standard and HACCP Requirements. It is specially designed for various application scenarios like cold chain, pharmaceutical, food processing and more.

Milesight TS201 comes with a detachable sensing probe that can be calibrated independently. This ensures stable and accurate temperature sensing and monitoring, making it ideal for cold chain.



. .

Features
  • LED Light Status Indicator
  • Rugged IP67 Rating
  • Up to 2,800 Sets of Data Logging
  • Comply with EN12830 Standard
  • Small and Compact for Flexible Installation
  • LoRaWAN Wireless Deployment
  • Average Battery Life: 3 Years
  • Ideal for Cold Chain and Pharmaceutical
  • support Independent Calibration of Probe
Details
Manufacturer's Code TS201-915M
Protocol LoRaWAN
Frequency US915/AU915/KR920/AS923-1&2&3&4
Tx Power 22dBm (915MHz)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Connector Type Type 1 × 5-Pin M12 A-Coded Male Connector
Measuring Range -40°C ~ 125°C
Accuracy ± 0.5°C(-10°C ~ 85°C), ± 2°C(-40°C ~ -10°C, 85°C ~ 125°C)
Resolution 0.1°C
Cable Length 1.5 m
Cable Material TPE
LED Indicator 1 × Status Indicator
Configuration Mobile App (via NFC)
Advanced Feature Data Storage, Data Retransmission, Data Retrievability, Abrupt Temperature Change Alarm
Power Supply 1 × 2700 mAh ER14505 Li-SOCL2 Battery
Battery Life Around 3 Years (25°C, 10 min Interval, SF10), Around 9 Years (25°C, 10 min Interval, SF7)
Operating Temperature TS201 Device: -30°C ~ 55°C (-22°F ~ 131°F), Sensor Cable: -40°C ~ 125°C (-40°F ~ 257°F)
Relative Humidity 0% to 95% (Non-condensing)
Ingress Protection IP67
Dimension 84.7 × 58 × 25 mm (3.33 × 2.28 × 0.98 in)
Installation Wall Screw Mounting, Cable-tie Mounting, Magnetic Mounting (Opt.?
Details
Contains 1 x TS201 and detachable sensing probe, 1 battery, Mounting kit
Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

  • Milesight IoT

  • HeadingMilesight TS201 LoRaWAN AS923 High Accuracy DS18B20 Temperature IoT Sensor

Description
Milesight TS201 LoRaWAN AS923 High Accuracy DS18B20 Temperature Sensor -40C - 125C
Milesight TS201 LoRaWAN AS923 High Accuracy DS18B20 Temperature IoT Sensor. TS201 is a compact temperature sensor. It is equipped with high-precision sensors and an IP67 waterproof design, making it applicable for accurate temperature data detection in various harsh environments. With the low power consumption technology the TS201 can maintain a long operational life with its internal battery. Combining with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually. TS201 is widely used for temperature monitoring applications like cold chain storage of food or medicine, etc.

Milesight TS201 Temperature Sensor is rugged with IP67 rating offering real-time alerts, while complying with EN12830 Standard and HACCP Requirements. It is specially designed for various application scenarios like cold chain, pharmaceutical, food processing and more.

Milesight TS201 comes with a detachable sensing probe that can be calibrated independently. This ensures stable and accurate temperature sensing and monitoring, making it ideal for cold chain.



. .

Features
  • LED Light Status Indicator
  • Rugged IP67 Rating
  • Up to 2,800 Sets of Data Logging
  • Comply with EN12830 Standard
  • Small and Compact for Flexible Installation
  • LoRaWAN Wireless Deployment
  • Average Battery Life: 3 Years
  • Ideal for Cold Chain and Pharmaceutical
  • support Independent Calibration of Probe
Details
Manufacturer's Code TS201-915M
Protocol LoRaWAN
Frequency US915/AU915/KR920/AS923-1&2&3&4
Tx Power 22dBm (915MHz)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Connector Type Type 1 × 5-Pin M12 A-Coded Male Connector
Measuring Range -40°C ~ 125°C
Accuracy ± 0.5°C(-10°C ~ 85°C), ± 2°C(-40°C ~ -10°C, 85°C ~ 125°C)
Resolution 0.1°C
Cable Length 1.5 m
Cable Material TPE
LED Indicator 1 × Status Indicator
Configuration Mobile App (via NFC)
Advanced Feature Data Storage, Data Retransmission, Data Retrievability, Abrupt Temperature Change Alarm
Power Supply 1 × 2700 mAh ER14505 Li-SOCL2 Battery
Battery Life Around 3 Years (25°C, 10 min Interval, SF10), Around 9 Years (25°C, 10 min Interval, SF7)
Operating Temperature TS201 Device: -30°C ~ 55°C (-22°F ~ 131°F), Sensor Cable: -40°C ~ 125°C (-40°F ~ 257°F)
Relative Humidity 0% to 95% (Non-condensing)
Ingress Protection IP67
Dimension 84.7 × 58 × 25 mm (3.33 × 2.28 × 0.98 in)
Installation Wall Screw Mounting, Cable-tie Mounting, Magnetic Mounting (Opt.?
Details
Contains 1 x TS201 and detachable sensing probe, 1 battery, Mounting kit
Brand

Milesight IoT

Warranty

1 Year
