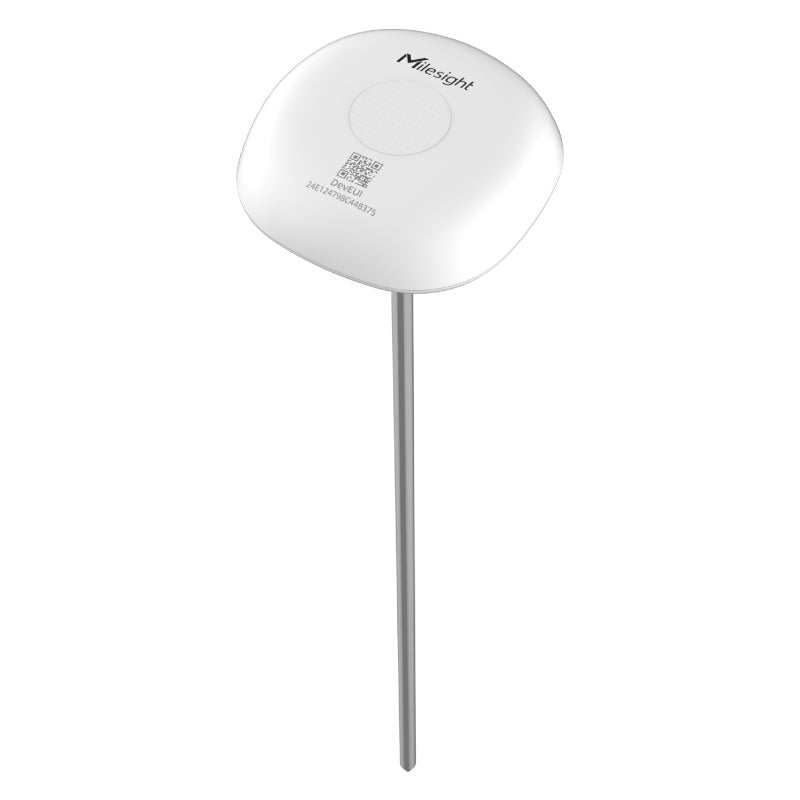

Milesight TS101 LoRaWAN AU915/AS923 Insertion Temperature IoT Sensor

Milesight TS101 LoRaWAN AU915/AS923 Insertion Temperature IoT Sensor

TS101-915M

$282.90

Tax included.

In stock, ready to be shipped
Select quantity
Description
Milesight TS101 LoRaWAN AU915/AS923 Insertion Temperature IoT Sensor
Milesight TS101 LoRaWAN AU915/AS923 Insertion Temperature IoT Sensor. The Milesight TS101 is an all-in-one insertion temperature sensor with an integrated transmitter. It is equipped with an advanced measuring unit that provides a wide temperature measuring range. With IP67 and IK10 ratings, the TS101 sensor is suitable for monitoring the inner temperature of Tobacco, Hay, Silage or grain stacks. It can also be applied in other warehousing scenarios which require inner temperature detection with high efficiency. With its low power consumption technology, the TS101 can work for up to 10 years with a 4,000mAh battery. Combined with Milesight LoRaWAN® gateways, Milesight IoT Cloud or the Scopious Network, users can manage all sensor data remotely and visually.



. .

Features
  • Equipped with highly accurate and stable DS18B20 temperature sensor chip with high resolution
  • Adopt food-grade stainless-steel probe and shell material for efficient and safe detection
  • Store up to 1200 sets of data locally and support data retrievability and retransmission
  • IP67 and IK10 rated and phosphine corrosion-resistant for harsh environment
  • Built-in 4000 mAh replaceable battery and works for up to 10 years without replacement
  • Integrated and compact design for wireless deployment
  • Built-in NFC for easy configuration
  • Compatible with standard LoRaWAN® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution
Details
Model TS101-915M
Frequency AU915 or AS923 switchable
Tx Power 20dBm
Sensitivity -137dBm @300bps
Work Mode Class A
Temperature Detection Range -30°C - 75°C
Accuracy ± 0.5°C
Resolution 0.1°C
Power On/Off NFC or Internal Power Button
Configuration NFC Configuration via Mobile App
Advanced Features Data Storage, Data Retransmission, Data Retrievability, Abrupt Temperature Change Alarm
Power Supply 1 × 4000 mAh ER18505 Li-SOCl2 Replaceable Battery
Battery Life (Estimated) 10 Years (1 Hour Report Interval, 25°C)
Operating Temperature -30°C ~ +70°C
Relative Humidity 0 ~ 95% (Non-condensing)
Transceiver Material & Colour ABS+PC(Food-Grade, Phosphine Corrosion resistant), White
Sensor Probe Material & Colour 316 Stainless Steel (Food-Grade, Phosphine CorrosionResistant) , Silver Grey
Ingress Protection IP67
Impact Protection IK10 (Transceiver)
Transceiver Dimension 92mm × 92mm × 26mm (3.62 × 3.62 × 1.02 in)
Sensor Probe Dimension 7mm × 400mm (0.28 × 15.75 in)
Installation Insert Installation
Details
Contains TS101 Sensor, warranty, QSG.
Warranty

1 Year

Brand

Milesight IoT
