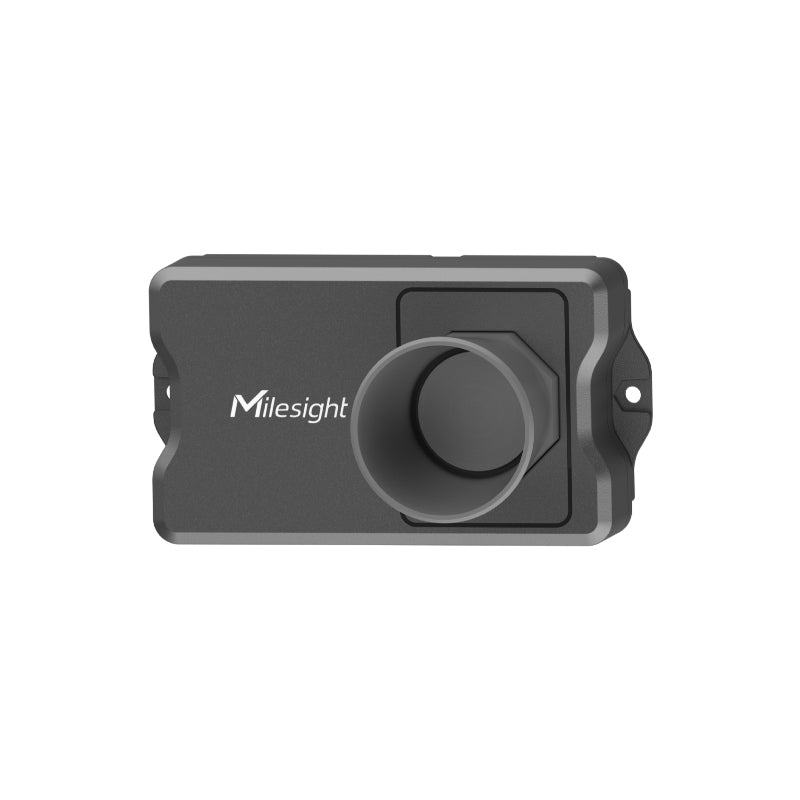

Name: Milesight NB-IoT/CatM EM400-UDL Ultrasonic 5 Metre Distance Sensor with IP67 Case
Brand: Milesight IoT
SKU: EM400-UDL-N03GL-W050
Price: 1453.60 NZD
Availability: InStock

Milesight NB-IoT/CatM EM400-UDL Ultrasonic 5 Metre Distance Sensor with IP67 Case

EM400-UDL-N03GL-W050

$1,453.60

Tax included.

6 items available

Select quantity

Description

Milesight NB-IoT/CatM EM400-UDL Ultrasonic 5m Distance Sensor with IP67 Case

Milesight NB-IoT/CatM EM400-UDL Ultrasonic 5 Metre Distance Sensor with IP67 Case. EM400-UDL is a versatile product among EM400 series because of its detection range, resolution, and accuracy, is designed to cater to the demands of professional applications. Equipped with prolonged battery life and robust IP67 rated enclosure, EM400-UDL is the perfect fit for professional and demanding applications.

Leveraging ultrasonic distance detection, EM400-UDL ensures a stable and reliable performance while detecting different solid or liquid mediums. Featuring non-contact distance measurement, the probe of EM400-UDL will remain unaffected or contaminated by the medium detected, and deliver highly accurate measurement.

Perfect for smart buildings, smart city deployments or industrial use-cases.

. .

Features

Non-Contact Distance Measurement
Value-added Temperature and Tilt Monitoring
Two Pre-set Modes for Seamless User Experience
Long-Lasting up to 10 Years Battery Life
Rugged and Reliable IP67 Rated Enclosure
IP67 Rated
3-axis accelerometer to detect the device position

Details
Manufacturer's Code	EM400-UDL-N03GL-W050
Application Mode	TCP/UDP/MQTT/AWS/Milesight IoT Cloud
Detection Range	30 - 500cm
Detection Accuracy	±1% FS (- 30°C ~ 65°C)
Resolution	1mm
Temperature Range	-40° - 125°C
Resolution	0.1°C
GNSS Positioning Resolution	0.000001
Cellular Bands	Cat M1:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85, Cat NB2:B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
Sim Slot	1 Micro SIM 3FF
Configuration	Mobile APP(NFC)
Power Supply	2 x 9000 mAh ER26500 Li-SOCL2 Batteries
Battery Life	TCP/UDP—Around 10 Years, MQTT/AWS—Around 5 Years
Operating Temperature	-30°C to +70°C
Ingress Protection	IP67
Dimension	118 × 65 × 80 mm
Material and Colour	ABS + PC (Flame Retardant), Black gray
Mounting	On the Flat Surfaces with Screws

Details
Contains	Sensor, QSG, Mounting Screws, Fixing screw, Warranty Card

Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)
