Milesight LoRaWAN Sensor Configuration Tool

Description

Milesight LoRaWAN Quick Deploy Sensor Configuration Tool

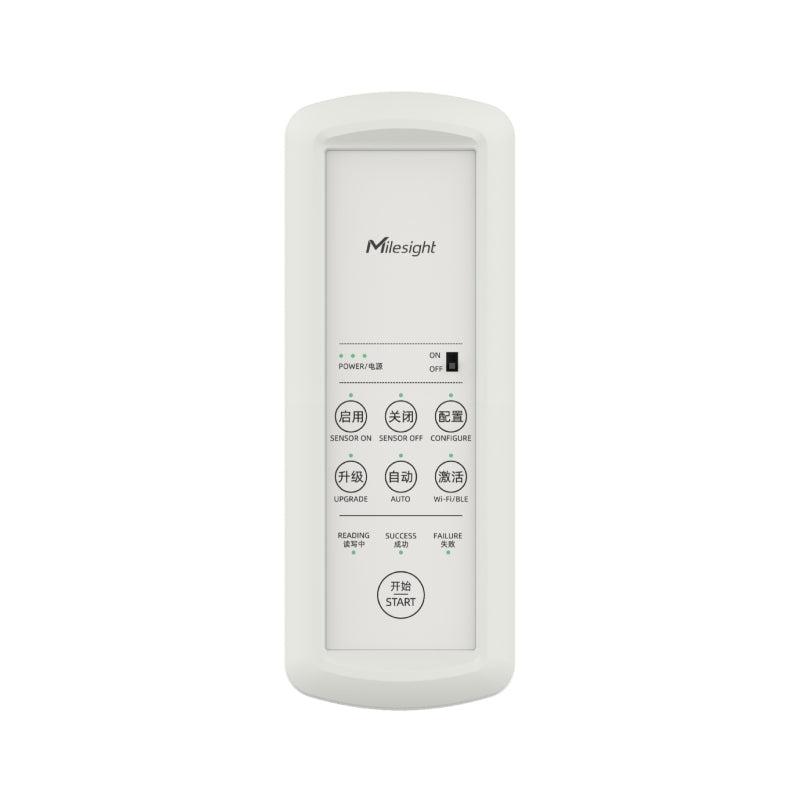

The Milesight Sensor Configuration Tool is a portable configuration tool/device for NFC configuration of Milesight sensors. As a professional NFC reading and writing tool, the SCT01 features a straightforward panel with a large NFC area and clearly stated buttons, making it easy for users without any technical background to configure sensors, smoothly on the spot. With a built-in battery and Type-C port, it can work for 6 hours and supports charging via a Type-C power bank.

. .

Features

Compatible with all Milesight devices with NFC feature
Easy to read and write to devices with a large NFC area
Equips with a buzzer and rich indicators to know the device status and configuration resultsvisibly
Simple operational panel with clear buttons design for easily configurations even for non-technical users
Built-in Bluetooth for easy tool configuration and template import, logs export, etc.
supports storage of 1 firmware file to upgrade devices in bulk
Built-in rechargeable lithium battery that works for 6 hours
supports real-time data backup

Details
Product Code	SCT01
Bluetooth	BLE 4.0, distance: 1.5m
NFC	supports ISO/IEC 14443A Protocol, Reading Distance: 1-3cm
Slide Switch	On/Off
Buttons	7 x Buttons for Sensor Power On/Off, Configuration, Upgrade, etc.
LED Indicator	3 x Power, 3 x Configuration Status, 6 x Button Status
Buzzer	To indicate configuration status
USB	1 x USB 2.0 Type-C Port for Sensor Configuration Tool Power & Charge
Memory	16 MB, support to store 50 configuration files and 1 firmware file
Power supply	Built-in 2000 mAh Chargeable Battery or 5V by USB Type-C
Battery Life	Around 6 Hours (standby mode: Around 1 month)
Operating Temperature	-20C - 60C
Relative Humidity	0-95% (Non-condensing)
Ingress Protection	IP30
Colour and Material	White, Plastic (HB Flame-retardant)
Dimensions	160 × 60 × 26.5 mm
Weight	141g

Details
Contains	1 x SCT01 Configuration Tool

Warranty

1 Year
