Name: Milesight LoRaWAN IoT Residential Gas Detector
Brand: Milesight IoT
SKU: GS101-915M
Price: 239.20 NZD
Availability: InStock

Milesight LoRaWAN IoT Residential Gas Detector

GS101-915M

$239.20

Tax included.

6 items available

Select quantity

Description

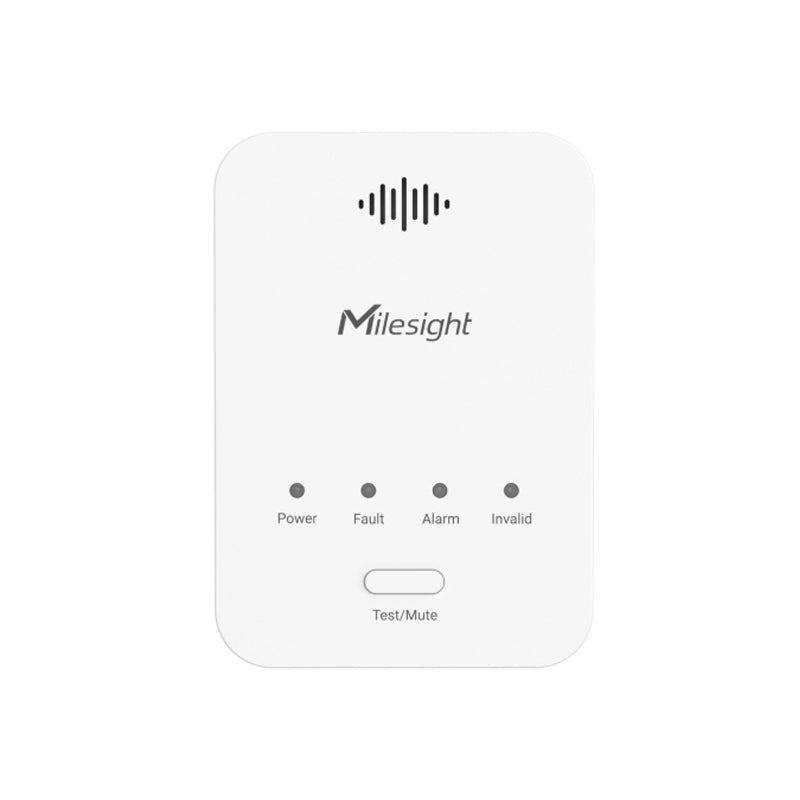

Milesight LoRaWAN IoT Residential Gas Detector

The Milesight GS101 is a LoRaWAN® IoT residential gas detector to detect the natural gas leak and send alarms. When the concentration caused by a gas leak reaches the preset threshold, the detector will trigger both LED light alarm and buzzer sound alarm, it also supports controlling outputs to close the gas valve and open the vent fans to prevent potential accidents. Apart from local alarms, GS101 can also report the normal status of the device and alarm messages remotely by the use of LoRaWAN® technology. Integrating with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can monitor all the sensor data and control the device remotely and visually. This sensor is also compatible with Scopious IoT.

. .

Features

Built-in semiconductor gas detecting sensor with 5-year life expectancy with no calibration needed
High sensitivity gas leak detection and support 8% LEL alarm threshold
Equipped with buzzer and light indicators to indicate the device powered, faulty, alarmed, and invalid status
Equipped with a test button to test the device’s normal or abnormal status
Equipped with outputs for controlling external appliances such as gas valves and vent fans
Built in NFC for easy configuration

Details
Model	GS101-915M
Technology	LoRaWAN®
Frequency	AU915/KR920/AS923
Tx Power	22 dBm
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class C
Detecting Gas	Methane (CH4)
Detection Principle	Semiconductor Sensor
Warm-up Time	About 180s
Alarm Level	8% LEL
Alarm Type	Sound, Light
Alarm Volume	85 dBA @1 Meter
Working Life	5 Years (In Clear Air)
Output Signal	1 × Relay Output: normally open, max 250 VAC/10A, 1 × Solenoid Valve Output: 12V, 100ms Pulse Output
Button	1 × Test/Mute/Reset/Reboot Button
LED Indicators	1 × Power (Green), 1 × Fault (Yellow), 1 × Alarm (Red), 1 × Invalid(Yellow)
Configuration	Mobile App via NFC
Historical Records Storage	Alarm Records, Alarm Dismissed Records, Device Fault Records, Device Fault Recovered Records, Device Power On Records, DevicePower Off Records, Device Invalid Records
Power Connector	DC Jack Connector
Power Supply	12VDC, 1A
Operating Temperature	-10°C to +55°C
Relative Humidity	0% to 95% (non-condensing)
Ingress Protection	IP30
Dimension	120 × 85 × 32.5 mm
Material & Color	PC+ABS (Flame Retardant), White
Installation	Wall Mounting

Details
Contains	Gas Detecting Sensor, PSU, Wall mounting Kit, QSG, Warranty Card

Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

Milesight IoT
HeadingMilesight LoRaWAN IoT Residential Gas Detector

Description

Milesight LoRaWAN IoT Residential Gas Detector

Features

Built-in semiconductor gas detecting sensor with 5-year life expectancy with no calibration needed
High sensitivity gas leak detection and support 8% LEL alarm threshold
Equipped with buzzer and light indicators to indicate the device powered, faulty, alarmed, and invalid status
Equipped with a test button to test the device’s normal or abnormal status
Equipped with outputs for controlling external appliances such as gas valves and vent fans
Built in NFC for easy configuration

Details
Model	GS101-915M
Technology	LoRaWAN®
Frequency	AU915/KR920/AS923
Tx Power	22 dBm
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class C
Detecting Gas	Methane (CH4)
Detection Principle	Semiconductor Sensor
Warm-up Time	About 180s
Alarm Level	8% LEL
Alarm Type	Sound, Light
Alarm Volume	85 dBA @1 Meter
Working Life	5 Years (In Clear Air)
Output Signal	1 × Relay Output: normally open, max 250 VAC/10A, 1 × Solenoid Valve Output: 12V, 100ms Pulse Output
Button	1 × Test/Mute/Reset/Reboot Button
LED Indicators	1 × Power (Green), 1 × Fault (Yellow), 1 × Alarm (Red), 1 × Invalid(Yellow)
Configuration	Mobile App via NFC
Historical Records Storage	Alarm Records, Alarm Dismissed Records, Device Fault Records, Device Fault Recovered Records, Device Power On Records, DevicePower Off Records, Device Invalid Records
Power Connector	DC Jack Connector
Power Supply	12VDC, 1A
Operating Temperature	-10°C to +55°C
Relative Humidity	0% to 95% (non-condensing)
Ingress Protection	IP30
Dimension	120 × 85 × 32.5 mm
Material & Color	PC+ABS (Flame Retardant), White
Installation	Wall Mounting
