Name: Milesight LoRaWAN AU915/AS923 Outdoor Pipe Pressure IoT Sensor
Brand: Milesight IoT
SKU: EM500-PP-915M-G12M-4842
Price: 744.05 NZD
Availability: InStock

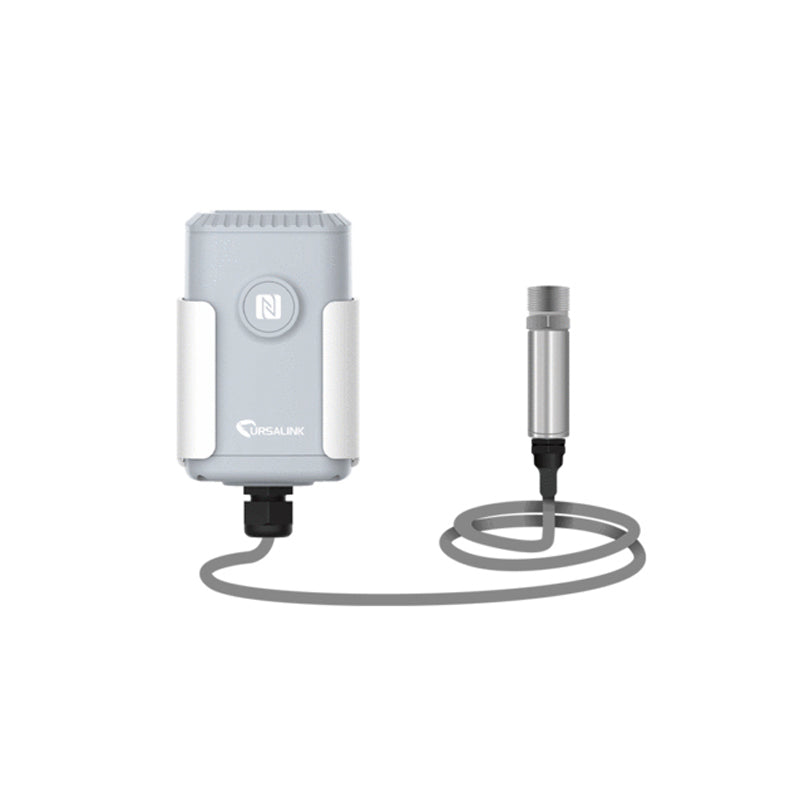

Milesight outdoor pipe pressure IoT sensor with cable and probe, gray enclosure

Milesight LoRaWAN AU915/AS923 Outdoor Pipe Pressure IoT Sensor

EM500-PP-915M-G12M-4842

$744.05

Tax included.

In stock, ready to be shipped

Select quantity

Description

Milesight LoRaWAN AU915/AS923 Outdoor Pipe Pressure IoT Sensor

Description

Milesight LoRaWAN AU915/AS923 Outdoor Pipe Pressure Sensor with Updated Pipe Sensor

The EM500-PP pipe pressure IoT sensor is a long range wireless sensor compatible with standard LoRaWAN AU915/AS923 protocol. Combined with advanced LoRa technology and 19000mAh battery make it a low-power consumption product with years-long use life. It is designed to measure the pressure of water/oil/gas from a 1/2” pipe connection and it is the fundamental component of a leak detection system.

The EM500-PP-915-G1/2M-4842 is an Outdoor IP66 rated Pipe pressure sensor, used for pressure monitoring in pipelines and tanks.
Great for many applications including smart city, Smart farming / Agriculture.

. .

Features

Robust IP66 rated enclosure
Configuration via NFC
LoRaWAN AU915/AS923
Ursalink Cloud compliant
Low power consumption
1/2” pipe connection

Details
Manufacturer's Code	EM500-PP-915M-G1/2M-4842
Frequency	AU915/AS923
Tx Power	20dBm
Sensitivity	-147dBm @300bps
Mode	OTAA/ABP Class A
Antenna	Integrated Ceramic Antenna
Pressure Type	Gauge Pressure
Range	0~1600kPa (16Bar)
Accuracy	±0.5%FS
Resolution	1kPa (0.01Bar)
Overload	150%FS
Pressure Connection	1/2” Male
Cable Length	1.5m
Operating Temperature	-30°C to +70°C (Transceiver)/-10°C to +70°C (Pipe Pressure Sensor)
Dimension	105.4 × 71× 69.5 mm (Waterproof connector and sensor not included)
Power Input	19000 mAh Li-SOCL2 battery
Mounting	Pole, DIN rail, wall
IP Rating	IP67(Transceiver)/IP65(Pipe Pressure Sensor)
Configuration	Mobile APP or PC software via NFC or USB Type-C

Details
Contents	Pipe Pressure sensor, Pole/Wall Mounting kit included

Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

Milesight IoT
HeadingMilesight LoRaWAN AU915/AS923 Outdoor Pipe Pressure IoT Sensor

Description

Milesight LoRaWAN AU915/AS923 Outdoor Pipe Pressure IoT Sensor

Description

Milesight LoRaWAN AU915/AS923 Outdoor Pipe Pressure Sensor with Updated Pipe Sensor

Features

Robust IP66 rated enclosure
Configuration via NFC
LoRaWAN AU915/AS923
Ursalink Cloud compliant
Low power consumption
1/2” pipe connection

Details
Manufacturer's Code	EM500-PP-915M-G1/2M-4842
Frequency	AU915/AS923
Tx Power	20dBm
Sensitivity	-147dBm @300bps
Mode	OTAA/ABP Class A
Antenna	Integrated Ceramic Antenna
Pressure Type	Gauge Pressure
Range	0~1600kPa (16Bar)
Accuracy	±0.5%FS
Resolution	1kPa (0.01Bar)
Overload	150%FS
Pressure Connection	1/2” Male
Cable Length	1.5m
Operating Temperature	-30°C to +70°C (Transceiver)/-10°C to +70°C (Pipe Pressure Sensor)
Dimension	105.4 × 71× 69.5 mm (Waterproof connector and sensor not included)
Power Input	19000 mAh Li-SOCL2 battery
Mounting	Pole, DIN rail, wall
IP Rating	IP67(Transceiver)/IP65(Pipe Pressure Sensor)
Configuration	Mobile APP or PC software via NFC or USB Type-C
