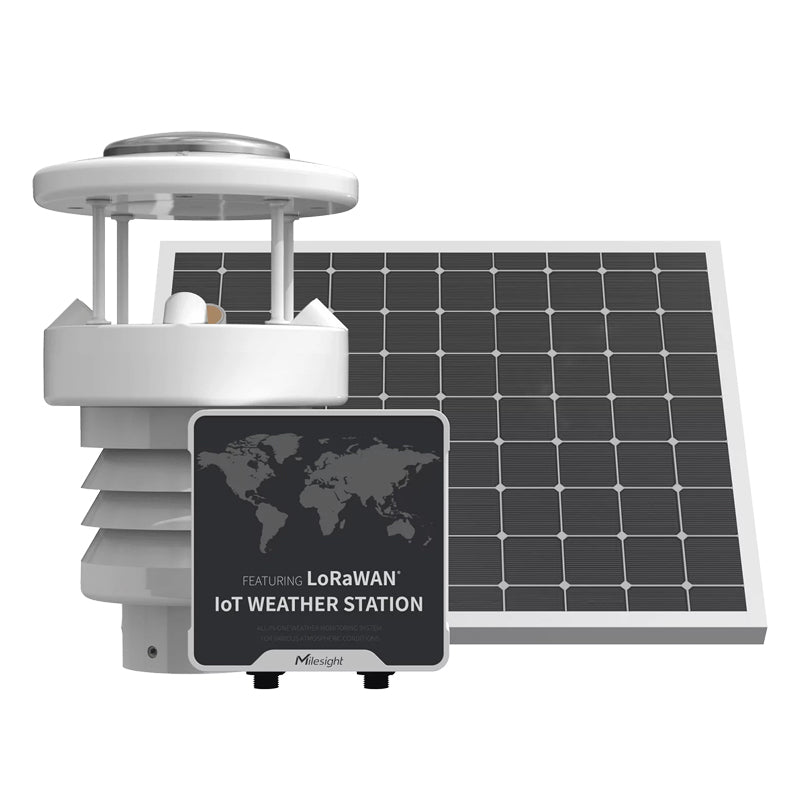

Name: Milesight LoRaWAN AU915/AS923 IoT Weather Station Kit with Rainfall Monitoring
Brand: Milesight IoT
SKU: WTS506-915M
Price: 7422.10 NZD
Availability: OutOfStock

Milesight LoRaWAN AU915/AS923 IoT Weather Station Kit with Rainfall Monitoring

WTS506-915M

$7,422.10

Tax included.

Out of stock

Select quantity

Description

Milesight LoRaWAN AU915/AS923 IoT Weather Station - Temperature, Humidity, Wind Direction, Wind Speed and Barometric Pressure and rainfall monitoring

Milesight LoRaWAN AU915/AS923 IoT Weather Station Kit with Rainfall Monitoring. Milesight LoRaWAN AU915/AS923 IoT Weather Station Kit with Rainfall monitoring The Milesight IoT Weather Station (WTS506) is an all-in-one LoRaWAN IoT weather monitoring system for various atmospheric conditions, such as temperature, humidity, wind speed, wind direction, barometric pressure and rainfall. Consisting of 3 main parts, WTS Sensors, WTS Hub and solar panel, the IoT Weather Station is designed to withstand the most challenging weather conditions and is easy to install in different scenarios to be widely used in meteorology, smart agriculture, smart building, etc. Sensor data is transmitted using LoRaWAN® technology. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data and trigger other sensors or appliances easily via webpage or mobile App remotely. This Weather station is also compatible with Scopious IoT.

. .

Features

Integrated with multiple sensors like humidity, temperature, barometric pressure, wind speed, wind direction, rainfall, etc.
Waterproof, UV-proof and salt spray resistant enclosure for outdoor harsh environment applications
Solar powered with chargeable battery backup
Store more than 19, 000 historical records locally with retransmission support to ensure no data loss
Equipped with NFC for easy and quick configuration

Details
Model	WTS506-915M
Temperature Range	-40°C - 85°C
Accuracy	± 0.3°C
Resolution	0.1°C
Humidity Range	0% - 100% RH
Accuracy	± 3% RH
Resolution	0.5% RH
Wind Direction Range	0° - 360°
Accuracy	± 3°
Resolution	0.1°
Wind Speed Range	0 -60 m/s
Accuracy	± 0.3 m/s or ± 3% (whichever is greater)
Resolution	0.1 m/s
Barometric Pressure	Range 500 - 1100 hPa
Accuracy	±0.5 hPa
Resolution	0.1 hPa
Rainfall Range	0-500mm
Accuracy	±0.5 mm (< 10 mm), ±5 %( >10mm)
Resolution	0.01mm
Material	Aluminium Alloy
Weight	2.15 kg
Dimension	160 x 263 x 73 mm
Relative Humidity	0% - 100% (non-condensing)
Ingress Protection	IP65
Installation	Pole Mounting
WTS Hub Technology	LoRaWAN®
Frequency	AU915/AS923
Max Tx Power	22dBm 915MHz
Sensitivity	-137dBm @300bps
Work Mode	OTAA/ABP Class A
Configuration	Mobile App (via NFC) or PC software (via USB Type-C)
Power Supply	Solar powered (15 W, 1A) with 2 × 2550 mAh chargeable batteries backup
Operating Temperature	-20°C to +60°C
Relative Humidity	0% to 95% (non-condensing)
Ingress Protection	IP67
Dimension	116 × 116 × 45.5 mm
Installation	Screw Mounting
Solar Panel Electrical Characteristics	Open-Circuit Voltage 18 V (± 0.3 V), Rated Voltage 15 V (± 0.3 V), Rated Current 1 A (± 5%), Maximum Power 15 W (± 5%), Minimal Power 14.5 W (± 5%)
Physical Characteristics	Cell Type Monocrystalline Silicon
Operating Temperature	-20°C to +80°C
Weight	1 kg (Without Bracket), 2.2 kg (With Bracket)
Dimension	343 × 283 × 16.5 mm

Details
Contains	WTS Sensor, WTS hub, Solar panel, Solar panel bracket, sensor cable, WTS hub mounting bracket, Fixing Screws, Solar panel screw kit, Hose clamps, QSG, Warranty card

Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

Milesight IoT
HeadingMilesight LoRaWAN AU915/AS923 IoT Weather Station Kit with Rainfall Monitoring

Description

Milesight LoRaWAN AU915/AS923 IoT Weather Station - Temperature, Humidity, Wind Direction, Wind Speed and Barometric Pressure and rainfall monitoring

Features

Integrated with multiple sensors like humidity, temperature, barometric pressure, wind speed, wind direction, rainfall, etc.
Waterproof, UV-proof and salt spray resistant enclosure for outdoor harsh environment applications
Solar powered with chargeable battery backup
Store more than 19, 000 historical records locally with retransmission support to ensure no data loss
Equipped with NFC for easy and quick configuration

Details
Model	WTS506-915M
Temperature Range	-40°C - 85°C
Accuracy	± 0.3°C
Resolution	0.1°C
Humidity Range	0% - 100% RH
Accuracy	± 3% RH
Resolution	0.5% RH
Wind Direction Range	0° - 360°
Accuracy	± 3°
Resolution	0.1°
Wind Speed Range	0 -60 m/s
Accuracy	± 0.3 m/s or ± 3% (whichever is greater)
Resolution	0.1 m/s
Barometric Pressure	Range 500 - 1100 hPa
Accuracy	±0.5 hPa
Resolution	0.1 hPa
Rainfall Range	0-500mm
Accuracy	±0.5 mm (< 10 mm), ±5 %( >10mm)
Resolution	0.01mm
Material	Aluminium Alloy
Weight	2.15 kg
Dimension	160 x 263 x 73 mm
Relative Humidity	0% - 100% (non-condensing)
Ingress Protection	IP65
Installation	Pole Mounting
WTS Hub Technology	LoRaWAN®
Frequency	AU915/AS923
Max Tx Power	22dBm 915MHz
Sensitivity	-137dBm @300bps
Work Mode	OTAA/ABP Class A
Configuration	Mobile App (via NFC) or PC software (via USB Type-C)
Power Supply	Solar powered (15 W, 1A) with 2 × 2550 mAh chargeable batteries backup
Operating Temperature	-20°C to +60°C
Relative Humidity	0% to 95% (non-condensing)
Ingress Protection	IP67
Dimension	116 × 116 × 45.5 mm
Installation	Screw Mounting
Solar Panel Electrical Characteristics	Open-Circuit Voltage 18 V (± 0.3 V), Rated Voltage 15 V (± 0.3 V), Rated Current 1 A (± 5%), Maximum Power 15 W (± 5%), Minimal Power 14.5 W (± 5%)
Physical Characteristics	Cell Type Monocrystalline Silicon
Operating Temperature	-20°C to +80°C
Weight	1 kg (Without Bracket), 2.2 kg (With Bracket)
Dimension	343 × 283 × 16.5 mm

Details
Contains	WTS Sensor, WTS hub, Solar panel, Solar panel bracket, sensor cable, WTS hub mounting bracket, Fixing Screws, Solar panel screw kit, Hose clamps, QSG, Warranty card
