Milesight LoRaWAN 9-in-1 Indoor Sensor AU915/AS923 O3

Name: Milesight LoRaWAN 9-in-1 Indoor Sensor AU915/AS923 O3
Brand: Milesight IoT
SKU: AM319-O3-915M
Price: 838.35 NZD
Availability: InStock

AM319-O3-915M

$838.35

Tax included. Shipping calculated at checkout.

16 items available

Select quantity

Description

Milesight LoRaWAN AU915/AS923 9 in 1 Indoor Ambience Monitoring IoT Sensor (O3 Version)

Description

Milesight AM319-O3-915M LoRaWAN 9 in 1 Indoor Ambience Monitoring Sensor - Temp, Humidity, PIR, Light, TVOC, Barometric Pressure, CO2, O3 (Ozone), PM2.5 and PM10165

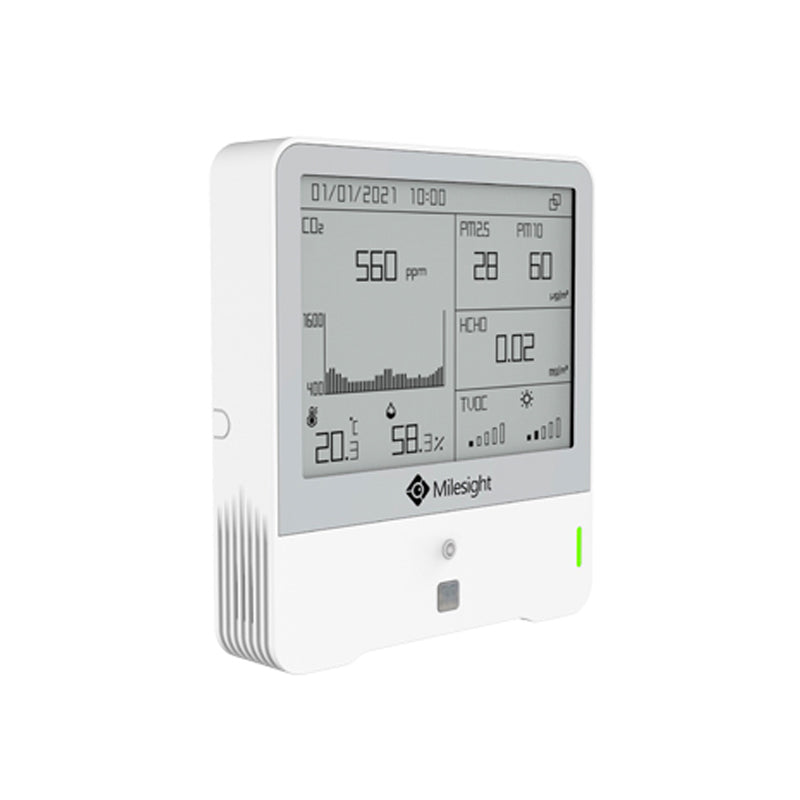

Milesight LoRaWAN AU915/AS923 9 in 1 Indoor Ambience Monitoring IoT Sensor (O3 Version). The Milesight AM319 is a compact indoor ambience monitoring IoT sensor for measurement of temperature, humidity, light, CO2 concentration, O3 level, TVOC, barometric pressure, PM2.5, PM10 and motion. The data will be shown on the E-ink screen in real-time, which helps to measure the indoor environment and comfort. AM300 series is widely used for business offices, stores, classrooms, hospitals, homes, etc.

. .

Features

Integrated with multiple sensors: humidity, temperature, CO2, light, barometric pressure, PM2.5, PM10, etc.
Multiple display modes and clear emoticon to easily understand the comfort levels via screen
Equipped with traffic LED and buzzer to indicate device status and threshold alarms
support more than 20,000 data records store locally
Compliant with standard LoRaWAN® gateways and network servers
Perfect device for Environmental Monitoring for Business, Education and Homes

Details
Model	AM319-O3-915M
Frequency	AU915 or AS923
Tx Power	22dBm
Sensitivity	-137dBm @300bps
Work Mode	Class C
Temperature Range	-40°C - 85°C
Accuracy	± 1°C
Resolution	0.1°C
Humidity Range	0% - 100% RH
Accuracy	± 3%
Resolution	0.5% RH
PIR Detection Area	80 ° Horizontal, 55 ° Vertical
Detection Range	5 m
Status	Vacant/Occupied
Light Range	0-60000 Lux (display as 6 levels, 0-5)
TVOC Range	0-500 (IAQ Index)
Accuracy	±15 %
Barometric Pressure Range	300 - 1100 hPa (-40°C - 85°C)
Accuracy	±0.6 hPa
Resolution	0.1 hPa
Carbon Dioxide (CO2) Range	400 - 2000 ppm
Accuracy	±50 ppm or ±5 % of reading
Resolution	1 ppm
PM2.5 & PM10 Range	0 - 1000 ?g/m3
Accuracy	0-100(±10?g/m3), 100-1000(±10 %)
Resolution	1 ?g/m3
Ozone(O3) Range	0 - 10 ppm
Accuracy	±5 % FS
Resolution	0.01 ppm
Display	4.2-inch Black & White E-Ink Screen
Buttons	1 × Power Button + 1 × Reset Button
LED & Buzzer	1 × Traffic Light Status Indicator + 1 × Buzzer
Power Supply	5V/1A by Type-C Port
Operating Temperature	-20°C - 60°C (E-Ink Screen: 0°C - 40°C)
Relative Humidity	10% - 90% (non-condensing)
Ingress Protection	IP30
Dimension	100.8 × 114 × 22 mm
Installation	Wall Mounting

Manufacturer Website
Firmware & Downloads
Datasheets and User Guides
Blog
Wiki Knowledge Base
Case Studies
IoT Academy

Details
Contains	QSG, Power adaptor, USB cable, Mounting bracket, Mounting screws.

Warranty

1 Year

Brand

Milesight IoT
