Name: Milesight LoRaWAN AS923 Portable Smart Socket
Brand: Milesight IoT
SKU: WS523-10A-AU-915M
Price: 239.20 NZD
Availability: OutOfStock

Milesight LoRaWAN AS923 Portable Smart Socket

WS523-10A-AU-915M

$239.20

Tax included.

Out of stock

Select quantity

Description

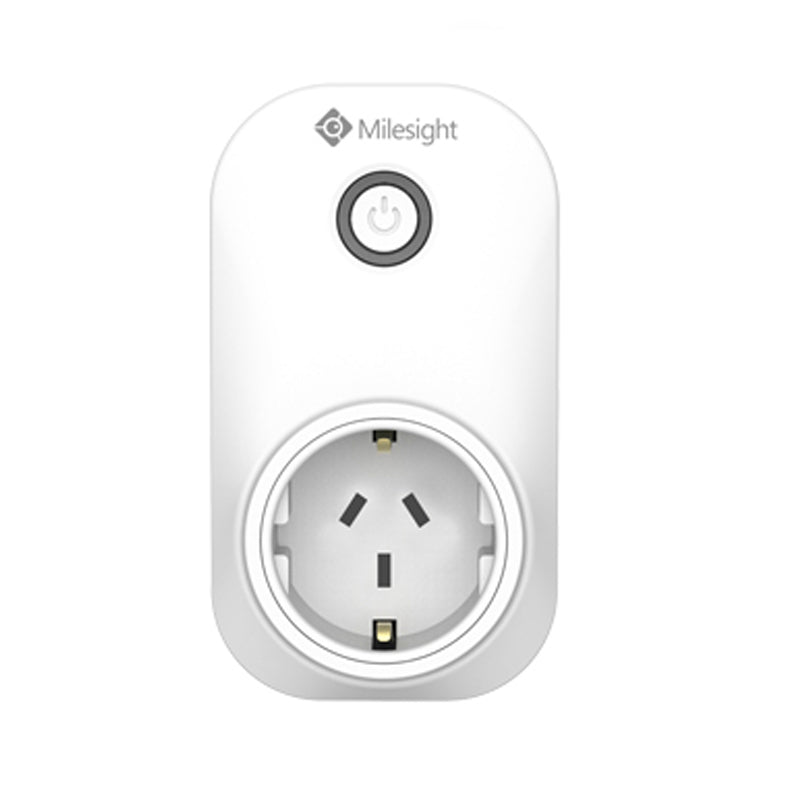

Milesight LoRaWAN AS923 Portable Smart Socket

The Milesight WS523 is a LoRaWAN based smart portable socket for monitoring and control of electrical appliances. Adopting most of international socket standards, WS52x can be used for turning electrical devices on and off locally or remotely and measuring power consumption data of things plugged into it. It can even send overcurrent alarms. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, the WS523 can be monitored and controlled via webpage or mobile App remotely and triggered by other Milesight sensors.

. .

Features

Plug and play without any wiring
Turn devices on/off and create on/off schedules remotely
Collect current, voltage, electrical consumption with support for overload protection
Ultra-wide-distance wireless transmission up to line of sight of 15 km
Equipped with NFC for one touch configuration and supports card emulation mode
Functions well with standard LoRaWAN® gateways and network servers
Compliant with Milesight IoT Cloud

Details
Manufacturer's Code	WS523-10A-AU-915M
Frequency	AU915/AS923
Tx Power	22dBm
Sensitivity	-137dBm
Mode	OTAA/ABP Class C
Socket & Plug Type	AU
Operating Voltage	100~250 VAC, 50~60 Hz
Max Load Capacity	10A (16A Optional), 250 VAC
Measurement	Voltage(VAC), Current(A), Power Factor(%), Power Meter(kWh)
Software Configuration	NFC
Power Control	Button or Remote Control
Advanced Features	Schedule Switch, Button Lock, Overcurrent Protection/Alarm
LED Indicator	1
Button	ON/OFF, Reset
Material	White Polycarbonate
Operating Temperature	-10°C to +60°C
Relative Humidity	10% to 90% (non-condensing)
Dimensions	110 × 62 × 35 mm

Details
Contains	LoRa Portable Socket, QSG, warranty card

Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)
