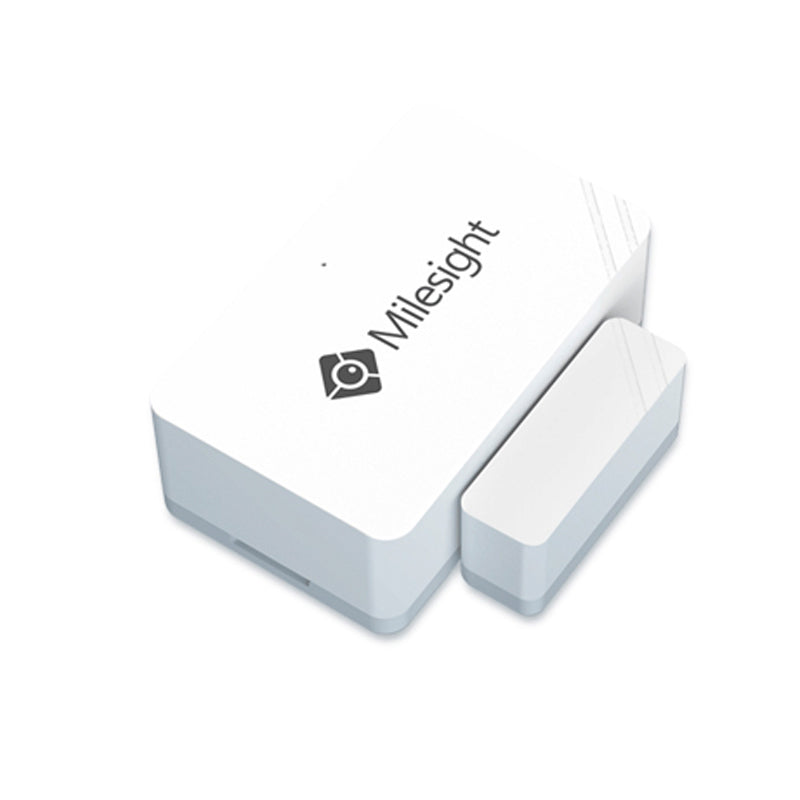

Milesight LoRaWAN AS923 Magnetic Contact IoT Switch

Milesight LoRaWAN AS923 Magnetic Contact IoT Switch

WS301-915M

$150.65

Tax included.

In stock, ready to be shipped
Select quantity
Description
Milesight LoRaWAN AS923 Magnetic Contact IoT Switch
Milesight LoRaWAN AS923 Magnetic Contact IoT Switch. The WS301 simply enables you to know when someone enters the office/building through door/window or whether or not something has been moved. The small magnet is placed inside the portable part, while the sensor is inside the fixed part that can be attached to doors/windows or other objects. With minimalistic style and its compact size, the wire-free WS301 can be easily mounted on the doors, panes, or cabinets, greatly providing real applications for smart homes, smart offices or smart factories. With LoRaWAN technology, one of the most low power consumption technologies, the Milesight WS301 can work up to almost 2 years without having to replace the battery. Compliant with Milesight LoRaWAN® IoT gateways and Milesight IoT Cloud.



. .

Features
  • Suitable for various doors/windows of different materials
  • supports mounting tamper detection
  • LED for network status, open/close status, tamper and low battery indication
  • Ultra-wide-distance transmission up to line of sight of 15km
  • Built-in 1200 mAh replaceable battery can work continuously for 2 years
  • Equipped with NFC for one-touch configuration and supports card emulation mode
  • Functions well with standard LoRaWAN® gateways and network servers
  • Compliant with Milesight IoT Cloud
Details
Manufacturer's Code WS301-915M
Frequency AU915/AS923
Tx Power 22dBm
Sensitivity -137dBm @ 300bps
Mode OTAA/ABP Class A
Detection Distance 15-20 mm
Buttons 1 × Reset Button (Internal), 1 × Tampering Button
LED Indicator 1
Configuration NFC Configuration via Mobile App
Alarms Open/Close Status, Tamper, Low Battery
Power Supply 1 × 1200 mAh ER14250 Li-SOCl2 battery
Battery Life* 4-7 years depending on SF
Operating Temperature -20°C to +60°C
Relative Humidity ?90% (non-condensing)
Ingress Protection IP20
Dimensions Sensor: 50.5 × 31 × 18.5 mm, Magnet: 30 × 13.5 × 10 mm
Installation On the flat surfaces with screws or 3M tapes
Details
Contains Magnetic Contact Sensor, QSG, mounting screws/3M tape
Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

  • Milesight IoT

  • HeadingMilesight LoRaWAN AS923 Magnetic Contact IoT Switch

Description
Milesight LoRaWAN AS923 Magnetic Contact IoT Switch
Milesight LoRaWAN AS923 Magnetic Contact IoT Switch. The WS301 simply enables you to know when someone enters the office/building through door/window or whether or not something has been moved. The small magnet is placed inside the portable part, while the sensor is inside the fixed part that can be attached to doors/windows or other objects. With minimalistic style and its compact size, the wire-free WS301 can be easily mounted on the doors, panes, or cabinets, greatly providing real applications for smart homes, smart offices or smart factories. With LoRaWAN technology, one of the most low power consumption technologies, the Milesight WS301 can work up to almost 2 years without having to replace the battery. Compliant with Milesight LoRaWAN® IoT gateways and Milesight IoT Cloud.



. .

Features
  • Suitable for various doors/windows of different materials
  • supports mounting tamper detection
  • LED for network status, open/close status, tamper and low battery indication
  • Ultra-wide-distance transmission up to line of sight of 15km
  • Built-in 1200 mAh replaceable battery can work continuously for 2 years
  • Equipped with NFC for one-touch configuration and supports card emulation mode
  • Functions well with standard LoRaWAN® gateways and network servers
  • Compliant with Milesight IoT Cloud
Details
Manufacturer's Code WS301-915M
Frequency AU915/AS923
Tx Power 22dBm
Sensitivity -137dBm @ 300bps
Mode OTAA/ABP Class A
Detection Distance 15-20 mm
Buttons 1 × Reset Button (Internal), 1 × Tampering Button
LED Indicator 1
Configuration NFC Configuration via Mobile App
Alarms Open/Close Status, Tamper, Low Battery
Power Supply 1 × 1200 mAh ER14250 Li-SOCl2 battery
Battery Life* 4-7 years depending on SF
Operating Temperature -20°C to +60°C
Relative Humidity ?90% (non-condensing)
Ingress Protection IP20
Dimensions Sensor: 50.5 × 31 × 18.5 mm, Magnet: 30 × 13.5 × 10 mm
Installation On the flat surfaces with screws or 3M tapes
Details
Contains Magnetic Contact Sensor, QSG, mounting screws/3M tape
Brand

Milesight IoT

Warranty

1 Year
