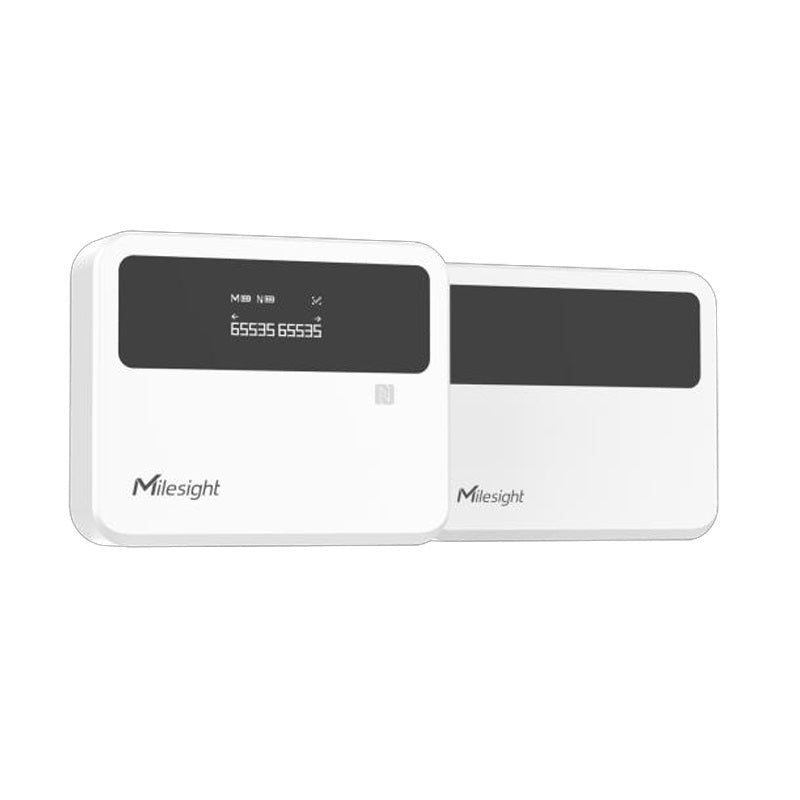

Milesight LoRaWAN AS923 IR Breakbeam IoT People Counter

Milesight LoRaWAN AS923 IR Breakbeam IoT People Counter

VS360-915M

$478.40

Tax included.

15 items available
Select quantity
Description
Milesight LoRaWAN AS923 IR Breakbeam IoT People Counter VS360-915M
Milesight LoRaWAN AS923 IR Breakbeam People Counter. The VS360 is a people counting sensor that is based on IR Breakbeam technology. Equipped with two devices, the principle is that the target blocks the infrared beam in the defined area for counting, so it is not affected by the ambient temperature and the color of the target clothes. Adjusting the current of the node device reduces range and power consumption which extends the battery life. As a Milesight D2D controller, the VS360 seamlessly communicates with other Milesight D2D agent devices, establishing more possible connections and paving the way for smoother operations. With easy configuration and wireless detection, the VS360 facilitates simple deployment and connectivity. Perfect for knowing the number of people and triggering other sensors or appliances easily.



. .

Features
  • Bi-Directional People Counting
  • Leveraging Infrared Beams
  • Strong Environmental Adaptability
  • Cost-Effective Accurate Performance
  • 100% Privacy Protection (GDPR Compliant)
  • Long Battery Life up to 3 Years
  • Wireless Deployment
Details
Manufacturer's Code VS360-915M
Technology IR Breakbeam
Installation Height 0.7m ~ 1.2m
Detection Range 1.2m ~ 3 m
Detection Rate1 High Traffic Period Mode: Up to 90% (Single Person: Up to 99%), Low Traffic Period Mode: Up to 85% (Single Person: Up to 99%)
Bi-directional Counting support
Protocol LoRaWAN, Milesight D2D
Frequency US915/AU915/KR920/AS923-1&2&3&4
Tx Power 22 dBm (915 MHz)
Sensitivity -137dBm
Mode OTAA/ABP Class A
Screen 1 × OLED Screen for Master Device, 1 × LED Indicator for Node Device
Button 1 × Power Button for Both devices, 1 × Reset Button (Internal for Master Device)
Configuration NFC Configuration via Mobile App (Master Device)
Advanced Feature Hibernate Mode, Data Storage, Data Retransmission, Data Retrievability, Milesight D2D Controller
Power Supply 2 x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries for per device
Battery Life Master device: Around 3 Years, (10-min Report Interval, 12 Working Hour per Day, 25°C), Node device: High Traffic Period Mode: Around 3 Years, Low Traffic Period Mode: Around 4 Years, (12 Working Hour per Day, 25°C)
Operating Temperature -10°C ~ 60°C
Relative Humidity 0% - 95% (Non-condensing)
Ingress Protection IP30
Dimension 76 x 62 x 20 mm ( 2.99 x 2.44 x 0.79 in)
Material & Colour PC (Flame Retardant), Black/White
Installation Wall Mount
Details
Contains 1 x Master device and 1 x Node Device, 2 x2700 mAhER14505 Li-SOCl2 Replaceable Batteries, Mounting Kit
Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

  • Milesight IoT

  • HeadingMilesight LoRaWAN AS923 IR Breakbeam IoT People Counter

Description
Milesight LoRaWAN AS923 IR Breakbeam IoT People Counter VS360-915M
Milesight LoRaWAN AS923 IR Breakbeam People Counter. The VS360 is a people counting sensor that is based on IR Breakbeam technology. Equipped with two devices, the principle is that the target blocks the infrared beam in the defined area for counting, so it is not affected by the ambient temperature and the color of the target clothes. Adjusting the current of the node device reduces range and power consumption which extends the battery life. As a Milesight D2D controller, the VS360 seamlessly communicates with other Milesight D2D agent devices, establishing more possible connections and paving the way for smoother operations. With easy configuration and wireless detection, the VS360 facilitates simple deployment and connectivity. Perfect for knowing the number of people and triggering other sensors or appliances easily.



. .

Features
  • Bi-Directional People Counting
  • Leveraging Infrared Beams
  • Strong Environmental Adaptability
  • Cost-Effective Accurate Performance
  • 100% Privacy Protection (GDPR Compliant)
  • Long Battery Life up to 3 Years
  • Wireless Deployment
Details
Manufacturer's Code VS360-915M
Technology IR Breakbeam
Installation Height 0.7m ~ 1.2m
Detection Range 1.2m ~ 3 m
Detection Rate1 High Traffic Period Mode: Up to 90% (Single Person: Up to 99%), Low Traffic Period Mode: Up to 85% (Single Person: Up to 99%)
Bi-directional Counting support
Protocol LoRaWAN, Milesight D2D
Frequency US915/AU915/KR920/AS923-1&2&3&4
Tx Power 22 dBm (915 MHz)
Sensitivity -137dBm
Mode OTAA/ABP Class A
Screen 1 × OLED Screen for Master Device, 1 × LED Indicator for Node Device
Button 1 × Power Button for Both devices, 1 × Reset Button (Internal for Master Device)
Configuration NFC Configuration via Mobile App (Master Device)
Advanced Feature Hibernate Mode, Data Storage, Data Retransmission, Data Retrievability, Milesight D2D Controller
Power Supply 2 x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries for per device
Battery Life Master device: Around 3 Years, (10-min Report Interval, 12 Working Hour per Day, 25°C), Node device: High Traffic Period Mode: Around 3 Years, Low Traffic Period Mode: Around 4 Years, (12 Working Hour per Day, 25°C)
Operating Temperature -10°C ~ 60°C
Relative Humidity 0% - 95% (Non-condensing)
Ingress Protection IP30
Dimension 76 x 62 x 20 mm ( 2.99 x 2.44 x 0.79 in)
Material & Colour PC (Flame Retardant), Black/White
Installation Wall Mount
Details
Contains 1 x Master device and 1 x Node Device, 2 x2700 mAhER14505 Li-SOCl2 Replaceable Batteries, Mounting Kit
Brand

Milesight IoT

Warranty

1 Year
