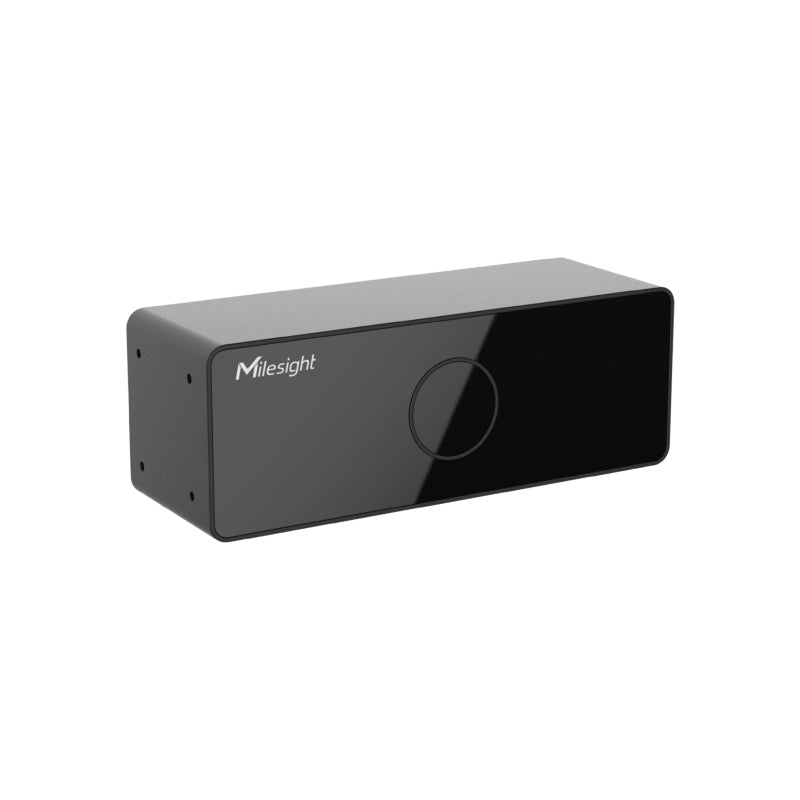

Name: MIlesight LoRaWAN AS923/AU915 VS132 3D ToF People Counting IoT Sensor
Brand: Milesight IoT
SKU: VS132-915M
Price: 1865.30 NZD
Availability: InStock

MIlesight LoRaWAN AS923/AU915 VS132 3D ToF People Counting IoT Sensor

VS132-915M

$1,865.30

Tax included.

1 items available

Select quantity

Description

MIlesight LoRaWAN AS923/AU915 VS132 3D ToF People Counting IoT Sensor

The Milesight VS132 is a LoRaWAN IoT 3D ToF people counting sensor designed to count the number of people entering and exiting. It uses the most advanced Time-of-Flight technology, the VS132 only obtains depth maps instead of images to protect privacy and provide a high level of accuracy. Up to 99.5%. Cooperating with a Milesight LoRaWAN® gateway and the Milesight IoT Cloud solution, it allows users to monitor the flow of people and trigger linkage to control other devices via browser or mobile App remotely. With easy installation, the VS132 has great use in entrances or corridors of retail stores, malls, offices, subways, etc.

Perfect for smart buildings, smart city deployments or industrial use-cases.

. .

Features

Up to 99.5% accuracy basing on advanced 3D Time-of-Flight technology
Obtain depth map without images capturing, free from privacy concerns
Effective in low-light or complete darkness environments
Bi-directional Counting
Smart U-turn counting to filter redundant counting of people wandering the area
Store a million data records locally
DC or PoE power supply optional
Exquisite design for multiple installation scenarios
Equipped with Wi-Fi and Ethernet port for web GUI configuration
Acquire people counting data either from LoRaWAN® or Ethernet port (HTTP Post, CGI)
Functions well with standard LoRaWAN® gateways and network servers
Quick and easy management with Milesight IoT Cloud and Milesight DeviceHub

Details
Manufacturer's Code	VS132-915M
Frequency	AU915/AS923
Tx Power	22dBm
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class A
ToF FoV	92.5 ° Horizontal, 67 ° Vertical
Detection Range	0.5 - 3m
Installation Height	? 3m
Accuracy	99.5%
Resolution	1mm
Local Storage	1,000,000 data records
Advanced Setting	Entrance and exit area customization
Wi-Fi Interface	IEEE 802.11 b/g/n, 2.4GHz, only support configuration
Ethernet Port	1 × RJ45 10/100 Mbps Ethernet Port (PoE PD)
Power Input	2-pin 5.08 mm Terminal Block
Power Supply	12 VDC, 2A by Terminal Block, 1 × 802.3 at PoE input
Power Consumption	Typical 7.5 W, max 28 W
Operating Temperature	-10°C ~ +60°C
Storage Temperature	-20°C ~ +60°C
Relative Humidity	0 ~ 95% (Non-condensing)
Color & Material	Black, Aluminum Alloy
Weight	296 g
Dimension	140 × 50 × 50 mm
Installation	Ceiling Mounting, Wall Mounting, Embedded Mounting

Details
Contains	Sensor, QSG, Mounting Screws, Fixing screw, Warranty Card

Warranty

2 Years

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

Milesight IoT
HeadingMIlesight LoRaWAN AS923/AU915 VS132 3D ToF People Counting IoT Sensor

Description

MIlesight LoRaWAN AS923/AU915 VS132 3D ToF People Counting IoT Sensor

Features

Up to 99.5% accuracy basing on advanced 3D Time-of-Flight technology
Obtain depth map without images capturing, free from privacy concerns
Effective in low-light or complete darkness environments
Bi-directional Counting
Smart U-turn counting to filter redundant counting of people wandering the area
Store a million data records locally
DC or PoE power supply optional
Exquisite design for multiple installation scenarios
Equipped with Wi-Fi and Ethernet port for web GUI configuration
Acquire people counting data either from LoRaWAN® or Ethernet port (HTTP Post, CGI)
Functions well with standard LoRaWAN® gateways and network servers
Quick and easy management with Milesight IoT Cloud and Milesight DeviceHub

Details
Manufacturer's Code	VS132-915M
Frequency	AU915/AS923
Tx Power	22dBm
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class A
ToF FoV	92.5 ° Horizontal, 67 ° Vertical
Detection Range	0.5 - 3m
Installation Height	? 3m
Accuracy	99.5%
Resolution	1mm
Local Storage	1,000,000 data records
Advanced Setting	Entrance and exit area customization
Wi-Fi Interface	IEEE 802.11 b/g/n, 2.4GHz, only support configuration
Ethernet Port	1 × RJ45 10/100 Mbps Ethernet Port (PoE PD)
Power Input	2-pin 5.08 mm Terminal Block
Power Supply	12 VDC, 2A by Terminal Block, 1 × 802.3 at PoE input
Power Consumption	Typical 7.5 W, max 28 W
Operating Temperature	-10°C ~ +60°C
Storage Temperature	-20°C ~ +60°C
Relative Humidity	0 ~ 95% (Non-condensing)
Color & Material	Black, Aluminum Alloy
Weight	296 g
Dimension	140 × 50 × 50 mm
Installation	Ceiling Mounting, Wall Mounting, Embedded Mounting
