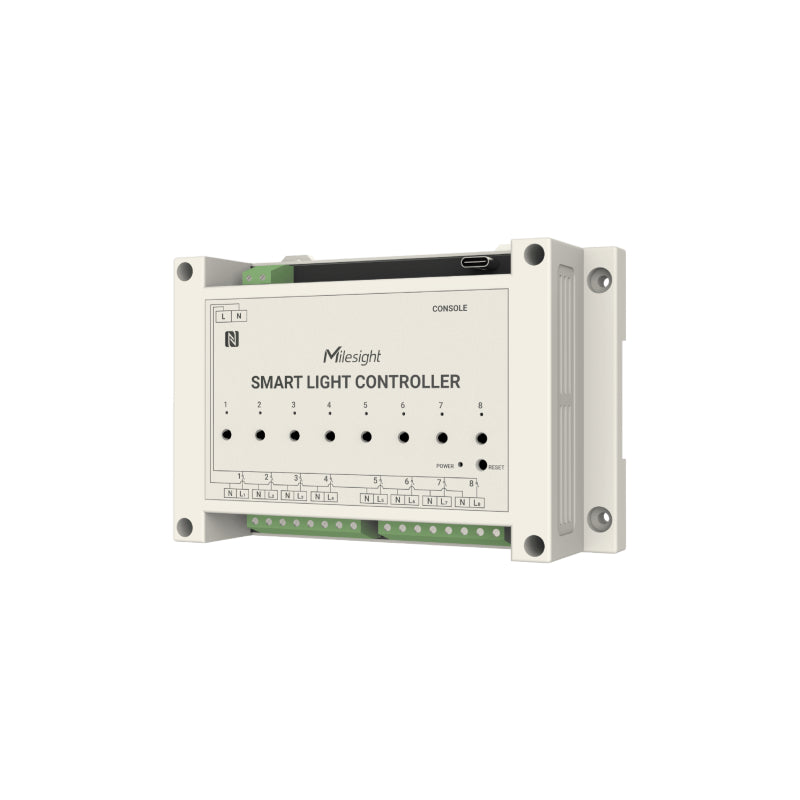

Name: Milesight LoRaWAN AS923/AU915 Smart Light Controller
Brand: Milesight IoT
SKU: WS558-915M PN LN
Price: 347.30 NZD
Availability: InStock

Milesight LoRaWAN AS923/AU915 Smart Light Controller

WS558-915M PN LN

$347.30

Tax included.

1 items available

Select quantity

Description

Milesight LoRaWAN AS923/AU915 Smart Light Controller

Milesight WS558 LN is a LoRaWAN® Smart Light Controller that allows occupants to centrally control the lights on eight circuits. With remote and time-based ON/OFF, WS558 enables to improve the overall efficiency of electricity consumption in buildings such as offices, shopping malls, hospitals and schools.

WS558 is a LoRaWAN® Smart Light Controller for monitoring and controlling lights locally or remotely. With 2 circuit typesand8switches, it fits different rooms without the needofre-wiring,reducing the renovation costs. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, WS558canbe monitored and controlled via webpage or mobile Appremotelyand triggered by other Milesight sensors. Besides, WS558supportsMilesight D2D communication protocol, which can set up connection quickly and be controlled without gateway. WS558 can be widely used for wireless control of indoor lights, fans, heaters, machines, etc.

. .

Features

Centralized control of 8 lighting circuits and each circuit can be controlled respectively
More lights connected to one controller, fewer switch panels, lower wiring costs
Set timers and schedules to make lights function automatically
Up to 18 hours turn-off delay
Remote control from a smartphone anywhere
Milesight D2D protocol enables the communication among Milesight LoRaWAN® node devices without a LoRaWAN® gateway.
The power consumption measurement
In case of any power failure, the present settings will be saved

Details
Input Voltage	100~240 VAC, 50~60 Hz
Outputs	8 Active Outputs
Capacitive & Inductive Load	Maximum 5A per output, total 16A
Resistive Load	Maximum 10A per output, total 16A
Electrical Measurement Stats	Voltage, Current , Power Factor, Power, Power consumption
Protocols	LoRaWAN®, Milesight D2D
Frequency	AS923, AU915
Tx Power	22 dBm 915 MHz
Sensitivity	-137dBm
Lora Class	OTAA/ABP Class C
Configuration options	NFC, USB Type-C or Downlink
Switch Control	Local Press or Remote Control
Advanced Features	Multicast, Remote Schedule, Overcurrent Protection, Milesight D2D
Operating Temperature	-20°C to +60°C
Relative Humidity	? 95% (Non-condensing)
Dimensions	145 × 90 × 40 mm
Installation options	Wall Mounting, DIN Rail Mounting

Details
Contents	Lighting Controller, Warranty Card, QSG, DIN Rail Mount, Wall Screws

Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)
