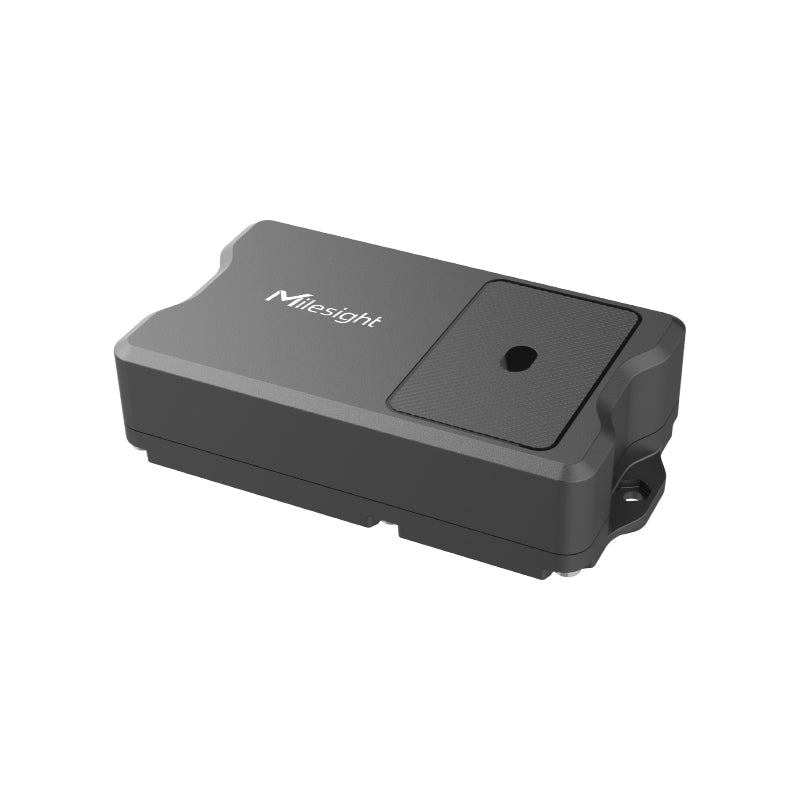

Name: Milesight LoRaWAN AS923/AU915 EM400-MUD ToF Laser Distance IoT Sensor
Brand: Milesight IoT
SKU: EM400-MUD-915M
Price: 386.40 NZD
Availability: InStock

Milesight LoRaWAN AS923/AU915 EM400-MUD ToF Laser Distance IoT Sensor

EM400-MUD-915M

$386.40

Tax included.

1 items available

Select quantity

Description

Milesight LoRaWAN AS923/AU915 EM400-MUD Multifunctional Ultrasonic Distance IoT Sensor with IP67 Case

EM400-MUD is a versatile device among EM400 series, that are equipped with multiple application modes catering to a variety of scenarios such as smart waste management, smart parking and other distance / level measurement applications. EM400-MUD constitutes a powerful solution with its various modes, extended battery life, and robust build, providing a cost-effective and reliable option to enhance efficiency.

Leveraging ultrasonic distance detection, EM400-UDL ensures a stable and reliable performance while detecting different solid or liquid mediums. Featuring non-contact distance measurement, the probe of EM400-UDL will remain unaffected or contaminated by the medium detected, and deliver highly accurate measurement.

The EM400 MUD come from factory with 3 Preset Usage modes Standard, Bin Mode and Parking lot Mode each designed to cater for the specific needs of each application

Perfect for smart buildings, smart city deployments or industrial use-cases.

. .

Features

Non-Contact Distance Measurement
Three Pre-set Modes for Seamless User Experience
Standard Mode/Parking Lot Mode (LoRaWAN version)/Bin Mode
Ultrasonic Distance Detection with Small Blind Spots
Long-Lasting up to 10 Years Battery Life
Rugged and Reliable IP67 Rated Enclosure
IP67 Rated
3-in-1 Sensor For Powerful Performance
Ultrasonic Distance Sensor, 3-axis Accelerometer and NTC Thermistor

Details
Manufacturer's Code	EM400-MUD-915M
Frequency	AU915/AS923
Tx Power	16dBm
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class A
Detection Range	3 - 450cm
Detection Accuracy	±1 cm (- 15°C ~ 60°C)
Resolution	1mm
Temperature Range	-40° - 125°C
Resolution	0.1°C
Configuration	Mobile APP(NFC)
Power Supply	2 x 9000 mAh ER26500 Li-SOCL2 Batteries
Battery Life	Around 10 years (standard mode-10 min interval, bin mode-20 min interval, 25°C)
Operating Temperature	-30°C to +70°C
Ingress Protection	IP67
Dimension	118 × 65 × 80 mm
Material and Colour	ABS + PC (Flame Retardant), Black gray
Mounting	On the Flat Surfaces with Screws

Details
Contains	Sensor, QSG, Mounting Screws, Fixing screw, Warranty Card
