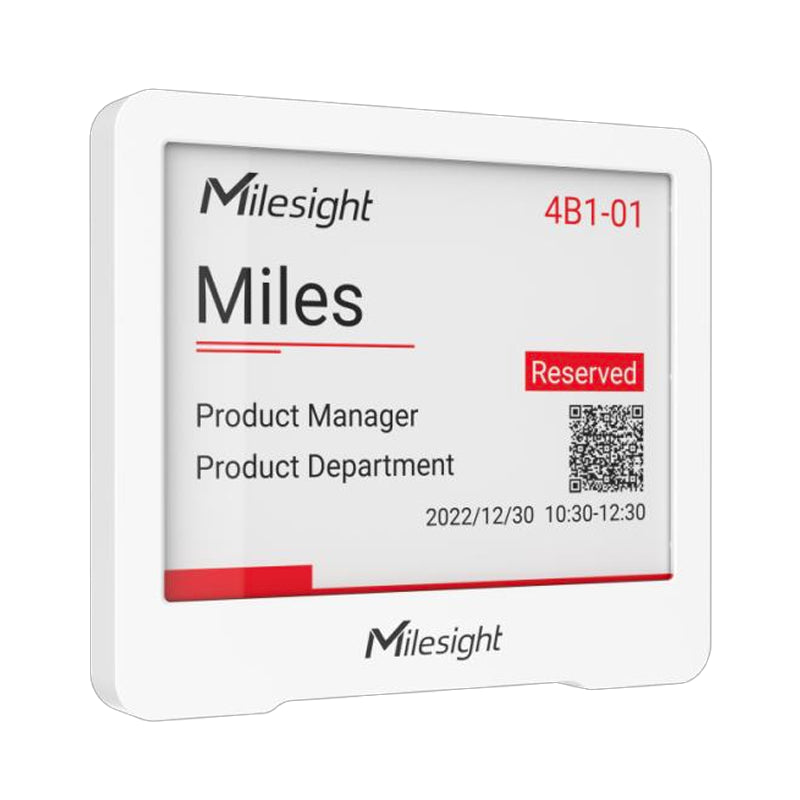

Name: MIlesight LoRaWAN AS923/AU915 DS3604 IoT E-Ink Display
Brand: Milesight IoT
SKU: DS3604-915M
Price: 380.65 NZD
Availability: InStock

MIlesight LoRaWAN AS923/AU915 DS3604 IoT E-Ink Display

DS3604-915M

$380.65

Tax included.

2 items available

Select quantity

Description

Milesight LoRaWAN AS923/AU915 DS3604 IoT E-Ink Display

Milesight LoRaWAN AS923/AU915 DS3604 IoT E-Ink Display. E-Ink digital paper is a form of ink made from micro-particles in a thin film layer. The e-ink display is bistable, which allows the image on the e-ink screen to be retained even when all power is removed. Pre-customized Templates Are Flexible for Different Scenarios, such as Workplace, Hotel, Hospital, Retail Store, Etc. Up to 150 Languages Including English, Spanish, French, Japanese, Portuguese, Chinese (Simplified & Traditional), etc. (Exclude Hebrew, Arabic & Thai).

Perfect for smart buildings, smart city deployments or industrial use-cases.

. .

Features

Bigger E-ink Screen Featuring Red/White/Black Color Display
Customized Templates in Multiple Modules and Languages
Low Power Consumption with up to 5 Years Battery Life with 3 × 590mAh CR2450 Lithium Batteries
Open API and a LoRaWAN Button Enable Various Applications
support Local and Remote Control for Bulk Deployment
Flexible, Shatterproof and Light 4.2 Inches Screen
Bi-stable EPD (E-ink Display) Black, White and Red Colors
400 × 300 Pixels Display with Near 180° Viewing Angle

Details
Manufacturer's Code	DS3604-915M
Frequency	AU915/AS923-1&2&3&4
Technology	LoRaWAN®
Tx Power	16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity	-137dBm
Mode	OTAA/ABP Class A/Class B ( Default OTAA Class B)
E-ink Screen	4.2-inch Black & White & Red E-Ink Screen
Resolution	400 x 300 Pixels
DPI	119
Viewing Angle	180°
Refresh Rate	16s (10 – 40°C)
Display Character	Latin alphabet, English alphabet, Cyrillic alphabet, Greek alphabet, Chinese character, Japanese character, and Hangul
Display Languages	support Displaying up to 150 Languages Including English, Chinese (Simplified & Traditional) , Spanish, French, Japanese, Portuguese, etc. (Exclude Hebrew, Arabic & Thai)
Button	1 x Reset Button (Internal) + 1 x Screen Button
Buzzer	1 x Buzzer
Configuration	NFC Configuration via Mobile App
Power Supply	3 × 590mAh CR2450 Lithium Batteries
Battery Life	Around 5 Years (Class A Mode + 1 Screen Refresh per Day) Around 1 Year (Class B Mode + 12 Screen Refreshes per Day)
Operating Temperature	0°C to +40°C (0? to +104?)
Operating Humidity	0% to 95% (non-condensing) below 25°C/77?
Ingress Protection	IP30
Color & Material	White, ABS + PC
Dimension	99 × 87 × 10.5 mm (3.90 × 3.43 × 0.41 in)
Installation	3M Tape Mounting, Wall Screw Mounting

Details
Contains	Sensor, QSG, Mounting Screws, Fixing screw, Warranty Card

Warranty

2 Years

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

Milesight IoT
HeadingMIlesight LoRaWAN AS923/AU915 DS3604 IoT E-Ink Display

Description

Milesight LoRaWAN AS923/AU915 DS3604 IoT E-Ink Display

Features

Bigger E-ink Screen Featuring Red/White/Black Color Display
Customized Templates in Multiple Modules and Languages
Low Power Consumption with up to 5 Years Battery Life with 3 × 590mAh CR2450 Lithium Batteries
Open API and a LoRaWAN Button Enable Various Applications
support Local and Remote Control for Bulk Deployment
Flexible, Shatterproof and Light 4.2 Inches Screen
Bi-stable EPD (E-ink Display) Black, White and Red Colors
400 × 300 Pixels Display with Near 180° Viewing Angle

Details
Manufacturer's Code	DS3604-915M
Frequency	AU915/AS923-1&2&3&4
Technology	LoRaWAN®
Tx Power	16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity	-137dBm
Mode	OTAA/ABP Class A/Class B ( Default OTAA Class B)
E-ink Screen	4.2-inch Black & White & Red E-Ink Screen
Resolution	400 x 300 Pixels
DPI	119
Viewing Angle	180°
Refresh Rate	16s (10 – 40°C)
Display Character	Latin alphabet, English alphabet, Cyrillic alphabet, Greek alphabet, Chinese character, Japanese character, and Hangul
Display Languages	support Displaying up to 150 Languages Including English, Chinese (Simplified & Traditional) , Spanish, French, Japanese, Portuguese, etc. (Exclude Hebrew, Arabic & Thai)
Button	1 x Reset Button (Internal) + 1 x Screen Button
Buzzer	1 x Buzzer
Configuration	NFC Configuration via Mobile App
Power Supply	3 × 590mAh CR2450 Lithium Batteries
Battery Life	Around 5 Years (Class A Mode + 1 Screen Refresh per Day) Around 1 Year (Class B Mode + 12 Screen Refreshes per Day)
Operating Temperature	0°C to +40°C (0? to +104?)
Operating Humidity	0% to 95% (non-condensing) below 25°C/77?
Ingress Protection	IP30
Color & Material	White, ABS + PC
Dimension	99 × 87 × 10.5 mm (3.90 × 3.43 × 0.41 in)
Installation	3M Tape Mounting, Wall Screw Mounting
