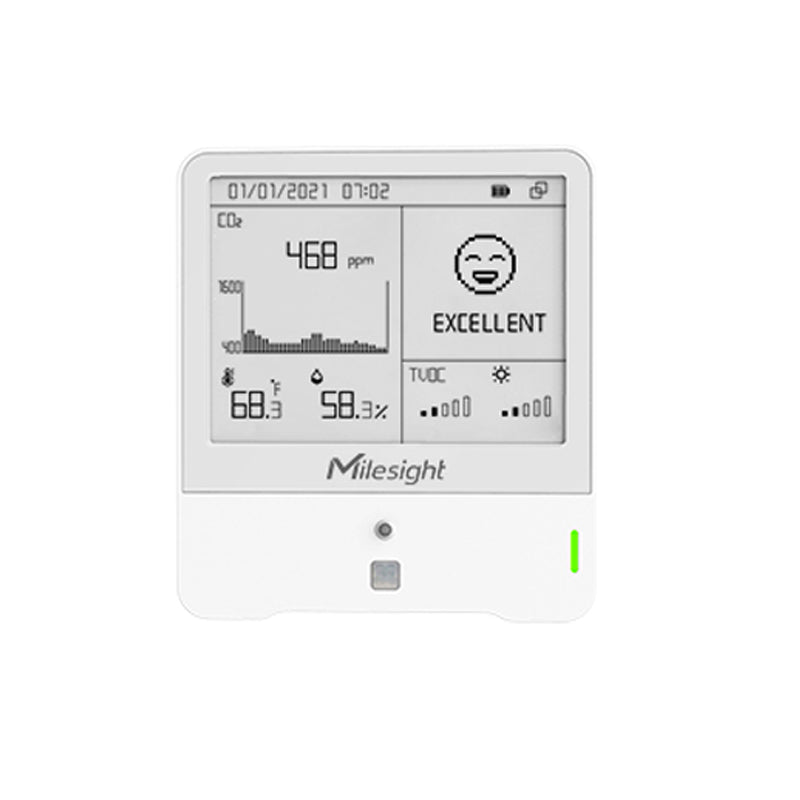

Name: Milesight LoRaWAN 7 in 1 Indoor Ambience Monitoring IoT Sensor
Brand: Milesight IoT
SKU: AM307-915M
Price: 890.10 NZD
Availability: InStock

Milesight LoRaWAN 7 in 1 Indoor Ambience Monitoring IoT Sensor

AM307-915M

$890.10

Tax included.

11 items available

Select quantity

Description

Milesight AM307-915M LoRaWAN 7 in 1 Indoor Ambience Monitoring IoT Sensor - Temp, Humidity, PIR, Light, TVOC, Barometric Pressure and CO2

The Milesight AM307 is a compact indoor ambience monitoring IoT sensor for measurement of temperature, humidity, light, CO2 concentration, TVOC, barometric pressure, and motion. The data will be shown on the E-ink screen in real-time, which helps to measure the indoor environment and comfort. The AM307 series is widely used for business offices, stores, classrooms, hospitals, homes, etc.

. .

Features

Integrated with multiple sensors: humidity, temperature, CO2, light, barometric pressure,
Multiple display modes and clear emoticon to easily understand the comfort levels via screen
Equipped with traffic LED and buzzer to indicate device status and threshold alarms
support more than 20,000 data records store locally
Compliant with standard LoRaWAN® gateways and network servers
Perfect device for Environmental Monitoring for Business, Education and Homes

Details
Model	AM307-915M
Frequency	AU915 or AS923 switchable
Tx Power	22dBm
Sensitivity	-137dBm @300bps
Work Mode	Class A
Temperature Range	-40°C - 85°C
Accuracy	± 1°C
Resolution	0.1°C
Humidity Range	0% - 100% RH
Accuracy	± 3%
Resolution	0.5% RH
PIR Detection Area	80 ° Horizontal, 55 ° Vertical
Detection Range	5 m
Status	Vacant/Occupied
Light Range	0-60000 Lux (display as 6 levels, 0-5)
TVOC Range	0-500 (IAQ Index)
Accuracy	±15 %
Barometric Pressure Range	300 - 1100 hPa (-40°C - 85°C)
Accuracy	±0.6 hPa
Resolution	0.1 hPa
Carbon Dioxide (CO2) Range	400 - 5000 ppm
Accuracy	±30 ppm or ±3 % of reading
Resolution	1 ppm
Display	4.2-inch Black & White E-Ink Screen
Buttons	1 × Power Button + 1 × Reset Button
LED & Buzzer	1 × Traffic Light Status Indicator + 1 × Buzzer
Power Supply	4 × 2700 mAh ER14505 Li-SOCl2 battery
Operating Temperature	-20°C - 60°C (E-Ink Screen: 0°C - 40°C)
Relative Humidity	10% - 90% (non-condensing)
Ingress Protection	IP30
Dimension	100.8 × 114 × 22 mm
Installation	Wall Mounting

Details
Contains	4 x AA Batteries, Mounting bracket, Mounting screws, warranty, QSG.

Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

Milesight IoT
HeadingMilesight LoRaWAN 7 in 1 Indoor Ambience Monitoring IoT Sensor

Description

Milesight AM307-915M LoRaWAN 7 in 1 Indoor Ambience Monitoring IoT Sensor - Temp, Humidity, PIR, Light, TVOC, Barometric Pressure and CO2

Features

Integrated with multiple sensors: humidity, temperature, CO2, light, barometric pressure,
Multiple display modes and clear emoticon to easily understand the comfort levels via screen
Equipped with traffic LED and buzzer to indicate device status and threshold alarms
support more than 20,000 data records store locally
Compliant with standard LoRaWAN® gateways and network servers
Perfect device for Environmental Monitoring for Business, Education and Homes

Details
Model	AM307-915M
Frequency	AU915 or AS923 switchable
Tx Power	22dBm
Sensitivity	-137dBm @300bps
Work Mode	Class A
Temperature Range	-40°C - 85°C
Accuracy	± 1°C
Resolution	0.1°C
Humidity Range	0% - 100% RH
Accuracy	± 3%
Resolution	0.5% RH
PIR Detection Area	80 ° Horizontal, 55 ° Vertical
Detection Range	5 m
Status	Vacant/Occupied
Light Range	0-60000 Lux (display as 6 levels, 0-5)
TVOC Range	0-500 (IAQ Index)
Accuracy	±15 %
Barometric Pressure Range	300 - 1100 hPa (-40°C - 85°C)
Accuracy	±0.6 hPa
Resolution	0.1 hPa
Carbon Dioxide (CO2) Range	400 - 5000 ppm
Accuracy	±30 ppm or ±3 % of reading
Resolution	1 ppm
Display	4.2-inch Black & White E-Ink Screen
Buttons	1 × Power Button + 1 × Reset Button
LED & Buzzer	1 × Traffic Light Status Indicator + 1 × Buzzer
Power Supply	4 × 2700 mAh ER14505 Li-SOCl2 battery
Operating Temperature	-20°C - 60°C (E-Ink Screen: 0°C - 40°C)
Relative Humidity	10% - 90% (non-condensing)
Ingress Protection	IP30
Dimension	100.8 × 114 × 22 mm
Installation	Wall Mounting
