Name: Milesight FT101 LoRaWAN AU915/AS923 IoT Field Tester
Brand: Milesight IoT
SKU: FT101-915M
Price: 1616.90 NZD
Availability: InStock

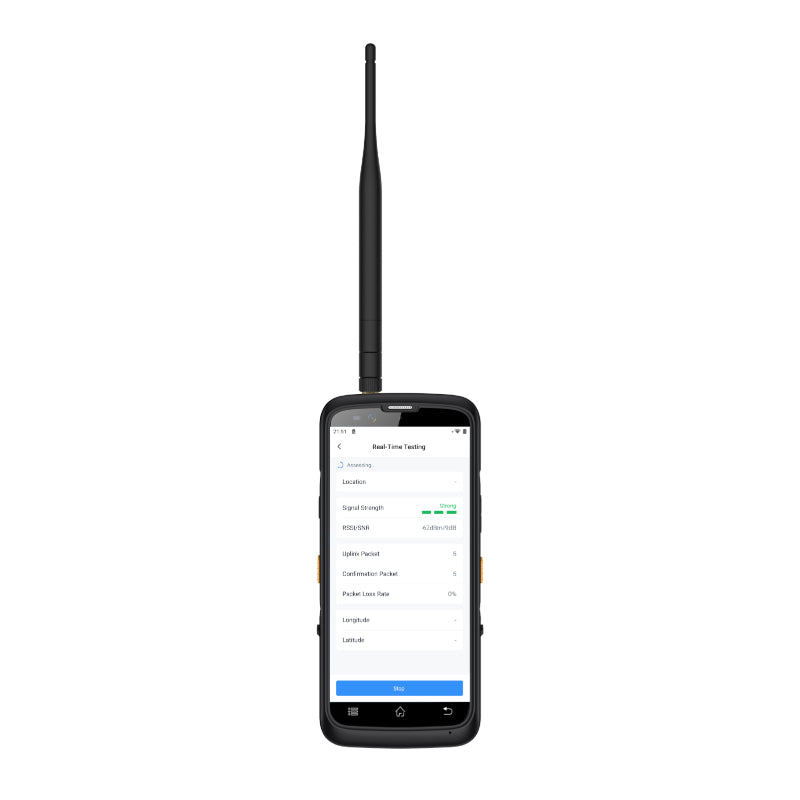

Milesight FT101 LoRaWAN AU915/AS923 IoT Field Tester

FT101-915M

$1,616.90

Tax included.

10 items available

Select quantity

Description

Milesight FT101 LoRaWAN AU915/AS923 IoT Field Tester

Milesight Field Tester FT101 is a portable LoRaWAN® network testing device. With different kinds of antennas, it can support global LoRaWAN® frequencies to record the signal status and packet loss rate to monitor the network status from field and verify the coverage of different LoRaWAN® gateways, to optimize the best places to deploy LoRaWAN® network devices. Equipped with a 5.72-inch touchscreen display, users are able to operate the signal test procedure and monitor the real-time network status friendly. With a built-in battery and type-C port, it can work for 8 hours and support type-C power bank charge to bring the device everywhere easily.

. .

Features

Real-Time Network Signal Testing and Analysis
5.72 Inch HD Touch Screen
Full Frequency Band Testing Capability
Records Signal Test Results with GPS Location
Seamless Report Export and Data Analysis
Long-lasting Battery Life
Compliant with standard LoRaWAN® gateways and network servers
Quick and easy device management with Milesight IoT Cloud or the Scopious Network

Details
Model	FT101-915M
Frequency	AU915 or AS923 switchable
Tx Power	22dBm
Sensitivity	-137dBm @300bps
Work Mode	OTAA Class A
Screen	5.72-inch TP LCD Touch Screen
Resolution	1440 x 720 Pixels
CPU	Octa-core MTK6762, 2 GHz
Memory	4GB RAM + 64GB ROM
Operating System	Android 12
Wi-Fi Standard	802.11b/g/n 2.4GHz
NFC	support ISO/IEC 14443A Protocol, Reading Distance: 1-3cm
Cellular Bands	B1/B3/B5/B7/B8/B20
GNSS	GPS/Glonass/Beidou/Galileo
Rear Camera	13MP, Autofocus with Flashlight
Battery Life	Around 8 Hours (Standby Mode: >300h)
Battery Size	4300mAh Lithium-iron Chargeable Battery
Operating Temperature	-10°C ~ +50°C
Relative Humidity	0 ~ 95% (Non-condensing)
Dimension	178 × 83 × 17 mm
Weight	242g (Without Antenna)

Details
Contains	FT101 Android Field Tester, AU/NZ Charger, Warranty card, Quick Start guide

Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

Milesight IoT
HeadingMilesight FT101 LoRaWAN AU915/AS923 IoT Field Tester

Description

Milesight FT101 LoRaWAN AU915/AS923 IoT Field Tester

Features

Real-Time Network Signal Testing and Analysis
5.72 Inch HD Touch Screen
Full Frequency Band Testing Capability
Records Signal Test Results with GPS Location
Seamless Report Export and Data Analysis
Long-lasting Battery Life
Compliant with standard LoRaWAN® gateways and network servers
Quick and easy device management with Milesight IoT Cloud or the Scopious Network

Details
Model	FT101-915M
Frequency	AU915 or AS923 switchable
Tx Power	22dBm
Sensitivity	-137dBm @300bps
Work Mode	OTAA Class A
Screen	5.72-inch TP LCD Touch Screen
Resolution	1440 x 720 Pixels
CPU	Octa-core MTK6762, 2 GHz
Memory	4GB RAM + 64GB ROM
Operating System	Android 12
Wi-Fi Standard	802.11b/g/n 2.4GHz
NFC	support ISO/IEC 14443A Protocol, Reading Distance: 1-3cm
Cellular Bands	B1/B3/B5/B7/B8/B20
GNSS	GPS/Glonass/Beidou/Galileo
Rear Camera	13MP, Autofocus with Flashlight
Battery Life	Around 8 Hours (Standby Mode: >300h)
Battery Size	4300mAh Lithium-iron Chargeable Battery
Operating Temperature	-10°C ~ +50°C
Relative Humidity	0 ~ 95% (Non-condensing)
Dimension	178 × 83 × 17 mm
Weight	242g (Without Antenna)
