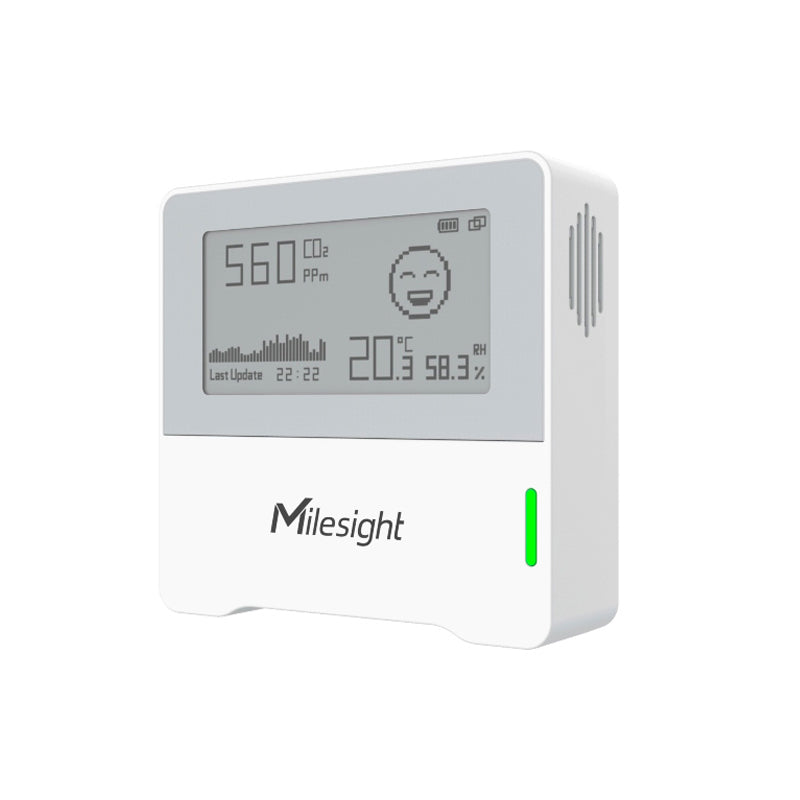

Name: Milesight AM103 Indoor Ambience Monitoring IoT LoRaWAN Sensor
Brand: Milesight IoT
SKU: AM103-915M
Price: 526.70 NZD
Availability: InStock

Milesight AM103 Indoor Ambience Monitoring IoT LoRaWAN Sensor

AM103-915M

$526.70

Tax included.

12 items available

Select quantity

Description

Milesight LoRaWAN IoT AM103 Indoor Ambience Monitoring Sensor - Temp, Humidity and CO2

The Milesight AM103 is a compact indoor ambience monitoring IoT sensor for measurement of temperature, humidity and CO2. These data will be shown on the E-ink screen in real-time, which allow to quantify the indoor environment and comfort. AM103 is widely used for office, store, classroom, hospital, etc. Apart from screen display, sensor data can also be transmitted using LoRaWAN®. With this low-power technology, AM103 can work for more than 3 years with 2 replaceable batteries. Combining with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely

. .

Features

Integrated with multiple sensors: humidity, temperature, CO2
Visual data and clear emoticons to understand the comfort level easily via E-Ink Screen
Equipped with traffic light LED to indicate device status and threshold alarms
More than 3 years battery life
Compliant with standard LoRaWAN® gateways and network servers
Built-in NFC for easy configuration
Perfect device for Environmental Monitoring for Business, Education and Homes

Details
Model	AM103
Technology	LoRaWAN®
Frequency	AU915/AS923-1,2,3,4
Tx Power	22 dBm (915 MHz)
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class A
Temperature Range	-20°C to + 70°C
Accuracy	0°C to + 70°C (+/- 0.3°C), -20°C to 0°C (+/- 0.6°C)
Resolution	0.1°C
Humidity Range	0% to 100% RH
Accuracy	10% to 90% RH (± 3%), below 10% and above 90% RH (± 5%)
Resolution	0.5% RH
Carbon Dioxide (CO2) Range	400 to 5000 ppm
Accuracy	± (30 ppm + 3 % of reading)
Resolution	1 ppm
Display	AM103: 2.13-inch Black & White E-Ink Screen, AM103L: Not support
Button	1 × Power Button
LED	1 × Traffic Light Status Indicator
Configuration	Mobile App via NFC
Power Supply	2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
Operating Temperature	-20°C to +60°C (E-Ink Screen: 0°C - 40°C)
Relative Humidity	0% to 95% (non-condensing)
Ingress Protection	IP30
Dimension	68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in)
Installation	Wall Mounting

IoT Academy

Details
Contains	Sensor, 2 x Batteries, QSG, Mounting pack, Mounting Sticker, Warranty Card

Warranty

1 Year

Brand

Milesight IoT

Restock ETA (if applicable)

Product Details

Specifications

Milesight IoT
HeadingMilesight AM103 Indoor Ambience Monitoring IoT LoRaWAN Sensor

Description

Milesight LoRaWAN IoT AM103 Indoor Ambience Monitoring Sensor - Temp, Humidity and CO2

Features

Integrated with multiple sensors: humidity, temperature, CO2
Visual data and clear emoticons to understand the comfort level easily via E-Ink Screen
Equipped with traffic light LED to indicate device status and threshold alarms
More than 3 years battery life
Compliant with standard LoRaWAN® gateways and network servers
Built-in NFC for easy configuration
Perfect device for Environmental Monitoring for Business, Education and Homes

Details
Model	AM103
Technology	LoRaWAN®
Frequency	AU915/AS923-1,2,3,4
Tx Power	22 dBm (915 MHz)
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class A
Temperature Range	-20°C to + 70°C
Accuracy	0°C to + 70°C (+/- 0.3°C), -20°C to 0°C (+/- 0.6°C)
Resolution	0.1°C
Humidity Range	0% to 100% RH
Accuracy	10% to 90% RH (± 3%), below 10% and above 90% RH (± 5%)
Resolution	0.5% RH
Carbon Dioxide (CO2) Range	400 to 5000 ppm
Accuracy	± (30 ppm + 3 % of reading)
Resolution	1 ppm
Display	AM103: 2.13-inch Black & White E-Ink Screen, AM103L: Not support
Button	1 × Power Button
LED	1 × Traffic Light Status Indicator
Configuration	Mobile App via NFC
Power Supply	2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
Operating Temperature	-20°C to +60°C (E-Ink Screen: 0°C - 40°C)
Relative Humidity	0% to 95% (non-condensing)
Ingress Protection	IP30
Dimension	68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in)
Installation	Wall Mounting
