Name: Milesight 5G/4G/LTE Gigabit Ethernet Cellular Modem
Brand: Milesight IoT
SKU: UF31-554AE
Price: 1332.85 NZD
Availability: InStock

Milesight 5G/4G/LTE Gigabit Ethernet Cellular Modem

UF31-554AE

$1,332.85

Tax included.

11 items available

Select quantity

Description

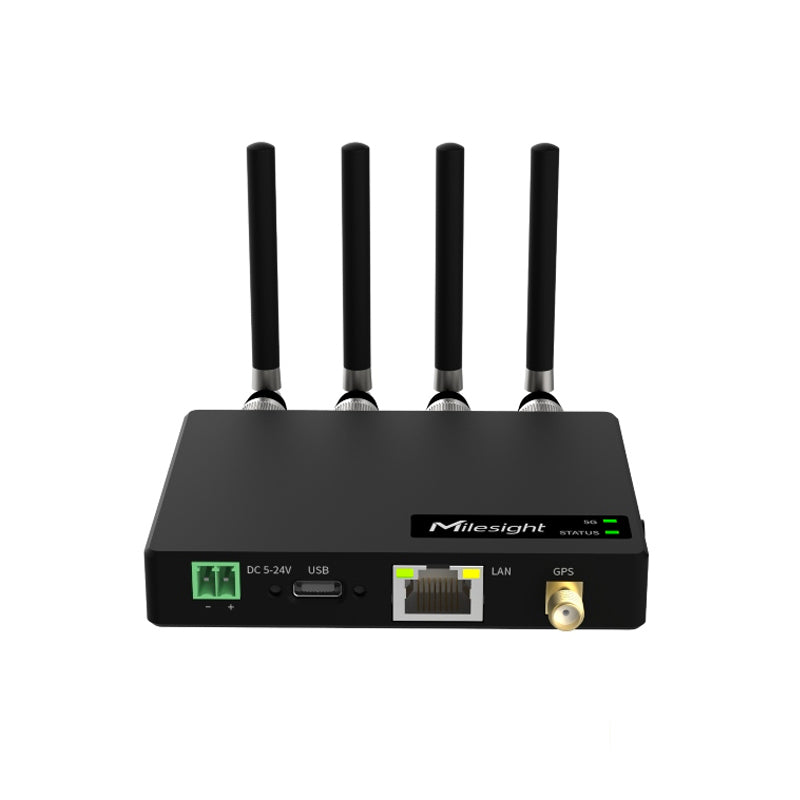

Milesight 5G/4G/LTE Gigabit Ethernet Cellular Modem

The Milesight UF31 is a high-performance 5G/4G/LTE Cellular modem for 5G wireless networking applications. It supports 5G NSA&SA, 4GLTE and 3G networks from telecom service providers of most countries in the world. The USB type-C port and Ethernet port are adopted to provide high-speed internet access for field devices. With a compact size and industrial design, UF31is easy to carry out or embed to any equipment, which is particularly suitable for smart offices, video surveillance, digital media implementations, industrial automation, traffic applications, robots, etc.

Please note that the antennas pictured differ to the antennas provided. GPS antenna sold separately.

. .

Features

support global 5G NSA&SA/4G LTE/WCDMA network, enables up to 2.5 Gbps download speeds
Plug and play, provide lightning transmission via Gigabit Ethernet port or USB 3.0
Embedded hardware watchdog to automatically recover from various failures, ensuring highest level of availability
Flexible Deployment
USB or DC power supply optional

Details
Product code	UF31-554AE
CPU	Quad-core ARM Cortex-A55?2 GHz
Memory	1 GB LPDDR4X RAM and 1 GB NAND Flash
Network	5G NR SA&NSA/4G LTE/WCDMA
Frequency	5G Sub-6: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79, LTE FDD: B1/B3/B5/B7/B8/B18/B19/B20/B28/B32, LTE TDD: B38/B40/B41/B42/B43/B46, WCDMA: B1/B5/B8
Antenna Connector	4 × 50 Ohm SMA Connectors (Center PIN: SMA Female)
SIM Slot	1 Micro SIM-3FF?
Ethernet	1 × 10/100/1000 Mbps LAN Port
Mode	Full or Half Duplex (Auto-Sensing)
GNSS Connector	1 × 50 Ohm SMA Connector (Center PIN: SMA Female)
Technology	GPS/GLONASS/Beidou/Galileo/QZSS
USB	1 × USB 3.0 (Type-C) for Power Supply, Network Supply and Debug Reset Button 1 × RESET (Internal)
LED Indicators	1 × STATUS?1 × Cellular Network
Network Protocols	IPv4/IPv6, TCP, UDP, DHCPv4/DHCPv6, HTTP, HTTPS, DNS, ARP, Telnet, SSH, etc.
Security	Access Control, Port Mapping, Custom Rules (Under development)
Management	Web, CLI, DeviceHub
Power Connector	2-pin 3.5 mm Terminal Block
Power Input	5-24 VDC, with Surge-Protection and Reverse Polarity Protection2 or 5V/3A by USB Type-C Port
Power Consumption	Typical 3.9 W
Ingress Protection	IP30
Housing & Color	Metal, Black
Dimension	90 x 72 x 15 mm
Installation	Desktop, Wall Mounting, DIN Rail Mounting
Operating Temperature	-20°C to +50°C
Storage Temperature	-40°C to +85°C
Ethernet Isolation	1.5 kV RMS
Relative Humidity	0% to 95% (Non-condensing) at 25°C

Details
Includes	PSU Adapter, Mounting ears, 4 x cellular Antennas, 4 x magnetic antenna bases (GPS antennas sold separately)

Warranty

3 Years

Brand

Milesight IoT

Restock ETA (if applicable)
