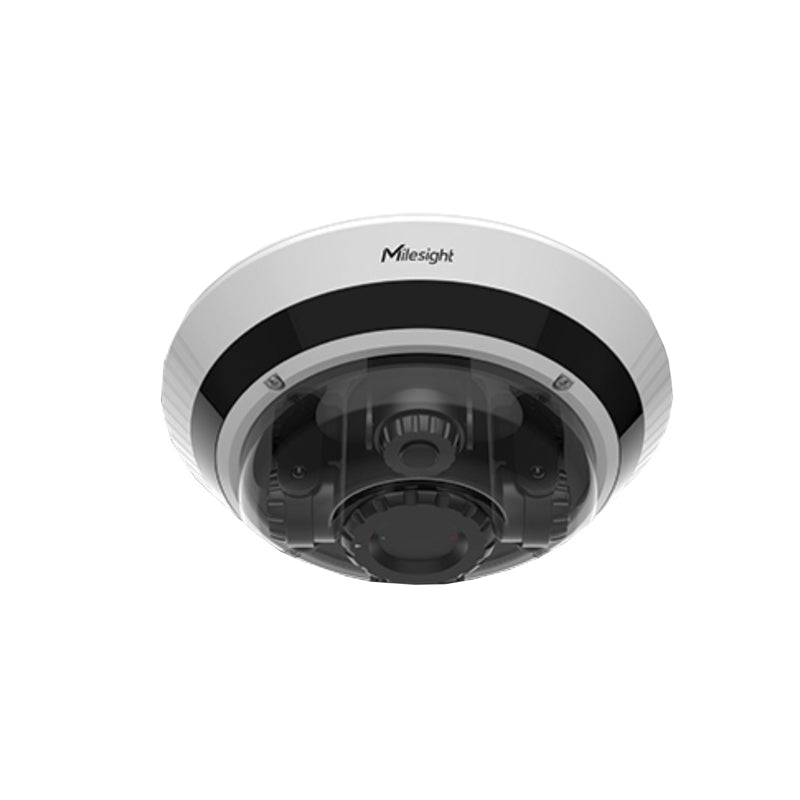

Milesight 4x5MP NDAA AI Multi-Directional Network IP Camera

Milesight 4x5MP NDAA AI Multi-Directional Network IP Camera

MS-C5321-FPE

$4,107.80

Tax included.

6 items available
Select quantity
Description
Milesight 4x5MP NDAA AI Multi-Directional Network IP Camera
The Milesight AI Multi-Directional Vision Discover the power of our advanced camera, featuring four adjustable 5MP sensors that deliver 20MP exceptional multi-directional vision. Each camera can focus on different areas, providing multiple perspectives to customize your surveillance according to your specific needs. Additionally, one lens is designed to capture ground-level views, ensuring comprehensive coverage and enhanced security.

Milesight multi-directional camera is designed to replace up to four traditional cameras, cutting down on the number of devices needed for complete coverage. This means fewer cameras, fewer mounts, and less complex installation—saving you both time and labor. Additionally, with a reduced number of cameras, the VMS licenses and maintenance cost will be cut down as well.

Our camera provides unmatched 360° protection around the clock. Equipped with 360° IR illumination, it provides up to 30 meters of night vision in every direction, ensuring all-around visibility. The camera's 360° coverage range is enhanced by fully rotatable and motorized lenses, allowing each lens to achieve ultimate flexibility. This versatile design enables precise, targeted adjustments to cover every angle effortlessly.

Milesight AI Camera Series feature Super Wide Dynamic Range. Sensor-based WDR technology allows the camera to record greater scene details with true colour reproduction even under extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB. Super WDR greatly reduces noisy points in the image giving a clearer picture for fast moving objects.

Equipped with a newest AI chip, this camera offers independent AI analysis for each of the channels, allowing for customized monitoring across different areas. This powerful feature adapts to diverse security needs, from intrusion detection to the latest e-scooter detection. Achieve efficient, targeted surveillance with AI-driven insights in every direction.

At every step, we've focused on making powerful features easy to use. From Built-in Wi-Fi for quick setup to PoE for a single, hassle-free connection, and Bundle Stream for efficient bandwidth usage, we've streamlined every aspect of the design. We've also included a Corridor Mode for optimal vertical coverage in narrow areas.

Milesight multi-directional Camera offers seamless compatibility with Milesight software. Additionally, it efficiently integrates with third-party platforms through ONVIF G/M/S/T protocols, ensuring flexible and hassle-free deployment.
Features
  • 4*5MP Motorized Sensors
  • Adjustable Sensors for Multi-directional Coverage
  • Built-in 360° IR LED with Up to 30m IR Distance
  • support 2*1TB SD Card Storage
  • Enriched with Advanced AI Event
  • Excellent Industrial Design
  • H.265+ Video Compression
  • Comprehensive Integration with 3rd-party Platform
  • vGRID SaferCity Platform Compliant
Details
Model MS-C5321-FPE
Model 4x5MP AI Multi-directional Network Camera
Image Sensor 4x1/2.8? Progressive Scan CMOS
Min. Illumination Color: 0.005Lux@F1.6 B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens Motorized 3mm~9mm @F1.6
Mount M14
Field of View H92° ~ H40°/ D116° ~ D49°/ V67°~V30°
DORI Distance D:64m ~ 150m/ O:23m ~ 59m R:9.5m ~ 28.5m/ I:3m ~ 14m
IR Distance Up to 30m
Day/Night Mode Day/Night/Auto/Customize/Schedule
Max.Image Resolution 2592x1944 (5MP)x4
Aperture F1.6-F2.7
Iris Control Fixed
Camera Angle Adjustment Pan ±120°, Tilt +15 to +105°, Rotation ±90°, Twist ±30°
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Privacy Masking Up to 8 areas
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness
Primary Stream 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720)
Secondary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Bundle Stream 60Hz: 30fps@(1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(1920x1080, 1280x960, 1280x720)
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Network Storage NAS(support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Yes
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically
People Counting & Reporting Count the number of people entering or exiting, up to 4 detection areas for regional people counting
Storage supports 2 microSD/SDHC/SDXC cards for local storage, each with a maximum capacity of 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
Working Temperature -40°C~60°C
Working Humidity 0~95%(Non-condensing)
Power Method PoE(802.3at)/ DC 12V±20%
Power Consumption DC Max. power consumption: 20W POE Max. power consumption: 23W
Housing Vandal-proof IK10-rated Metal Housing
Weather Proof Up to IP66-rated for Weather-resistant Performance
Weight 3.1kg(Only camera), 3.8kg(With package)
Dimensions 280mmX97mmX280mm
Details
Contents Warranty card, QSG, Wall mount, mounting screws and tightening tool included
Power Supply Not included
Warranty

3 Years

Brand

Milesight

Restock ETA (if applicable)

Product Details

Specifications

  • Milesight

  • HeadingMilesight 4x5MP NDAA AI Multi-Directional Network IP Camera

Description
Milesight 4x5MP NDAA AI Multi-Directional Network IP Camera
The Milesight AI Multi-Directional Vision Discover the power of our advanced camera, featuring four adjustable 5MP sensors that deliver 20MP exceptional multi-directional vision. Each camera can focus on different areas, providing multiple perspectives to customize your surveillance according to your specific needs. Additionally, one lens is designed to capture ground-level views, ensuring comprehensive coverage and enhanced security.

Milesight multi-directional camera is designed to replace up to four traditional cameras, cutting down on the number of devices needed for complete coverage. This means fewer cameras, fewer mounts, and less complex installation—saving you both time and labor. Additionally, with a reduced number of cameras, the VMS licenses and maintenance cost will be cut down as well.

Our camera provides unmatched 360° protection around the clock. Equipped with 360° IR illumination, it provides up to 30 meters of night vision in every direction, ensuring all-around visibility. The camera's 360° coverage range is enhanced by fully rotatable and motorized lenses, allowing each lens to achieve ultimate flexibility. This versatile design enables precise, targeted adjustments to cover every angle effortlessly.

Milesight AI Camera Series feature Super Wide Dynamic Range. Sensor-based WDR technology allows the camera to record greater scene details with true colour reproduction even under extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB. Super WDR greatly reduces noisy points in the image giving a clearer picture for fast moving objects.

Equipped with a newest AI chip, this camera offers independent AI analysis for each of the channels, allowing for customized monitoring across different areas. This powerful feature adapts to diverse security needs, from intrusion detection to the latest e-scooter detection. Achieve efficient, targeted surveillance with AI-driven insights in every direction.

At every step, we've focused on making powerful features easy to use. From Built-in Wi-Fi for quick setup to PoE for a single, hassle-free connection, and Bundle Stream for efficient bandwidth usage, we've streamlined every aspect of the design. We've also included a Corridor Mode for optimal vertical coverage in narrow areas.

Milesight multi-directional Camera offers seamless compatibility with Milesight software. Additionally, it efficiently integrates with third-party platforms through ONVIF G/M/S/T protocols, ensuring flexible and hassle-free deployment.
Features
  • 4*5MP Motorized Sensors
  • Adjustable Sensors for Multi-directional Coverage
  • Built-in 360° IR LED with Up to 30m IR Distance
  • support 2*1TB SD Card Storage
  • Enriched with Advanced AI Event
  • Excellent Industrial Design
  • H.265+ Video Compression
  • Comprehensive Integration with 3rd-party Platform
  • vGRID SaferCity Platform Compliant
Details
Model MS-C5321-FPE
Model 4x5MP AI Multi-directional Network Camera
Image Sensor 4x1/2.8? Progressive Scan CMOS
Min. Illumination Color: 0.005Lux@F1.6 B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens Motorized 3mm~9mm @F1.6
Mount M14
Field of View H92° ~ H40°/ D116° ~ D49°/ V67°~V30°
DORI Distance D:64m ~ 150m/ O:23m ~ 59m R:9.5m ~ 28.5m/ I:3m ~ 14m
IR Distance Up to 30m
Day/Night Mode Day/Night/Auto/Customize/Schedule
Max.Image Resolution 2592x1944 (5MP)x4
Aperture F1.6-F2.7
Iris Control Fixed
Camera Angle Adjustment Pan ±120°, Tilt +15 to +105°, Rotation ±90°, Twist ±30°
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Privacy Masking Up to 8 areas
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness
Primary Stream 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720)
Secondary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Bundle Stream 60Hz: 30fps@(1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(1920x1080, 1280x960, 1280x720)
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Network Storage NAS(support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Yes
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection & Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically
People Counting & Reporting Count the number of people entering or exiting, up to 4 detection areas for regional people counting
Storage supports 2 microSD/SDHC/SDXC cards for local storage, each with a maximum capacity of 1TB
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
Working Temperature -40°C~60°C
Working Humidity 0~95%(Non-condensing)
Power Method PoE(802.3at)/ DC 12V±20%
Power Consumption DC Max. power consumption: 20W POE Max. power consumption: 23W
Housing Vandal-proof IK10-rated Metal Housing
Weather Proof Up to IP66-rated for Weather-resistant Performance
Weight 3.1kg(Only camera), 3.8kg(With package)
Dimensions 280mmX97mmX280mm
Details
Contents Warranty card, QSG, Wall mount, mounting screws and tightening tool included
Power Supply Not included
Brand

Milesight

Warranty

3 Years
