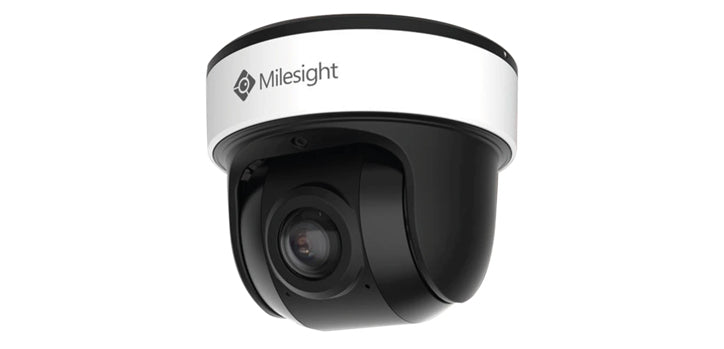

Name: Milesight 4K NDAA AI 180° Panoramic Mini Dome Network Camera
Brand: Milesight
SKU: MS-C8176-PE
Price: 853.30 NZD
Availability: InStock

Milesight 4K NDAA AI 180° Panoramic Mini Dome Network Camera

MS-C8176-PE

$853.30

Tax included.

In stock, ready to be shipped

Select quantity

Description

Milesight 4K NDAA AI 180° Panoramic Mini Dome Network Camera

Milesight 180deg 4K Panoramic Mini Dome IP Camera. As a dome-shaped camera, Milesight 180° Panoramic H.265+ Mini Dome Network Camera is perfect for ultra-wide area monitoring, especially because it can great merge itself into surroundings. It catches 180° horizontal and 86° vertical coverage, achieving extra wide angle viewing with only one single sensor.

The 180° Panoramic H.265+ Mini Dome Network Camera features 4K ultra high resolution to guarantee superb image quality of 3840x2160. Introducing 180° ultra-wide angle lens, the camera realizes the whole scene monitoring without any details missing.

The AI 180° Panoramic Mini Dome Network Camera features 4K ultra high resolution to guarantee superb image quality of 3840x2160. Introducing 180° ultra-wide angle lens, the camera realizes the whole scene monitoring without any details missing.

Milesight’s sensor-based WDR technology allows the AI 180° Panoramic Mini Dome Network Camera to record greater scene details with true color reproduction even under the extreme backlight and high contrast conditions. The ratio that the brightest light signal values to the darkest light signal values is up to 120dB.

Tailored for Milesight panoramic network camera, the new generation panoramic IR technology adopts the original structure design to achieve the best IR anti-reflection effect. With the adjustable illumination intensity, two well-designed IR LEDs truly realize the 180° IR coverage.

Features

ONVIF Profile G & Q & S & T, API Compatible
supports 802.3at PoE
supports H.265+/H.265/H.264+/H.264
180° Panoramic View
4K Ultra High Definition
120dB Super WDR
0.005Lux Starlight
Panoramic IR Technology
180° IR Coverage
Heat Map
IP67 & IK10
Built-in Microphone
Integrated Junction Box
support microSD/SDHC/SDXC Card Local Storage, up to 256G
vGRID SaferCity Platform Compliant

Details
Product Code	MS-C8176-PE
Product Name	4K AI 180° Panoramic Mini Dome Network Camera
Min. Illumination	Color: 0.012Lux @F2.0, B/W: 0Lux with IR on
WDR	120dB Super WDR
Lens	1.68mm @F2.0
Mount	M12
Field of View	H180°/V86°
Shutter Time	1/100000s?1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Distance	180° IR Illumination Up to 15m
S/N	>55dB
Max. Image Resolution	3840x2160
Primary Stream	60Hz/50Hz: 25fps@(3840x2160,3440x1936, 3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720)
Secondary Stream	60Hz/50Hz:25fps@(704x576, 640x480, 640x360)
Tertiary Stream	60Hz/50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps?16Mbps (CBR/VBR adjustable)
Privacy Masking	Up to 8 Areas (Mask Area and Mosaic Area are optional)
Region Of Interest	Up to 8 areas
Image Settings	Saturation/Brightness/Contrast/Sharpness
Web Access	support IE/Firefox/Chrome/Safari Browser
Interfaces	1*RJ45 10M/100M Ethernet Port
Audio Interface	Built-in Microphone
Network Storage	NAS(support NFS, SMB/CIFS), ANR
Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	N/A
Storage support	microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP	supported - Voice&Video-over-IP
Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System Compatibility	ONVIF Profile G & Q & S & T, API
Working Condition	Temperature: -40??60? / Humidity: 0?90%(Non-condensing)
Power Supply	PoE(802.3af)/DC 12V±10%
Power Consumption	7W MAX, 10W MAX (With IR on)
Weather Proof	Up to IP67-rated for weather-resistant performance
Housing	Vandal-proof IK10-rated metal housing
Dimensions/Weight	127mmx127mmX107mm/853g

Details
Contents	Warranty card, QSG, Wall mount, mounting screws and tightening tool included
Power Supply	Not included

Warranty

3 Years

Brand

Milesight

Restock ETA (if applicable)
