Milesight 4K NDAA AI 180° Panoramic Mini Bullet Network IP Camera - Junction Box

Milesight 4K NDAA AI 180° Panoramic Mini Bullet Network IP Camera - Junction Box

MS-C8165-PE

$870.55

Tax included.

19 items available
Select quantity
Description

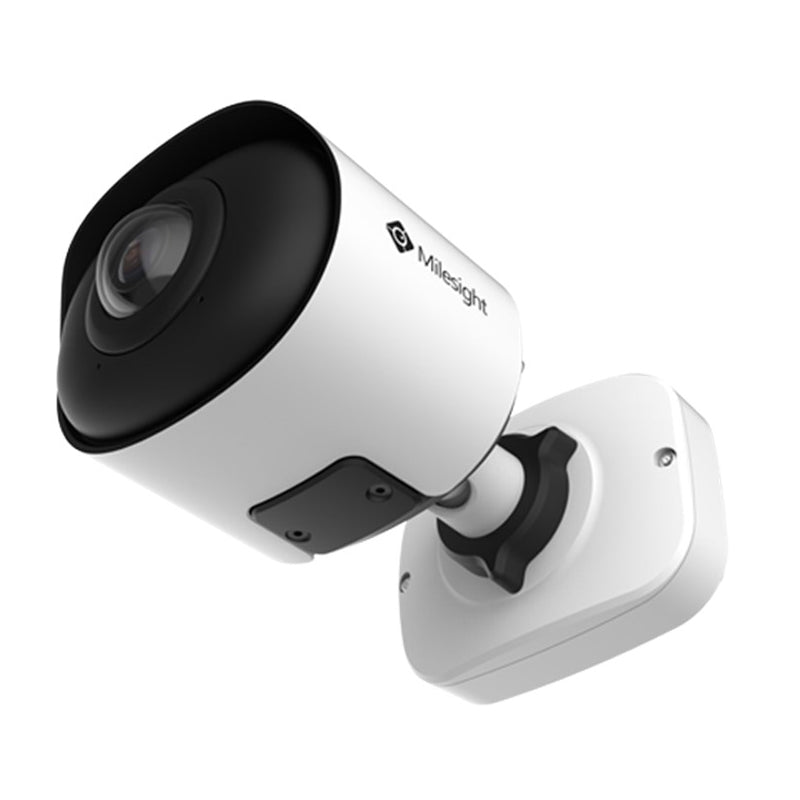

Milesight 4K NDAA AI 180° Panoramic Mini Bullet Network IP Camera - Junction Box
Milesight AI IP Camera Powered by advanced AI engine, Milesight new generation video analytics boasts with higher accuracy via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight cameras can intelligently filter objects to focus on human and vehicle detection, together with multiple event rules including region entrance, object removed, loitering, etc., to meet diverse scenarios for building a smarter and safer world.

Milesight AI 180° Panoramic Mini Bullet Network Camera is perfect for whole picture viewing experience. It catches 180° horizontal coverage and 95° vertical coverage, achieving 180° panoramic viewing with only single sensor, which is a revolutionary creation in the bullet model.

Milesight AI 180° Panoramic Mini Bullet Network Camera features with 4K ultra high definition which better restores the images to guarantee superb image quality of 3840x2160. The camera is a special model which produces spherical image and will have the dewarp process to adjust the original images to offer presented images. Therefore, the high resolution is vital for the model. supporting IP67-rated weather proofing and IK10-rated vandal proofing which are the leading level of the industry, the AI 180° Panoramic Mini Bullet Network Camera is well protected against adverse impacts to ensure the robust performance.

With the built-in microphone which adopts the advanced codec, the AI 180° Panoramic Mini Bullet Network Camera is able to provide clearer voice. It is worth mentioning that Milesight uses PTFE Membrane to safeguard the built-in microphone, ensuring IP67-rated weather proof capability for reliable performance
Features
  • ONVIF Profile G & Q & S & T, API Compatible
  • supports 802.3at PoE
  • supports H.265+/H.265/H.264+/H.264
  • 180° Panoramic View
  • AI
  • 120dB Super WDR
  • Privacy Mask
  • 0.005Lux Starlight
  • Heat Map
  • IP67 & IK10
  • 15m IR Distance
  • Smart IR II
  • support microSD/SDHC/SDXC Card Local Storage, up to 256G
  • vGRID SaferCity Platform Compliant
Details
Product Code MS-C8165-PE
Product Name Milesight 4K AI 180° Panoramic Mini Bullet Network Camera
Min. Illumination Color: 0.01Lux @F1.2, Color: 0.012Lux @F2.0, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 1.68mm @F2.0
Field of View H180°/V86°
Shutter Time 1/100000s?1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance 180° IR Illumination Up to 15m
S/N >55dB
Max. Image Resolution 3840x2160
Primary Stream 60Hz/50Hz: 25fps@(3840x2160,3440x1936,3200x1800, 2880x1624, 2560x1440, 1920x1080, 1280x720)
Secondary Stream 60Hz/50Hz:25fps@(704x576, 640x480, 640x360?
Tertiary Stream 60Hz/50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps?16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 8 areas
Region Of Interest Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access support IE/Firefox/Chrome/Safari Browser
Interfaces 1*RJ45 10M/100M Ethernet Port
Audio Interface Built-in Microphone
Network Storage NAS(support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Storage support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP supported - Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
Working Condition Temperature: -40??60? / Humidity: 0?90%(Non-condensing)
Power Supply PoE(802.3af)/DC 12V±10%
Power Consumption 7W MAX, 9W MAX (With IR on)
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Dimensions/Weight 97mmX74mmx160mm/630g
Details
Contents Warranty card, QSG, Wall mount
Power Supply Not included
Warranty

3 Years

Brand

Milesight
