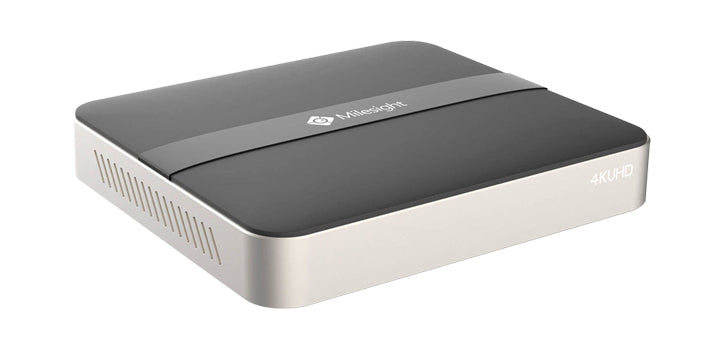

Milesight 4K 4 Channel IP Camera Mini NVR

Milesight 4K 4 Channel IP Camera Mini NVR

MS-N1004-UC

$338.10

Tax included.

6 items available
Select quantity
Description
Milesight 4K 4 Channel Mini IP Camera Network Video Recorder
Small but Powerful!

With its ultra mini size of 220mm*200mm*43.6mm, the Milesight MS-N1004-UC NVR features a compact and discreet design with no compromise on functionality, providing an easier way to ensure quality video management. Although it was developed to take up as little space as possible, the 4K H.265 Mini NVRs come with a whole array of ports such as an HDMI-out port, 2 USB ports and a LAN port, for easy network connectivity. The Mini NVRs feature a range of functions, making them an easy-to-use system, including Easy Playback, Easy Backup, File Management and Easy Configuration. That coupled with access to Milesights wide range of cameras, allows seamless compatibility with Milesights advanced functions, including PTZ/Fisheye Auto Tracking, PTZ Manual Tracking, Heat Map and Fisheye Dewarping.

MIlesight NVRs support alarm configurations and event search using Milesight Smart VCA (Video Content Analysis). Once suspicious events are detected, the devices can trigger alarms and recordings, helping you to improve video surveillance efficiency. As a backup operation, ANR (Automatic Network Replenishment) can automatically store video data on the camera storage card when the network is disconnected and retransfer the recorded video to the NVR after the network recovers, guaranteeing a reliable system.

*Please Note: HDDs need to be purchased separately
Features
  • Up to 10TB Storage
  • Decode up to 4-CH 1080P
  • Automatic Network Replenishment
  • Video Content Analysis
  • Versatile Interfaces
  • ONVIF Compliant
  • HDMI Out for live viewing
  • HTML5 compatible
Details
Model MS-N1004-UC
Network Video Input 4-CH
Bandwidth Incoming 40Mbps, Outgoing 40Mbps
HDMI Output 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI supports Audio Output
Dual Stream supported
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback 1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps @1080P), 4*(30fps @720P)
Video Compression H.265/H.265(HEVC)/H.264
Audio Compression G.711/AAC/G.722/G.726
Sample Rate 8KHz/16KHz
Synchronous Recording 4*5MP
Storage 1*SATA HDD(3.5”)
Recording Type Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Snapshot Type Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Playback Type General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
Backup Video Backup, Image Backup
Network Protocol IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Network Interface 1*RJ45 10/100Mbps
Compatibility ONVIF
Advanced Function ANR
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
Keyboard Control Milesight Keyboard (MS-K01)
Power Supply DC 12V 2A
Consumption ?2.3W(Without HDD)
Working Conditions Temperature: -10?~55?/Humidity: 10%~90%
Dimensions 220mm(W)X200mm(D)X43.6mm(H)
Weight 0.19Kg
Details
Contains NVR, Power Adaptor, QSG, Warranty Card, HDD Mounting screws
Warranty

3 Years

Brand

Milesight

Restock ETA (if applicable)

Product Details

Specifications

  • Milesight

  • HeadingMilesight 4K 4 Channel IP Camera Mini NVR

Description
Milesight 4K 4 Channel Mini IP Camera Network Video Recorder
Small but Powerful!

With its ultra mini size of 220mm*200mm*43.6mm, the Milesight MS-N1004-UC NVR features a compact and discreet design with no compromise on functionality, providing an easier way to ensure quality video management. Although it was developed to take up as little space as possible, the 4K H.265 Mini NVRs come with a whole array of ports such as an HDMI-out port, 2 USB ports and a LAN port, for easy network connectivity. The Mini NVRs feature a range of functions, making them an easy-to-use system, including Easy Playback, Easy Backup, File Management and Easy Configuration. That coupled with access to Milesights wide range of cameras, allows seamless compatibility with Milesights advanced functions, including PTZ/Fisheye Auto Tracking, PTZ Manual Tracking, Heat Map and Fisheye Dewarping.

MIlesight NVRs support alarm configurations and event search using Milesight Smart VCA (Video Content Analysis). Once suspicious events are detected, the devices can trigger alarms and recordings, helping you to improve video surveillance efficiency. As a backup operation, ANR (Automatic Network Replenishment) can automatically store video data on the camera storage card when the network is disconnected and retransfer the recorded video to the NVR after the network recovers, guaranteeing a reliable system.

*Please Note: HDDs need to be purchased separately
Features
  • Up to 10TB Storage
  • Decode up to 4-CH 1080P
  • Automatic Network Replenishment
  • Video Content Analysis
  • Versatile Interfaces
  • ONVIF Compliant
  • HDMI Out for live viewing
  • HTML5 compatible
Details
Model MS-N1004-UC
Network Video Input 4-CH
Bandwidth Incoming 40Mbps, Outgoing 40Mbps
HDMI Output 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI supports Audio Output
Dual Stream supported
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback 1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps @1080P), 4*(30fps @720P)
Video Compression H.265/H.265(HEVC)/H.264
Audio Compression G.711/AAC/G.722/G.726
Sample Rate 8KHz/16KHz
Synchronous Recording 4*5MP
Storage 1*SATA HDD(3.5”)
Recording Type Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Snapshot Type Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Playback Type General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
Backup Video Backup, Image Backup
Network Protocol IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Network Interface 1*RJ45 10/100Mbps
Compatibility ONVIF
Advanced Function ANR
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
Keyboard Control Milesight Keyboard (MS-K01)
Power Supply DC 12V 2A
Consumption ?2.3W(Without HDD)
Working Conditions Temperature: -10?~55?/Humidity: 10%~90%
Dimensions 220mm(W)X200mm(D)X43.6mm(H)
Weight 0.19Kg
Details
Contains NVR, Power Adaptor, QSG, Warranty Card, HDD Mounting screws
Brand

Milesight

Warranty

3 Years
