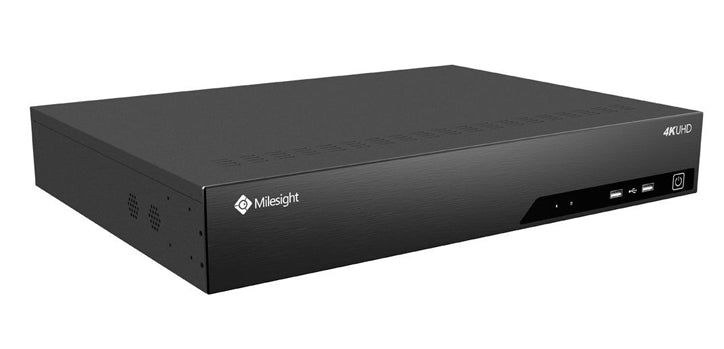

Milesight 4K 16 Channel IP Camera NVR with built in 16 Port PoE Switch and RAID, LPR Support

Milesight 4K 16 Channel IP Camera NVR with built in 16 Port PoE Switch and RAID, LPR Support

MS-N7016-PG

$1,775.60

Tax included.

2 items available
Select quantity
Description
Milesight 4K 16 Channel IP Camera NVR with built in 16 Port 802.3af/at PoE 10/100 Switch and RAID Support
Milesight 16-Channel ONVIF Compatible NVR with built in 16 port 10/100Mbps switch with 802.3af/at PoE Ethernet, solid 4K decoding and display capabilities, Milesight 4K H.265 PoE NVR 7000 Series can synchronously decode up to 4-CH 4K UHD and 16-CH 1080P with the finest details to guarantee real-time video monitoring.

Milesight 4K H.265 PoE NVR 7000 Series supports Multi-video Output in two ways: Independent Outputs enable multiple outputs to display various channels independently, while Synchronous Outputs appoint the same channel to be displayed at different locations synchronously.

Milesight 4K H.265 PoE NVR 7000 Series offers a true plug-and-play with the built-in independent PoE switches, where cameras can be easily connected without a lot of network infrastructure work, ensuring you to begin the efficient monitoring in no time.

Flexible storage options including HDD and NAS in Milesight 4K H.265 PoE NVR 7000 Series offer you greater flexibility to address the needs for versatile storage.

Based on the CPU capabilities, Transcoding guarantees fluid video experience especially for remote playback even in a poor network connection by reducing the stream data via lowering resolution, bit rate, or frame rate.

Milesight 4K H.265 PoE NVR 7000 Series features a range of functions to ensure the easy-to-use system, including Easy Playback, Easy Backup, File Management and Easy Configuration.

As a backup operation, ANR can automatically store video data on the camera storage card when network is disconnected and retransfer the recorded video to NVR after network recovers, guaranteeing a reliable system.

Preconfigured with industry-standard RAID levels (0/1/5/6/10), Milesight 4K H.265 PoE NVR 7000 Series can configure the system based on the specific redundancy and performance requirements to ensure more reliable storage against data loss.

Milesight 4K H.265 PoE NVR 7000 Series provides you access to Milesight wide range of cameras, ensuring the seamless compatibilities with Milesight advanced functions, including PTZ/Fisheye Auto Tracking, PTZ Manual Tracking, Heat Map and Fisheye Dewarping.

Milesight 4K H.265 PoE NVR 7000 Series comes with a whole array of ports such as an HDMI port, a VGA port, 3 USB ports, 16/24 PoE ports, Alarm I/O, Audio I/O and a LAN port, etc. The full set of interfaces provides all necessary features for effective surveillance

*Please Note: HDDs need to be purchased separately
Features
  • Built in 16 x 10/100Mbps switch with 802.3af/at PoE
  • ONVIF Compatible
  • 16 CH Video Input
  • 4 x 10TB Storage Bays
  • Multi-video Output
  • supports Dual Streaming
  • 4K Streaming
  • HDMI Out
  • RAID levels (0/1/5/6/10) supported
  • ANR
  • Versatile Interfaces
Details
Product Code MS-N7016-PG
Network Video Input 16-CH
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback 6*(30fps @8MP), 8*(30fps @6MP), 9*(30fps @5MP), 12*(30fps @4MP), 16*(30fps @3MP)16*(30fps @2MP), 16*(30fps @1080P), 16*(30fps @720P)?16*(30fps @D1)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264
Audio Format G.711/AAC/G.722/G.726
SATA 4 x SATA HDD (3.5”) Bays
Capacity Up to 10TB capacity for each HDD
Array Type RAID0, RAID1, RAID5, RAID6, RAID10
Recording Type Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Snapshot Type Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Playback Type General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
Backup Video backup, Image Backup
Network Protocols IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Network Interface 1*RJ45 10/100/1000Mbps
USB Interface 1*USB 3.0; 2*USB 2.0
Audio Input/Output 1*RCA
Alarm Input/Output 16-CH/4-CH
Interface 16*RJ45 10/100Mbps
Power Output ?200W
supported Standard IEEE 802.3af/at
Compatibility ONVIF, API
Advanced Function ANR
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
Keyboard Control Milesight Keyboard(MS-K01)
Power Supply DC 12V 50Hz?60Hz
Consumption ?20W(Without HDD, without enabling PoE)
Working Conditions Temperature: -10??+55? / Humidity: 10%?90%
Dimensions 440mm(W)X251mm(D)X44.4mm(H), Rack Mountable Chassis(1.0U Standard)
Weight 5Kg
Warranty 3 Years
Details
Contents QSG, Mounting hardware, Wall mount, Warranty Card, HDD Bracket
Power Supply Included
Warranty

3 Years

Brand

Milesight

Restock ETA (if applicable)

Product Details

Specifications

  • Milesight

  • HeadingMilesight 4K 16 Channel IP Camera NVR with built in 16 Port PoE Switch and RAID, LPR Support

Description
Milesight 4K 16 Channel IP Camera NVR with built in 16 Port 802.3af/at PoE 10/100 Switch and RAID Support
Milesight 16-Channel ONVIF Compatible NVR with built in 16 port 10/100Mbps switch with 802.3af/at PoE Ethernet, solid 4K decoding and display capabilities, Milesight 4K H.265 PoE NVR 7000 Series can synchronously decode up to 4-CH 4K UHD and 16-CH 1080P with the finest details to guarantee real-time video monitoring.

Milesight 4K H.265 PoE NVR 7000 Series supports Multi-video Output in two ways: Independent Outputs enable multiple outputs to display various channels independently, while Synchronous Outputs appoint the same channel to be displayed at different locations synchronously.

Milesight 4K H.265 PoE NVR 7000 Series offers a true plug-and-play with the built-in independent PoE switches, where cameras can be easily connected without a lot of network infrastructure work, ensuring you to begin the efficient monitoring in no time.

Flexible storage options including HDD and NAS in Milesight 4K H.265 PoE NVR 7000 Series offer you greater flexibility to address the needs for versatile storage.

Based on the CPU capabilities, Transcoding guarantees fluid video experience especially for remote playback even in a poor network connection by reducing the stream data via lowering resolution, bit rate, or frame rate.

Milesight 4K H.265 PoE NVR 7000 Series features a range of functions to ensure the easy-to-use system, including Easy Playback, Easy Backup, File Management and Easy Configuration.

As a backup operation, ANR can automatically store video data on the camera storage card when network is disconnected and retransfer the recorded video to NVR after network recovers, guaranteeing a reliable system.

Preconfigured with industry-standard RAID levels (0/1/5/6/10), Milesight 4K H.265 PoE NVR 7000 Series can configure the system based on the specific redundancy and performance requirements to ensure more reliable storage against data loss.

Milesight 4K H.265 PoE NVR 7000 Series provides you access to Milesight wide range of cameras, ensuring the seamless compatibilities with Milesight advanced functions, including PTZ/Fisheye Auto Tracking, PTZ Manual Tracking, Heat Map and Fisheye Dewarping.

Milesight 4K H.265 PoE NVR 7000 Series comes with a whole array of ports such as an HDMI port, a VGA port, 3 USB ports, 16/24 PoE ports, Alarm I/O, Audio I/O and a LAN port, etc. The full set of interfaces provides all necessary features for effective surveillance

*Please Note: HDDs need to be purchased separately
Features
  • Built in 16 x 10/100Mbps switch with 802.3af/at PoE
  • ONVIF Compatible
  • 16 CH Video Input
  • 4 x 10TB Storage Bays
  • Multi-video Output
  • supports Dual Streaming
  • 4K Streaming
  • HDMI Out
  • RAID levels (0/1/5/6/10) supported
  • ANR
  • Versatile Interfaces
Details
Product Code MS-N7016-PG
Network Video Input 16-CH
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback 6*(30fps @8MP), 8*(30fps @6MP), 9*(30fps @5MP), 12*(30fps @4MP), 16*(30fps @3MP)16*(30fps @2MP), 16*(30fps @1080P), 16*(30fps @720P)?16*(30fps @D1)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264
Audio Format G.711/AAC/G.722/G.726
SATA 4 x SATA HDD (3.5”) Bays
Capacity Up to 10TB capacity for each HDD
Array Type RAID0, RAID1, RAID5, RAID6, RAID10
Recording Type Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Snapshot Type Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Playback Type General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
Backup Video backup, Image Backup
Network Protocols IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Network Interface 1*RJ45 10/100/1000Mbps
USB Interface 1*USB 3.0; 2*USB 2.0
Audio Input/Output 1*RCA
Alarm Input/Output 16-CH/4-CH
Interface 16*RJ45 10/100Mbps
Power Output ?200W
supported Standard IEEE 802.3af/at
Compatibility ONVIF, API
Advanced Function ANR
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
Keyboard Control Milesight Keyboard(MS-K01)
Power Supply DC 12V 50Hz?60Hz
Consumption ?20W(Without HDD, without enabling PoE)
Working Conditions Temperature: -10??+55? / Humidity: 10%?90%
Dimensions 440mm(W)X251mm(D)X44.4mm(H), Rack Mountable Chassis(1.0U Standard)
Weight 5Kg
Warranty 3 Years
Details
Contents QSG, Mounting hardware, Wall mount, Warranty Card, HDD Bracket
Power Supply Included
Brand

Milesight

Warranty

3 Years
