Name: MikroTik RouterBOARD mAP2nD 802.11n Mini Access Point
Brand: MikroTik
SKU: RBmAP2nD
Price: 115.0 NZD
Availability: InStock

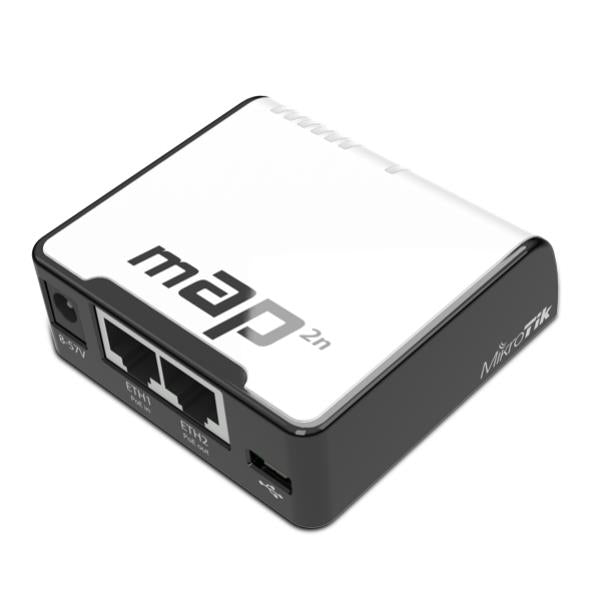

MikroTik RouterBOARD mAP2nD mini access point with white top and dark base, Ethernet ports

MikroTik RouterBOARD mAP2nD 802.11n Mini Access Point

RBmAP2nD

$115.00

Tax included.

18 items available

Select quantity

Description

MikroTik RouterBOARD mAP2nD 802.11n Mini Access Point

Description

Mikrotik RouterBOARD mAP2nD (2)LAN, 2.4Ghz 802.11n WiFi, microUSB, RouterOS L4, Passive POE-in/out

The mAP is a tiny size wireless Access Point with full RouterOS capabilities. It is very portable with its tiny form factor and power from a wide variety of sources including USB, Passive PoE and power jack. In addition to using this device as a small and portable AP, it also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it. The USB port can also be used with compatible 3G/4G USB dongles via the microUSB adaptor cable included.

Features

Built in 2GHz AP
microUSB for a 3G/4G modem, or for power input
Station or AP mode wireless
Passive PoE input (10-57V)
Passive PoE output (same as input voltage)

Details
Product code	RBmAP2nD
CPU nominal frequency	650MHz
CPU core count	1
Size of RAM	64 MB
10/100 Ethernet ports	2
Wireless chip model	QCA9531
Wireless standards	802.11b/g/n
Number of USB ports	1
USB slot type	microUSB type AB
PoE In	Yes - Passive, 11-57V
PoE Out	Pasive PoE output, up to 500mA on Ether 2
Voltage Monitor	Yes
PCB temperature monitor	Yes
Dimensions	68x68x19mm
Operating System	RouterOS
Operating temperature range	-10C to +70C tested
License level	4
Antenna gain DBI	1.2dBi
Max Power consumption	5W
Number of chains	2
Output Power	22dBm

Details
Power Supply	24VDC 0.8A PSU
Warranty	Standard 12 Month RTB
