Name: MikroTik NetBox 5 ax Wi-Fi 6 802.11ax AP/CPE/Point-to-point Outdoor Radio
Brand: MikroTik
SKU: L11UG-5HaxD-NB
Price: 262.2 NZD
Availability: InStock

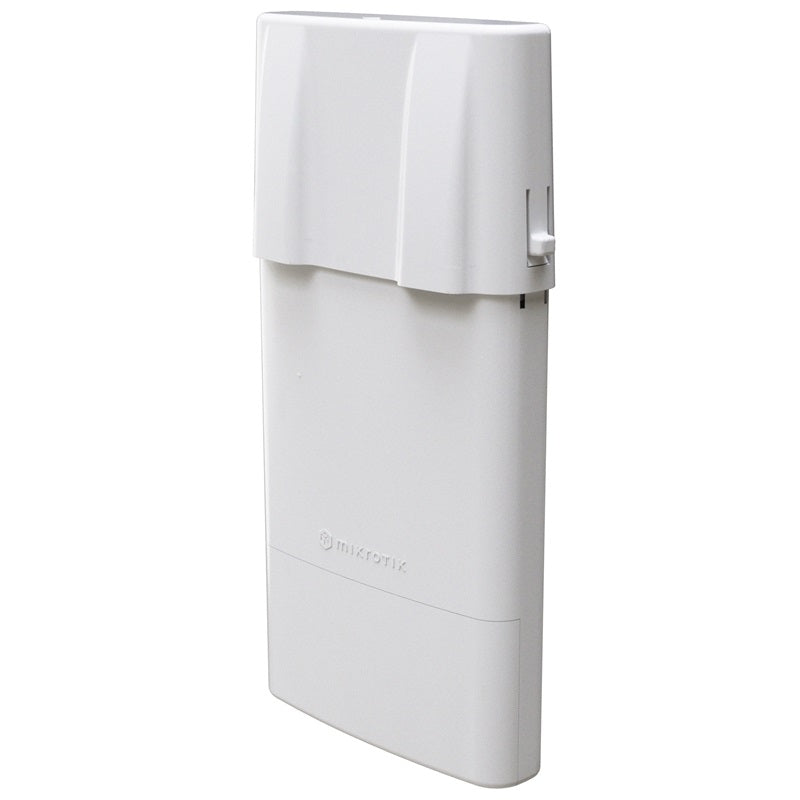

MikroTik NetBox 5 ax outdoor Wi‑Fi 6 wireless AP/CPE radio, white enclosure

MikroTik NetBox 5 ax Wi-Fi 6 802.11ax AP/CPE/Point-to-point Outdoor Radio

L11UG-5HaxD-NB

$262.20

Tax included.

In stock, ready to be shipped

Select quantity

Description

MikroTik NetBox 5 ax Wi-Fi 6 802.11ax AP/CPE/Point-to-point Outdoor Radio

Description

MikroTik NetBox 5 ax WiFi 6 802.11ax AP/CPE/Point-to-point Outdoor Radio L22UGS-5HaxD2HaxD-15S

MikroTik NetBox 5 ax Wi-Fi 6 802.11ax AP/CPE/Point-to-point Outdoor Radio L22UGS-5HaxD2HaxD-15S. NetBox 5 ax is a powerful dual-chain outdoor WiFi6 device that can fill multiple roles in your setups: AP/CPE/Point-to-point. The strong 5 GHz Wi-Fi 6 radio comes with handy SMA connectors. That means you can add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link!

This weatherproof board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in.

We’ve designed the case to make a sysadmins life easier. You can open the case effortlessly with just one hand. At the bottom, concealed behind a protective door, you’ll find exits for Ethernet. Equipped with a mounting loop for easy tower/pole installation, it also offers a separate DIN rail mount.

Details
Product code	L11UG-5HaxD-NB
Wireless 5 GHz Max data rate	2400 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac/ax
10/100/1000 Ethernet ports	1
Number of USB ports	1
Architecture	ARM
CPU	IPQ-5010
CPU core count	2
CPU nominal frequency	800 MHz
RouterOS license	4
Operating System	RouterOS v7
Size of RAM	256 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Number of DC inputs	1 (PoE-IN)
Max power consumption	15 W
Max power consumption without attachments	6 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	18-28 V
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes
Certification	CE, FCC, IC, EAC, ROHS
IP	54
