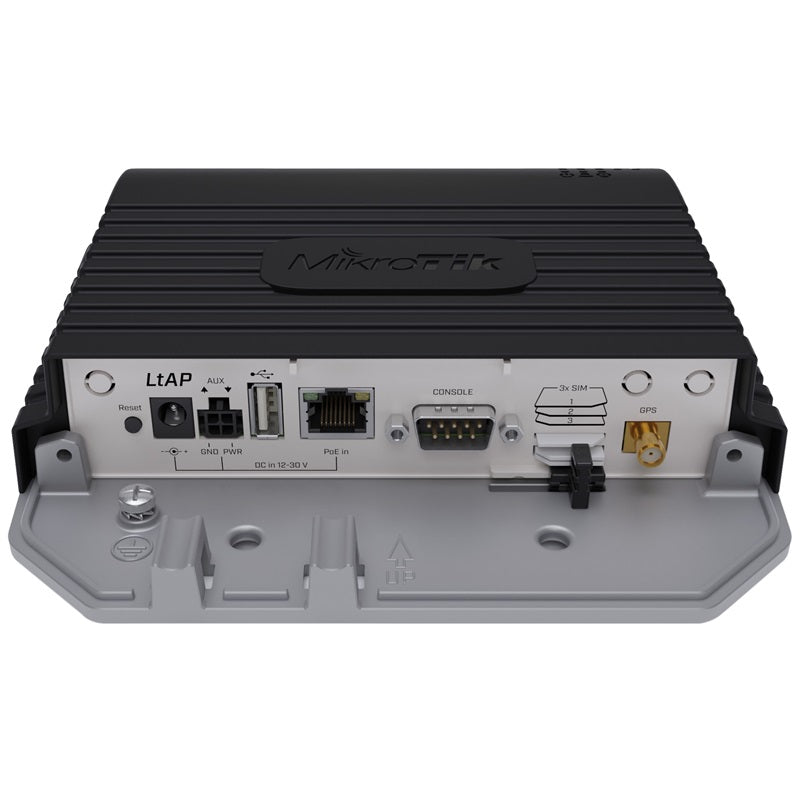

MikroTik LtAP-2HnD&FG621-EA Compact Heavy-Duty 4G LTE Band 28, with 2.4GHz Wi-Fi Access Point and built-in GPS

MikroTik LtAP-2HnD&FG621-EA Compact Heavy-Duty 4G LTE Band 28, with 2.4GHz Wi-Fi Access Point and built-in GPS

LtAP-2HnD&FG621-EA

$437.00

Tax included.

5 items available
Select quantity
Description
MikroTik LtAP-2HnD&FG621-EA Compact Heavy-Duty 4G LTE Band 28, with 2.4GHz Wi-Fi Access Point and built-in GPS
MikroTik LtAP-2HnD&FG621-EA Compact Heavy-Duty 4G LTE Band 28, with 2.4GHz Wi-Fi Access Point and built-in GPS. In a world where connectivity knows no boundaries, and the roughest terrain meets the need for reliable networks, affordable location tracking, and other extensive features, one device stands out: the LtAP LTE6 kit! It is a compact wireless access point with built-in GPS in our most durable weatherproof case ever.

The unit comes with two miniPCIe slots, offering many expansion options. For example, you can install an LTE modem of your choice for LTE backup and 5GHz interface to have a dual concurrent 2.4 GHz / 5GHz AP + LTE.

The LtAP has a RS232 serial port, which gives you console access for debugging, as well as full size USB for other devices.

The rugged and extremely durable case with a special wall mounting kit will be perfect for almost any challenge: from public transportation, food trucks or logistics to harsh winter and stormy desert environments. LtAP can handle any temperature from -40 C?° to +70 C?°. It is a perfect solution for tracking vehicles in real time. MikroTik have provided a simple tracking application example in the RouterOS documentation to help you get started. LtAP even has 3 Mini-SIM slots for easy roaming management. Saving your time and money worldwide!

Features
  • Built-in GPS
  • Many powering options (DC jack, POE-in, automotive)
  • Serial port and full size USB for other devices
  • Perfect for cars or outdoor mobile applications
  • Two miniPCIe slots for expansion (LTE, 2.4GHz / 5GHz WiFi radio cards)
  • Three Mini SIM slots
Details
Product code LtAP-2HnD&FG621-EA
Architecture MMIPS
CPU MT7621AT
CPU nominal frequency 880 MHz
CPU core count 2
License level 4
Operating System RouterOS v7
Size of RAM 128 MB
Storage size 16 MB (FLASH)
Tested ambient temperature -40°C to 70°C
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
MIMO DL 2x2
MIMO UL 1x1
LTE FDD bands 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5dBi
PoE in Passive PoE
DC input Voltage 12-30 V
Number of DC inputs 3 (DC jack, PoE-IN, Automotive)
Max power consumption 24 W
Max power consumption without attachments 12 W
10/100/1000 Ethernet ports 1
Number of SIM slots 3 Modem (Mini SIM)
MiniPCI-e slots 2
Serial port RS232
Number of USB ports 1 (Type A)
Max USB current 1A
PCB temperature monitor Yes
Voltage Monitor Yes
GNSS standards GPS
Certification CE, E-MARK, EAC, ROHS
IP 54
Details
Power Supply 24VDC 1.2A PSU
Included K-67 fastening set, 0.35m 4pin Automotive adapter cable
Warranty

1 Year

Brand

MikroTik
