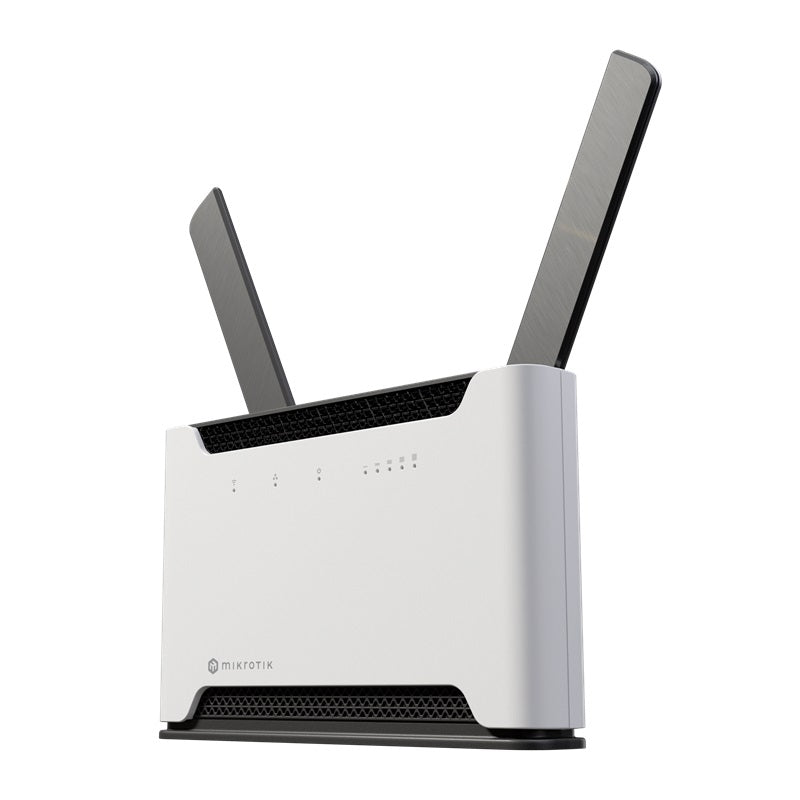

MikroTik Chateau PRO ax Dual Band Wi-Fi 6 Access Point and Gigabit Router

MikroTik Chateau PRO ax Dual Band Wi-Fi 6 Access Point and Gigabit Router

H53UiG-5HaxQ2HaxQ

$456.55

Tax included.

1 items available
Select quantity
Description
MikroTik Chateau PRO ax Dual Band Wi-Fi 6 Access Point and Gigabit Router
MikroTik Chateau PRO ax Dual Band Wi-Fi 6 Access Point and Gigabit Router.

A Wi-Fi 6 home access point for the advanced users – it comes with an exceptionally powerful wireless system and a matching CPU.

Designed with professional users in mind, the Chateau PRO ax Wi-Fi 6 home access point is engineered to squeeze out maximum performance, handling more traffic than ever before. With its unstoppable quad-core ARM CPU running at 2.2 GHz and our latest cutting-edge wireless chip, Chateau PRO ax leverages 4 spatial streams to achieve double the data rate of the usual dual-chain devices, ensuring that your network is always fast, reliable, and ready to support even the most demanding tasks. Remember – you will need a device that supports 4 spatial streams on the other side of the connection to fully utilize the Chateau PRO ax.

With 5x Gigabit Ethernet ports and a USB 3.0 port, you can transform this Chateau into a home media server by plugging in an additional SSD storage. Or you could use the USB to add an LTE modem for backup!

Advanced container setups, bonding, or high-speed 4x4 MIMO wireless setups – that’s where the Chateau PRO ax can really shine! Also, its increased number of radio transceivers provides significantly improved wireless coverage and beamforming performance.

Features
  • Passive PoE-Out on Port 5 (Max 30W with included AU/NZ Power Supply)
  • RouterOS V7, License Level 6
  • Extremely Powerful 2.2 GHz Quad-Core ARM64 CPU
  • 5x Gigabit Ethernet Port
  • 1 GB RAM
  • USB 3.0
Details
Product Code H53UiG-5HaxQ2HaxQ
CPU Quad-Core IPQ-8072A 2208 MHz
CPU architecture ARM 64bit
Size of RAM 1 GB
RAM type DDR3
Storage 128 MB, NAND
Number of 1G Ethernet ports 5
USB port 1 (3.0 type A)
Switch chip model IPQ-8072
Wireless interface model QCN-5024 (2.4 GHz), QCN-5054 (5 GHz)
Wireless 2.4 GHz 802.11b/g/n/ax, 5 GHz 802.11a/n/ac/ax
Antenna gain 2.4 GHz - 5 dBi, 5 GHz - 6 dBi
Dimensions 240 x 156 x 44 mm
Operating system RouterOS v7, License level 6
Operating temperature -40°C to +70°C
Number of DC inputs 1
DC jack input Voltage 18-57 V
PoE-Out Passive PoE up to 57 V (Ether5)
Max out per port output (input < 30 V) 600 mA
Max out per port output (input > 30 V) 500 mA
Max power consumption without attachments 18 W
Max power consumption 48 W (with AU/NZ power supply)
Details
Power Supply PS48V1A Included
Warranty

1 Year

Brand

MikroTik

Restock ETA (if applicable)

Product Details

Specifications

  • MikroTik

  • HeadingMikroTik Chateau PRO ax Dual Band Wi-Fi 6 Access Point and Gigabit Router

Description
MikroTik Chateau PRO ax Dual Band Wi-Fi 6 Access Point and Gigabit Router
MikroTik Chateau PRO ax Dual Band Wi-Fi 6 Access Point and Gigabit Router.

A Wi-Fi 6 home access point for the advanced users – it comes with an exceptionally powerful wireless system and a matching CPU.

Designed with professional users in mind, the Chateau PRO ax Wi-Fi 6 home access point is engineered to squeeze out maximum performance, handling more traffic than ever before. With its unstoppable quad-core ARM CPU running at 2.2 GHz and our latest cutting-edge wireless chip, Chateau PRO ax leverages 4 spatial streams to achieve double the data rate of the usual dual-chain devices, ensuring that your network is always fast, reliable, and ready to support even the most demanding tasks. Remember – you will need a device that supports 4 spatial streams on the other side of the connection to fully utilize the Chateau PRO ax.

With 5x Gigabit Ethernet ports and a USB 3.0 port, you can transform this Chateau into a home media server by plugging in an additional SSD storage. Or you could use the USB to add an LTE modem for backup!

Advanced container setups, bonding, or high-speed 4x4 MIMO wireless setups – that’s where the Chateau PRO ax can really shine! Also, its increased number of radio transceivers provides significantly improved wireless coverage and beamforming performance.

Features
  • Passive PoE-Out on Port 5 (Max 30W with included AU/NZ Power Supply)
  • RouterOS V7, License Level 6
  • Extremely Powerful 2.2 GHz Quad-Core ARM64 CPU
  • 5x Gigabit Ethernet Port
  • 1 GB RAM
  • USB 3.0
Details
Product Code H53UiG-5HaxQ2HaxQ
CPU Quad-Core IPQ-8072A 2208 MHz
CPU architecture ARM 64bit
Size of RAM 1 GB
RAM type DDR3
Storage 128 MB, NAND
Number of 1G Ethernet ports 5
USB port 1 (3.0 type A)
Switch chip model IPQ-8072
Wireless interface model QCN-5024 (2.4 GHz), QCN-5054 (5 GHz)
Wireless 2.4 GHz 802.11b/g/n/ax, 5 GHz 802.11a/n/ac/ax
Antenna gain 2.4 GHz - 5 dBi, 5 GHz - 6 dBi
Dimensions 240 x 156 x 44 mm
Operating system RouterOS v7, License level 6
Operating temperature -40°C to +70°C
Number of DC inputs 1
DC jack input Voltage 18-57 V
PoE-Out Passive PoE up to 57 V (Ether5)
Max out per port output (input < 30 V) 600 mA
Max out per port output (input > 30 V) 500 mA
Max power consumption without attachments 18 W
Max power consumption 48 W (with AU/NZ power supply)
Details
Power Supply PS48V1A Included
Brand

MikroTik

Warranty

1 Year
