• Full Gigabit Ports: 16× 10/100/1000 Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
• Plug and Play: Simple to use and saves time and effort
• Isolation Mode: Isolation Mode allows one-click client traffic separation for higher security and performance
• Loop Prevention: Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping
• Durable Metal Casing: Allows for efficient heat dissipation and long network life

What This Product Does

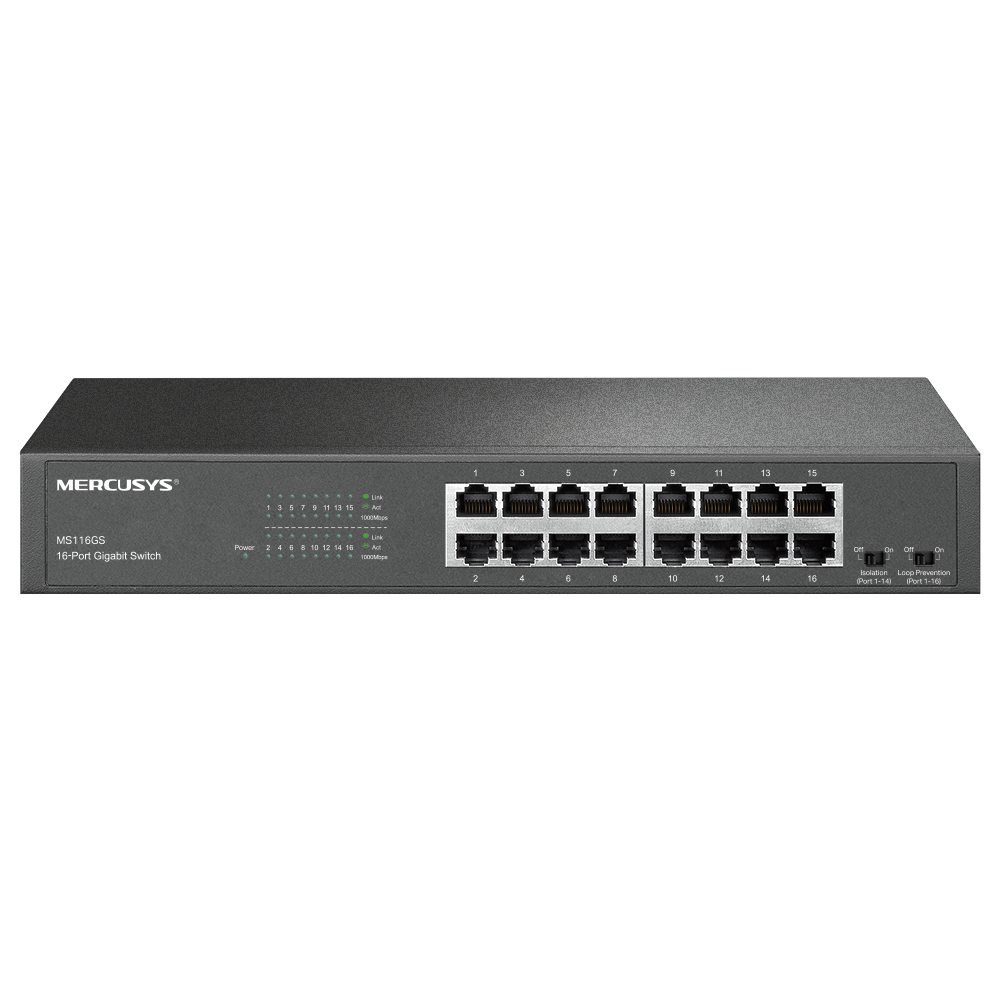

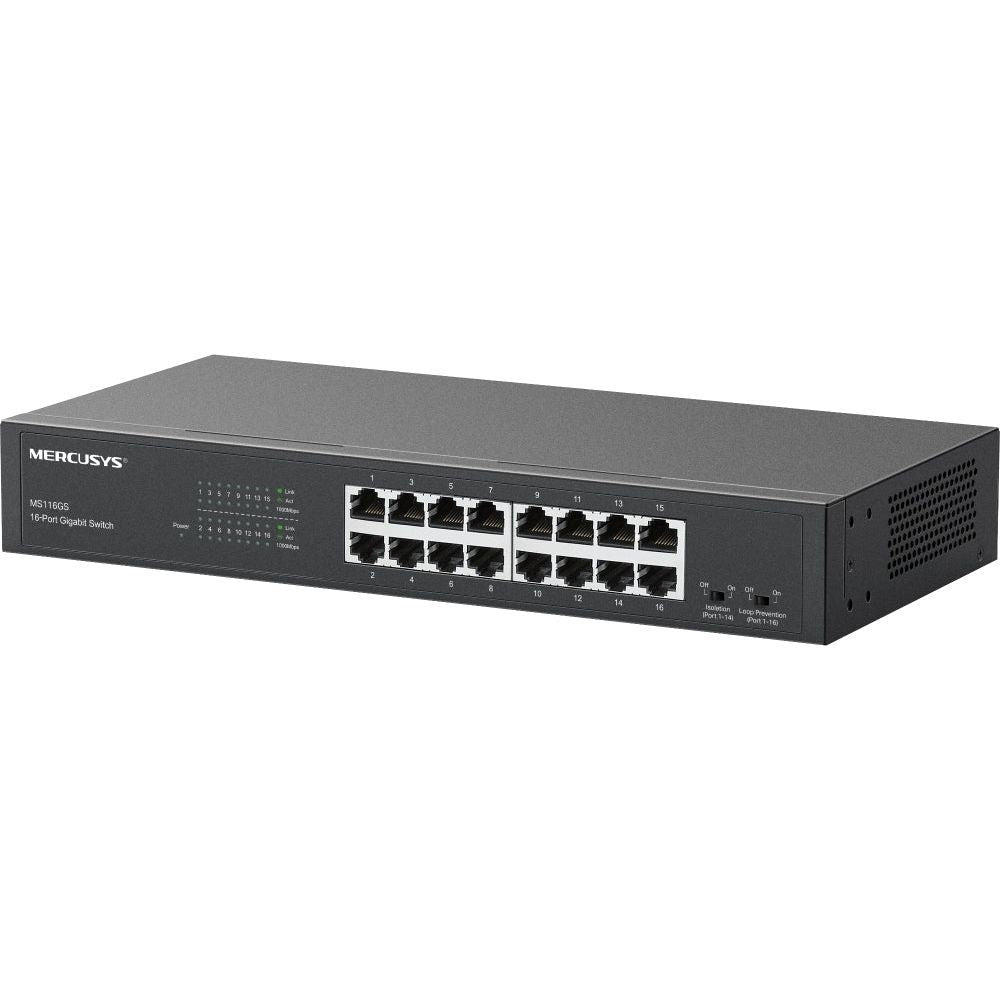

The MS116GS Gigabit Ethernet Switch provides a low-cost and easy-to-use option to expand your wired network with sixteen 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS116GS offers flexible connectivity and is fully compatible with 4K UHD TVs, computers, printers, IP cameras, game consoles, and more. It is ideal for homes, small offices, and dormitories.

Software

Transfer Method

Store and Forward

Advanced Features

802.3X Flow Control, 802.1P/DSCP QoS, Loop Prevention, Isolation

Hardware

Dimensions (W X D X H)

294*140*44mm (11.6*5.5*1.7 in)

Interfaces

16×10/100/1000Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply

100-240VAC, 50/60Hz

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p

Switching Capacity

32 Gbps

LED

Power, Link/Act, 1000Mbps

Mac Address Table

8K

Others

Certifications

CE, RoHS

Environment

Operating Temperature: 0˚C to 40˚C (32˚F to 104˚F)
Storage Temperature: -40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
