• 10 Ports: 8× 10/100 Mbps PoE+ Ports + 2× Gigabit non-PoE Ports
• Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
• High Power PoE+: Support PoE Power up to 30 W for each PoE port and 115 W for all PoE ports*
• 2× Uplink Ports: MS110CMP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
• Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**
• Isolation Mode: One click to divide traffic for specific ports for stability and security
• Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
• Plug and Play: Simple to use and saves time and effort
• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
• Durable Metal Casing: Allows for efficient heat dissipation and long network life

Hardware

Standards and Protocols :  IEEE 802.3x Flow Control

Dimensions : 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

PoE Ports : RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 115 W

Interfaces : 8× 10/100 Mbps Ports + 2× Gigabit Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply : External Power Adapter (Output: 54V/2.2A)

Installation : Desktop / Wall Mount

Data Rates

10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex

Jumbo Frame : 2 KB

Switching Capacity : 5.6 Gbps

MAC Address Table : 2K

Max Power Consumption :

3.79W（220 V / 50 Hz, no PD connected）

130.49W（220 V / 50 Hz, with 115W PD connected

Max Heat Dissipation : 12.92 BTH/h （no PD connected)

444.97 BTH/h（with 115W PD connected）

Others

Package Contents

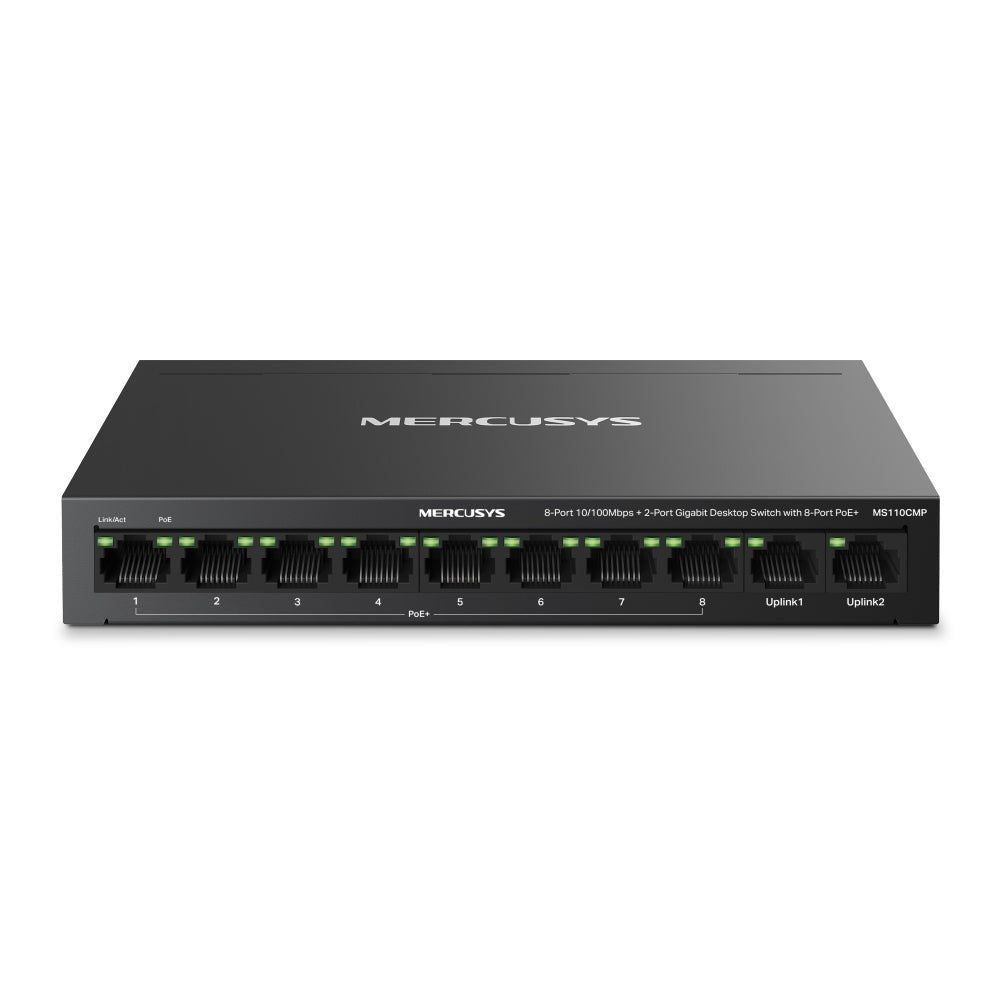

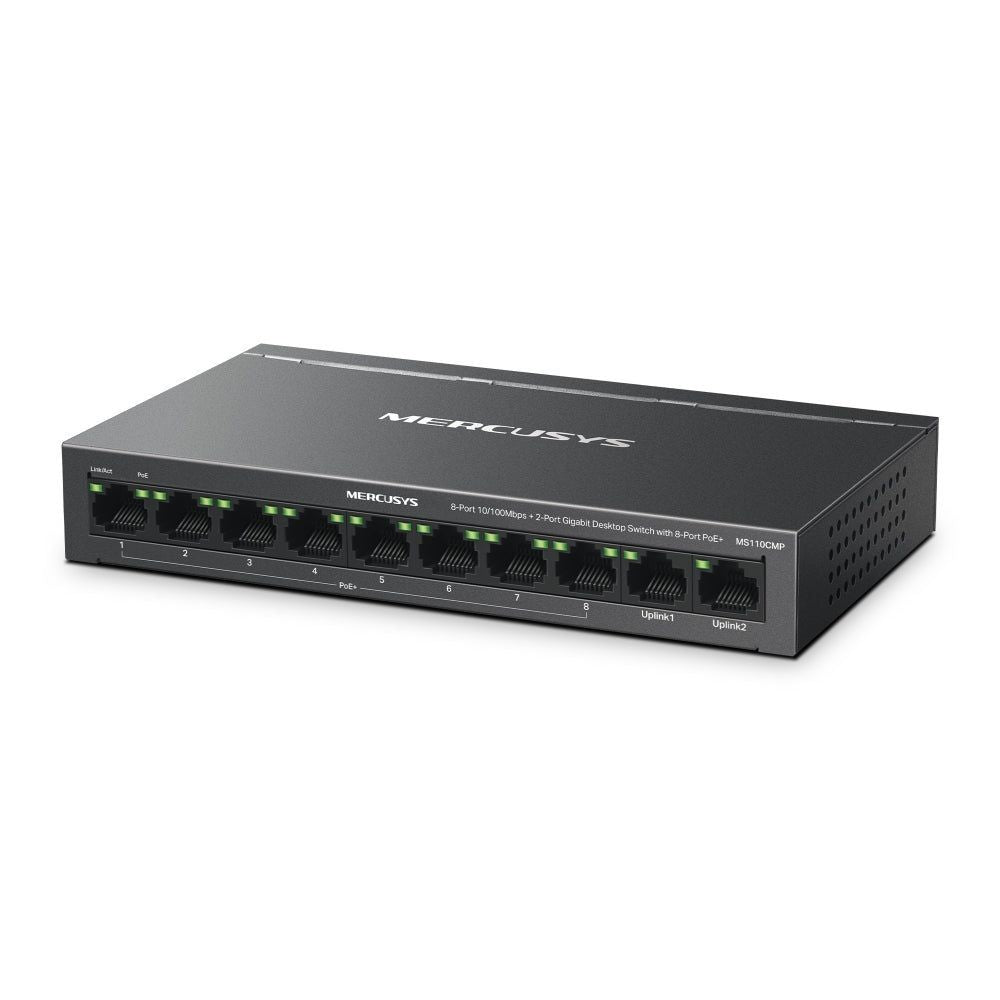

• 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110CMP)
• Power Adapter
• Quick Installation Guide

Environment

Operating Temperature: -10℃~40℃ (14℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
